three phase vfd for industrial motors

A three phase vfd for industrial motors represents a sophisticated electronic device designed to control motor speed and torque by varying the frequency and voltage of the power supplied to the motor. This advanced system converts incoming three-phase AC power into DC power through a rectifier stage, then reconverts it back to AC power at variable frequencies through an inverter stage. The three phase vfd for industrial motors serves as the central nervous system for modern industrial automation, enabling precise control over motor operations while delivering substantial energy savings and operational flexibility. The main functions of this technology include speed regulation across a wide range, soft start capabilities that reduce mechanical stress, torque control for varying load conditions, and motor protection features that prevent damage from electrical faults. Technological features of the three phase vfd for industrial motors encompass microprocessor-based control systems, pulse width modulation techniques for smooth power delivery, built-in communication protocols for industrial networks, and advanced filtering systems to minimize harmonic distortion. These drives incorporate multiple control modes including scalar control for simple applications and vector control for high-performance requirements. Applications span virtually every industrial sector where three-phase motors operate. Manufacturing facilities utilize these drives for conveyor systems, pumps, fans, and compressor operations. The three phase vfd for industrial motors proves invaluable in HVAC systems for commercial buildings, water treatment plants for pump control, and material handling equipment in warehouses. Food processing industries depend on these drives for precise speed control in mixing, packaging, and conveying operations. The textile industry employs them for spinning and weaving machinery, while the oil and gas sector relies on them for pipeline pumps and drilling equipment. Mining operations benefit from their use in crushers, mills, and ventilation systems, demonstrating the universal applicability of this essential industrial technology.

New Product Recommendations

VIEW DETAILS

Automatic Voltage Regulator 380V 15/20/40/50/60/80/100kVA TNS/SVC Three Phase Stabilizer Industrial Voltage Regulator

VIEW DETAILS

High Quality Single/Three Phase VFD 220V 380V AC Drive 630KW Variable Frequency Inverter PWM Control for AC Motor Compressor

VIEW DETAILS

High Performance 380V 75KW IP65 50/60Hz Variable Frequency Drive VFD AC Pump Single Three Phase 220V Nominal Voltage RS-485

VIEW DETAILS

3-Phase AC Intelligent Motor Drive Built-in Bypass Soft Starter Module 11KW Triple Output 50-60HZ RS485 Communication IP20

Implementing a three phase vfd for industrial motors delivers transformative benefits that directly impact your bottom line and operational efficiency. Energy savings stand as the most compelling advantage, with typical installations reducing electricity consumption by 20 to 50 percent depending on the application. When motors run at full speed constantly but the process requires varying output, you waste massive amounts of energy. The three phase vfd for industrial motors eliminates this waste by matching motor speed precisely to actual demand. Consider a pump or fan application where traditional throttling or damper control wastes energy fighting against the motor. The drive adjusts speed smoothly, consuming only the power needed for current conditions. This translates directly into lower utility bills month after month, often paying for the drive installation within 12 to 24 months. Equipment longevity improves dramatically because the three phase vfd for industrial motors eliminates harsh starting conditions. Traditional across-the-line motor starts subject mechanical components to severe stress, causing wear on bearings, couplings, belts, and gears. Soft start functionality gradually accelerates the motor, extending equipment life by years and reducing maintenance costs significantly. You will notice fewer unexpected breakdowns and longer intervals between scheduled maintenance. Process control precision reaches new levels with variable speed capability. Whether you need to maintain exact pressure in a hydraulic system, control flow rates in a chemical process, or synchronize multiple motors in a production line, the three phase vfd for industrial motors provides the accuracy required. This precision reduces product defects, minimizes material waste, and improves overall quality. Operational flexibility allows you to adapt quickly to changing production requirements without mechanical modifications. Need to increase output for a rush order? Simply adjust the speed setting. Running a lighter load? Reduce speed to save energy. The three phase vfd for industrial motors accommodates different products, recipes, or operating conditions through simple parameter changes. Power quality improvements benefit your entire electrical system. These drives include power factor correction that reduces reactive power demand, potentially lowering utility charges and improving voltage stability. Built-in motor protection features detect overcurrent, overvoltage, undervoltage, and overheating conditions, automatically protecting your valuable motor assets. Remote monitoring and control capabilities integrate seamlessly with modern industrial networks, enabling centralized supervision and data collection for predictive maintenance strategies.

Tips And Tricks

Mar

Voltage Regulator Maintenance: Tips to Keep It Running Smoothly

In the world of industrial automation and power distribution, equipment reliability is the foundation of profitability. Facilities invest heavily in sensitive machinery, automated production lines, and advanced control systems, all of which require a...

Mar

How Variable Frequency Drives Improve Motor Performance and Lifespan

Electric motors are the workhorses of modern industry, powering everything from HVAC systems and pumps to conveyors and compressors. Yet running these motors at fixed speeds — regardless of actual load demand — wastes significant energy a...

May

How to Install an Automatic Voltage Regulator: Step-by-Step Guide

Fluctuations within low-voltage electrical distribution networks present a continuous hazard to high-value industrial machinery. Deploying an Automatic Voltage Regulator is the most effective strategy for neutralizing voltage sags, surges, and transi...

May

VFD Drive Sizing: How to Choose the Right Capacity for Your Motor

Selecting the correct capacity for a Variable Frequency Drive is one of the most critical steps in designing an efficient, reliable industrial motor control system. A properly sized VFD Drive ensures optimal energy consumption, prevents unnecessary e...

Get a Free Quote

Our representative will contact you soon.

Mobile/WhatsApp

Name

Message

0/1000

three phase vfd for industrial motors

variable frequency drives for sale

adjustable frequency ac drive

vfd motor speed control

vfd for water pump control

custom vfd solutions

variable frequency drive quotation request

Unmatched Energy Efficiency That Reduces Operating Costs

The three phase vfd for industrial motors revolutionizes energy management in industrial facilities by eliminating the fundamental inefficiency of fixed-speed motor operation. Traditional motor installations run at constant speed regardless of actual load requirements, forcing operators to use mechanical throttling devices, dampers, or bypass valves to control output. These methods waste enormous amounts of energy because the motor works at full capacity while mechanical restrictions fight against that output. The three phase vfd for industrial motors solves this problem elegantly by adjusting motor speed to match real-time demand, following the affinity laws where power consumption decreases with the cube of speed reduction. A motor running at 80 percent speed consumes only about 51 percent of full-speed power, and at 50 percent speed, power consumption drops to approximately 12.5 percent. This mathematical relationship creates dramatic savings in applications with variable loads like pumps, fans, and compressors that dominate industrial energy consumption. Real-world installations consistently demonstrate 30 to 50 percent energy reductions in HVAC applications, 20 to 40 percent savings in pumping systems, and 15 to 35 percent reductions in compressed air systems. The three phase vfd for industrial motors also improves power factor, which appears as apparent power on utility bills. Many industrial facilities pay demand charges based on peak power consumption, and poor power factor inflates these charges substantially. The drive corrects power factor naturally through its power conversion process, potentially eliminating power factor penalties and reducing demand charges. Advanced energy optimization algorithms built into modern three phase vfd for industrial motors continuously analyze operating conditions and automatically adjust parameters for maximum efficiency. Some models include energy monitoring features that track consumption patterns, identify optimization opportunities, and generate reports showing actual savings achieved. These capabilities transform the drive from a simple speed control device into a comprehensive energy management tool that supports sustainability initiatives while directly improving profitability through reduced operating expenses.

Superior Motor Protection And Extended Equipment Lifespan

Protecting valuable motor assets and extending equipment life represents a critical advantage that makes the three phase vfd for industrial motors indispensable for maintenance-focused operations. Motors typically fail due to electrical stress, thermal damage, or mechanical wear, and traditional starting methods accelerate all these failure modes. Across-the-line starting draws 600 to 800 percent of full load current, creating massive electromagnetic forces that stress motor windings, generate excessive heat, and cause voltage sags affecting other equipment. The three phase vfd for industrial motors eliminates these destructive starting transients through soft start functionality that gradually accelerates the motor over a configurable time period. Current draw during acceleration stays controlled, typically limited to 150 percent of rated current or less, dramatically reducing electrical stress on motor windings and minimizing voltage disturbances on the power system. This gentle acceleration extends insulation life by preventing thermal cycling damage and reduces the risk of turn-to-turn shorts that cause catastrophic motor failure. Mechanical components benefit equally from controlled acceleration and deceleration. Sudden starts create shock loads that damage gears, shear couplings, snap belts, and cause bearing damage through impact loading. The three phase vfd for industrial motors allows you to configure acceleration and deceleration ramps that match your mechanical system's characteristics, eliminating shock loads entirely. Bearings last significantly longer when protected from impact loads and run smoother at optimized speeds rather than fixed high speeds that may exceed the mechanical sweet spot. Comprehensive protection features built into the three phase vfd for industrial motors monitor operating conditions continuously and respond instantly to fault conditions. Overcurrent protection prevents winding damage from overloads, ground fault detection identifies insulation failures before they cause fires, and thermal modeling algorithms track motor temperature based on load history. Phase loss detection prevents single-phase operation that would quickly destroy a three-phase motor, and undervoltage protection guards against brownout conditions. Many drives include bearing wear monitoring that analyzes vibration signatures to predict bearing failure before it occurs, enabling condition-based maintenance strategies that reduce downtime and maintenance costs while maximizing equipment availability.

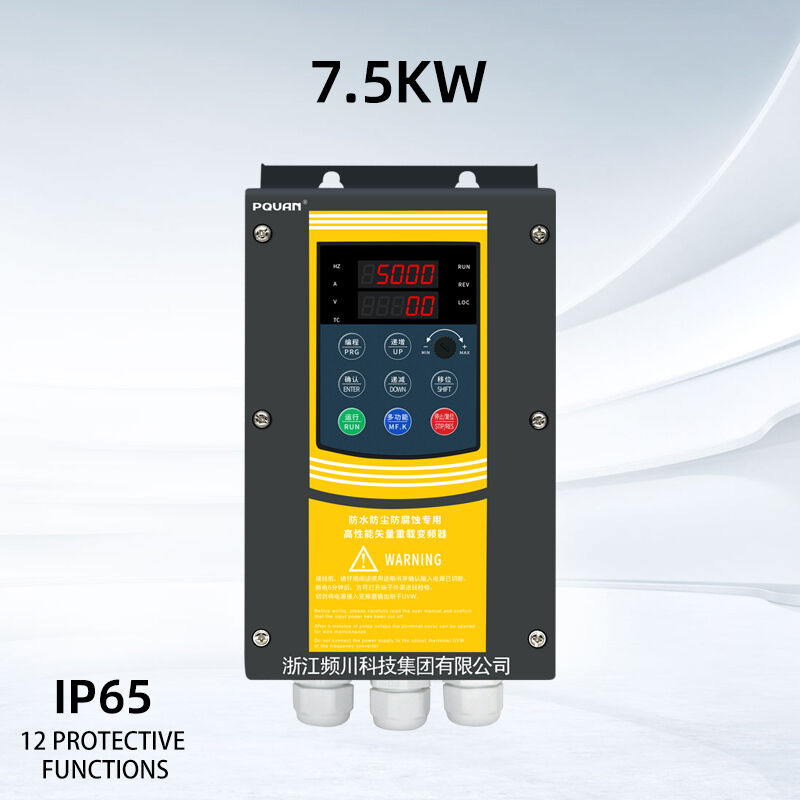

Precise Process Control And Operational Flexibility

Modern industrial processes demand precision and adaptability that fixed-speed motor operation simply cannot deliver, making the three phase vfd for industrial motors essential for competitive manufacturing and processing operations. Speed control accuracy of 0.01 percent or better enables applications requiring exact synchronization, precise tension control, or specific flow rates. Consider a packaging line where multiple conveyors must maintain exact speed relationships to prevent jamming or gaps between products. The three phase vfd for industrial motors coordinates multiple drives through communication networks, maintaining perfect synchronization even as line speed changes to accommodate different products or production rates. Closed-loop control capabilities integrate feedback from pressure sensors, flow meters, temperature probes, or position encoders to automatically maintain setpoints regardless of load variations or external disturbances. A pump system maintaining constant pressure despite varying demand automatically adjusts speed as users open or close valves, eliminating pressure fluctuations that reduce product quality or cause equipment damage. The three phase vfd for industrial motors processes feedback signals in milliseconds, responding faster than any mechanical control system could achieve. Torque control modes enable applications where maintaining specific force matters more than achieving exact speed. Winding operations for textiles, paper, or wire require constant tension despite changing roll diameter as material accumulates. Vector control algorithms in the three phase vfd for industrial motors calculate and deliver precise torque continuously, producing uniform product quality throughout the process. Multiple motor coordination becomes straightforward when drives communicate through industrial networks. Master-follower configurations allow one drive to control others, maintaining exact speed ratios or implementing complex motion profiles. Flying shear applications that cut moving material to length, packaging machines that seal moving packages, or printing presses that register multiple colors all depend on the precise coordination that networked three phase vfd for industrial motors provide. Recipe management and programmable operation sequences stored within drives enable rapid changeovers between products without mechanical adjustments. Different products requiring different speeds, acceleration rates, or operating patterns switch instantly through simple parameter loading, reducing downtime and increasing production flexibility that helps you respond to customer demands and market opportunities.
