PQUAN Technology PQ580-SF series of high-protection inverters represents a cutting-edge solution for demanding applications in harsh environments (such as those with high levels of dust, heavy metals in coal mines, smelting operations, humid conditions,
chemical plants, etc.). Boasting an IP65 protection rating (waterproof, moisture-proof, dustproof, and corrosion-resistant),advanced vector control, and excellent communication bus support with RS-485 (MODBUS) functionality, this inverter offers unparalleled reliability and efficiency for three-phase permanent magnet synchronous and three-phase asynchronous motor drives.
Its user-friendly interface and comprehensive protection features make it a preferred choice for various industries, including fans, pumps, and industrial automation.

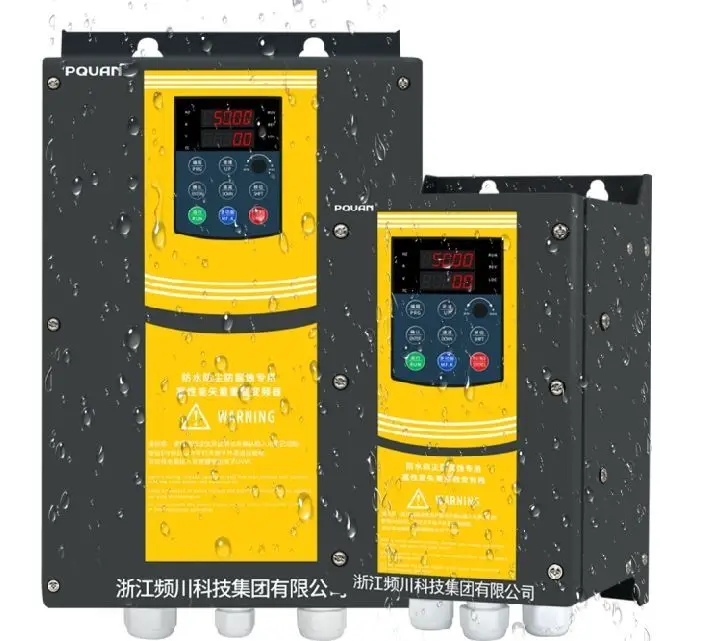

The Three Phase 380V VFD AC IP65 Frequency Drive Converter 3.7kw 5.5kw 7.5kw 11kw 18.5kw 30KW 45KW 50/60hz 220v 440v for Motors represents a comprehensive solution for industrial motor control applications across diverse international markets, engineered to meet the demanding requirements of modern manufacturing facilities, processing plants, and automated systems. This advanced variable frequency drive series delivers exceptional performance capabilities through sophisticated power electronics technology, incorporating robust three-phase AC power conversion that enables precise motor speed control and energy optimization across multiple power ratings.

Three Phase 380V VFD AC IP65 Frequency Drive Converter 3.7kw 5.5kw 7.5kw 11kw 18.5kw 30KW 45KW 50/60hz 220v 440v for Motors manufacture

Product Paramenters

Function &Parameter:
• Supports Vector speed control (IMSVC) of asynchronous motor,Vector speed control (FMSVC) of synchronous motor

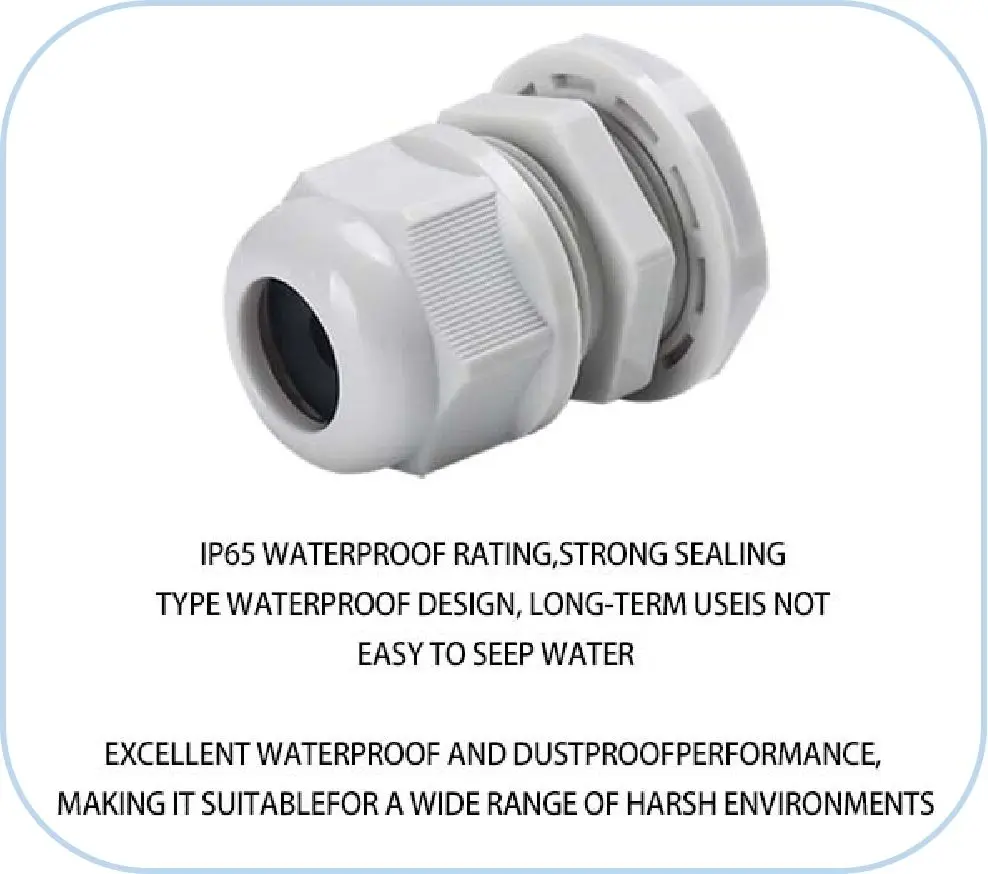

• Waterproof PG heads as wire holes,designed for harsh environments.
• VFD support V/F control or SVC open circuit vector control mode
• VFD Employs the latest generation IGBT power modules for quiet operation.
• The inverter features an integrated G/P design for easy customer applicability.
• VFD output frequency Max 3000Hz.
• VFD operates with a carrier frequency of 0.5 to 15KHz
• VFD Torque boost function of the electric motor by up to 30%
• VFD has a Standard built-in brake unit for 0.4KW- 30KW
• VFD Built-in PID, PLC, AVR, JOG, Timers, protections, EMC filter
• VFD has safety function EMS emergency machine stop
• VFD MODBUS support standard RS-485 physical communication interface
• VFD has 6 digital inputs, including 1 high-speed 20KHz pulse; 2 analog inputs are integrated input 0-10V and 4-20 mA input terminal
• VFD has 1 digital , 2 analog output support 0~20mA or 0~10V and 2 relay output terminal

Main Features:

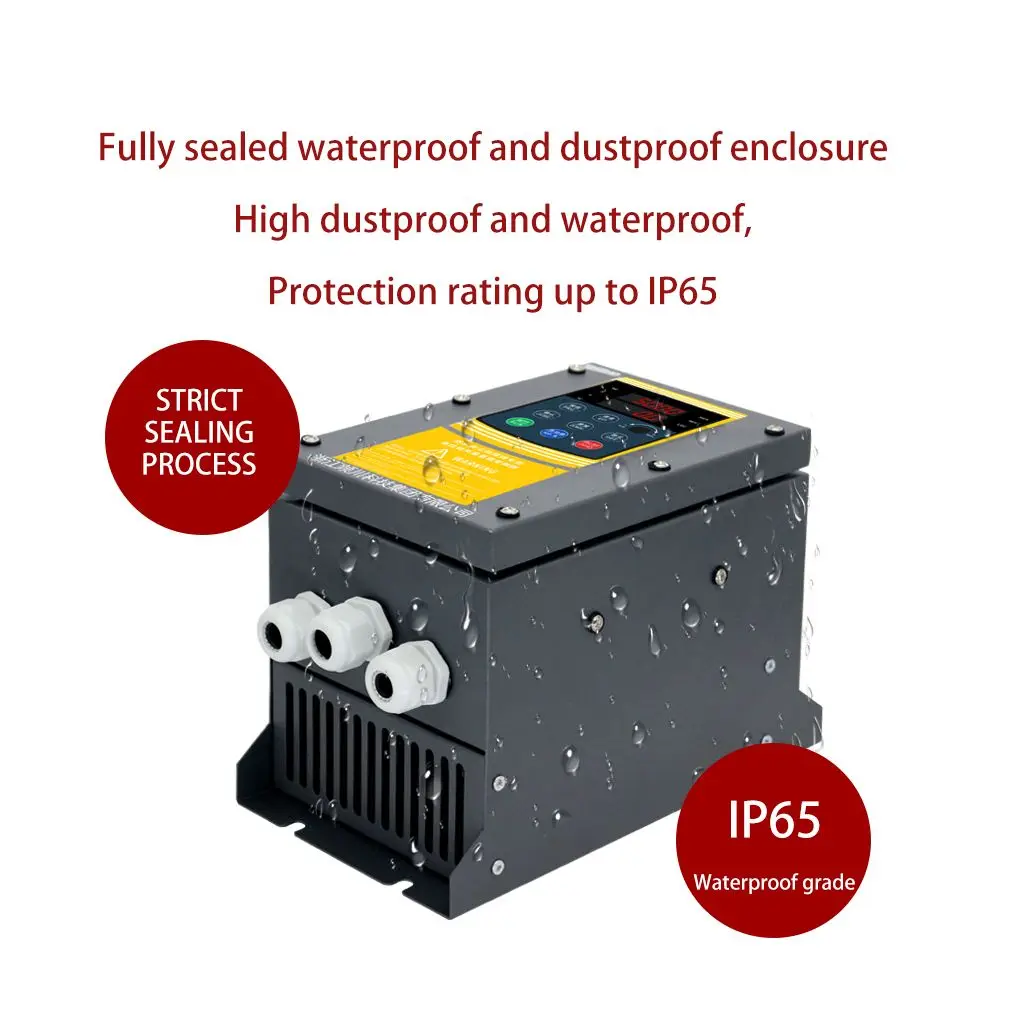

• Excellent waterproof and dustproof performance, making it suitable for a wide range of harsh environments.
• High protection level fully sealed frequency converter using an IP67 high protection level fan.
• The entire inverter series features a sheet metal chassis with a spray-painted finish, providing enhanced safety, corrosion resistance, and a longer service life.
• Supports PT100/PT1000 temperature analog signal inputs.
• Incorporates high-quality, long-life capacitors rated at 105ºC for 10,000 hours of operation.
• Utilizes waterproof fans, stainless steel fan guards, and an independent cooling duct design for efficient heat dissipation and simplified cleaning and maintenance.
• Provides 0.1-second output with 200% current curve protection for increased torque output.
• Features integrated PID and PLC functionality (with multi-speed control achievable via PLC or control ports using the DI1-DI6 multi-function digital inputs), simplifying the implementation of intelligent control systems and reducing time and hardware costs for users.
• Offers comprehensive protection against phase loss, overvoltage, overcurrent, and both motor and drive failures.
• Delivers powerful motor control performance with support for both SVC sensorless vector control and V/F control.
• Provides thousands of configurable parameters for extensive functionality.
• Operates within a wide voltage range of -15% to +20%, expanding its applicability.

Technical Specification：

Input Voltage (V)	1PH AC220V ±10% 50~60Hz; 3PH AC220V ±10% 50~60Hz; 3PH AC380V ±15% 50~60Hz
Output Voltage(V)	3PH AC 0~input voltage; 3PH AC 0~input voltage; 3PH AC 0~input voltage
Power Range (KVA)	0.4KW~2.2KW; 0.4KW~75KW; 0.75KW~700KW
Output Frequency Range	0~500Hz
Control Mode	V/F, SVC1, SVC2
Starting Torque	0.5Hz/180%(SVC)
Overload Capability	G type: 150% rated current 60s,180% rated current 3s P type: 120% rated current 60s,150% rated current 3s
Communication port	RS-485:Modbus
Protection level	IP65
Cooling method	Forced air cooling
Fault Protection	Motor shortcircuit detection at poweron, input/output phase loss protection, over current protection, overvoltage protection, undervoltage protection, overheat protection and overload protection.

Three Phase 380V VFD AC IP65 Frequency Drive Converter 3.7kw 5.5kw 7.5kw 11kw 18.5kw 30KW 45KW 50/60hz 220v 440v for Motors details

Multi-mode adjustment
0-500Hz, Adjustable

Double-line display
Multi-function, double line display

Free speed regulation
Easy adjustment, flexible control

Protective Motor
Smooth start, motor stable operation

Save Energy and electricity
Low frequency torque, save unnecessary energy consumption

Multiple Protection
The safety guarantee, protects the escort for the equipment

Product Comparison:

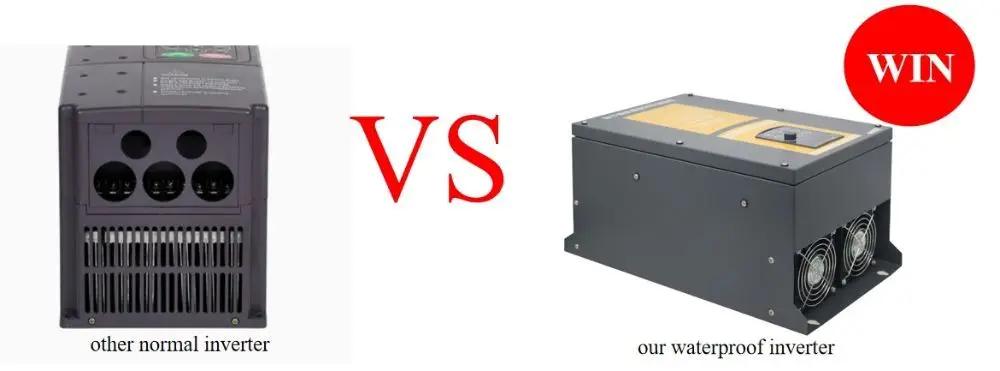

The difference between a normal inverter and a fully sealed waterproof inverter in poor environments
Comparative items	Normal inverter	Sealed waterproof inverter
IP Class	Usually IP20	IP65
Working life	Poor environment generally 2-3 months	3-5 years in a poor environment is not a problem
Installation method	Poor environment must be installed in a cabinet	Can be installed in the cabinet or exposed
Working environment	Suitable for cleaner and drier applications	Suitable for poor environments
Replacement frequency	Poor environment replaced more than three times a year	Poor environment replaced once every 3-5 years

Protection Function:

• Soft Start / Soft Stop

• Overload Protection

• Overheat Protection

• Overvoltage Protection

• Load Loss Protection

• Undervoltage Protection

• Overcurrent Protection

• Phase Loss Protection

• Constant Torque Load

• Ground Fault Protection

• Short Circuit Protection

• Stall Protection

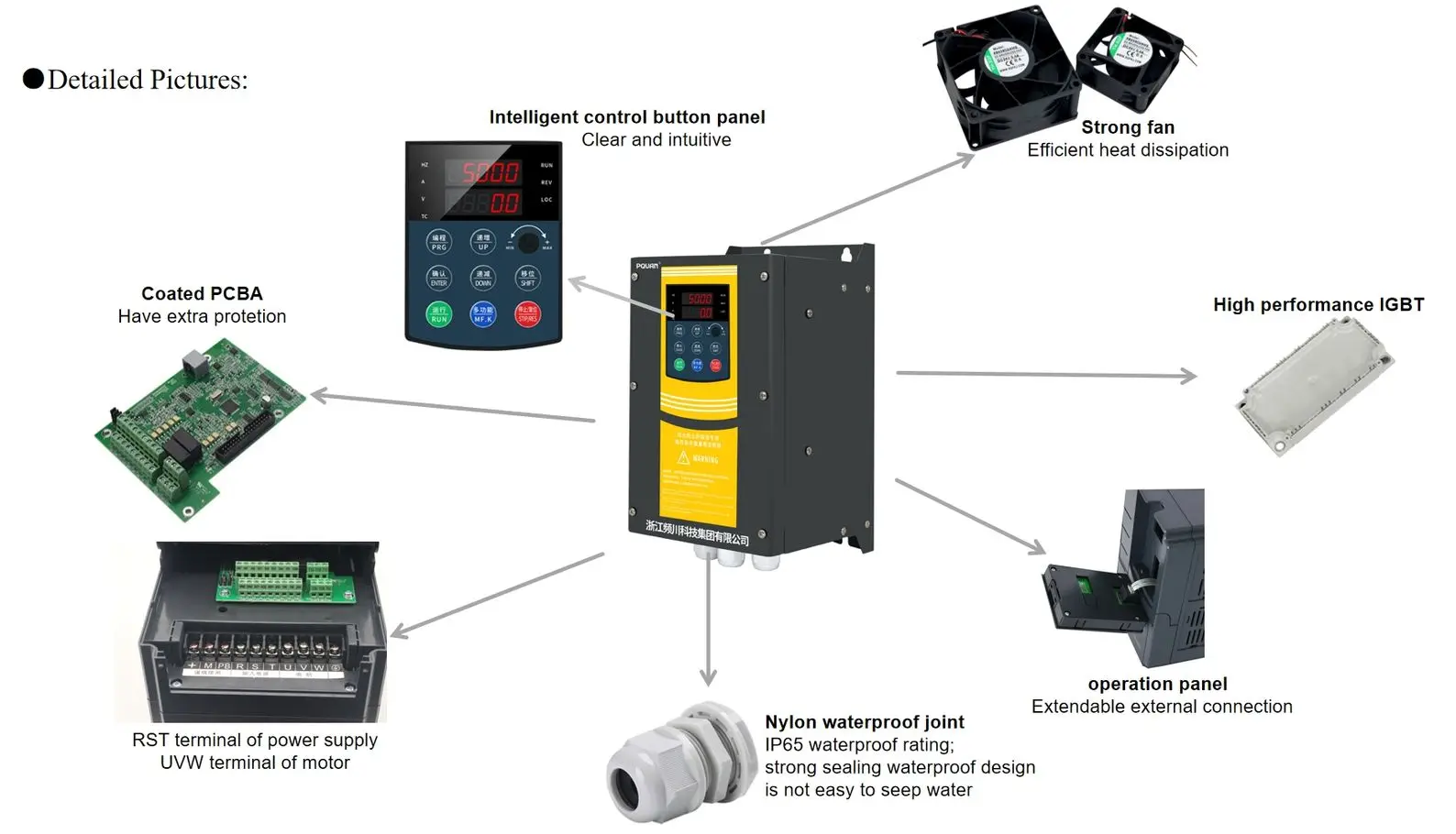

Details Images

Three Phase 380V VFD AC IP65 Frequency Drive Converter 3.7kw 5.5kw 7.5kw 11kw 18.5kw 30KW 45KW 50/60hz 220v 440v for Motors supplier

Three Phase 380V VFD AC IP65 Frequency Drive Converter 3.7kw 5.5kw 7.5kw 11kw 18.5kw 30KW 45KW 50/60hz 220v 440v for Motors factory

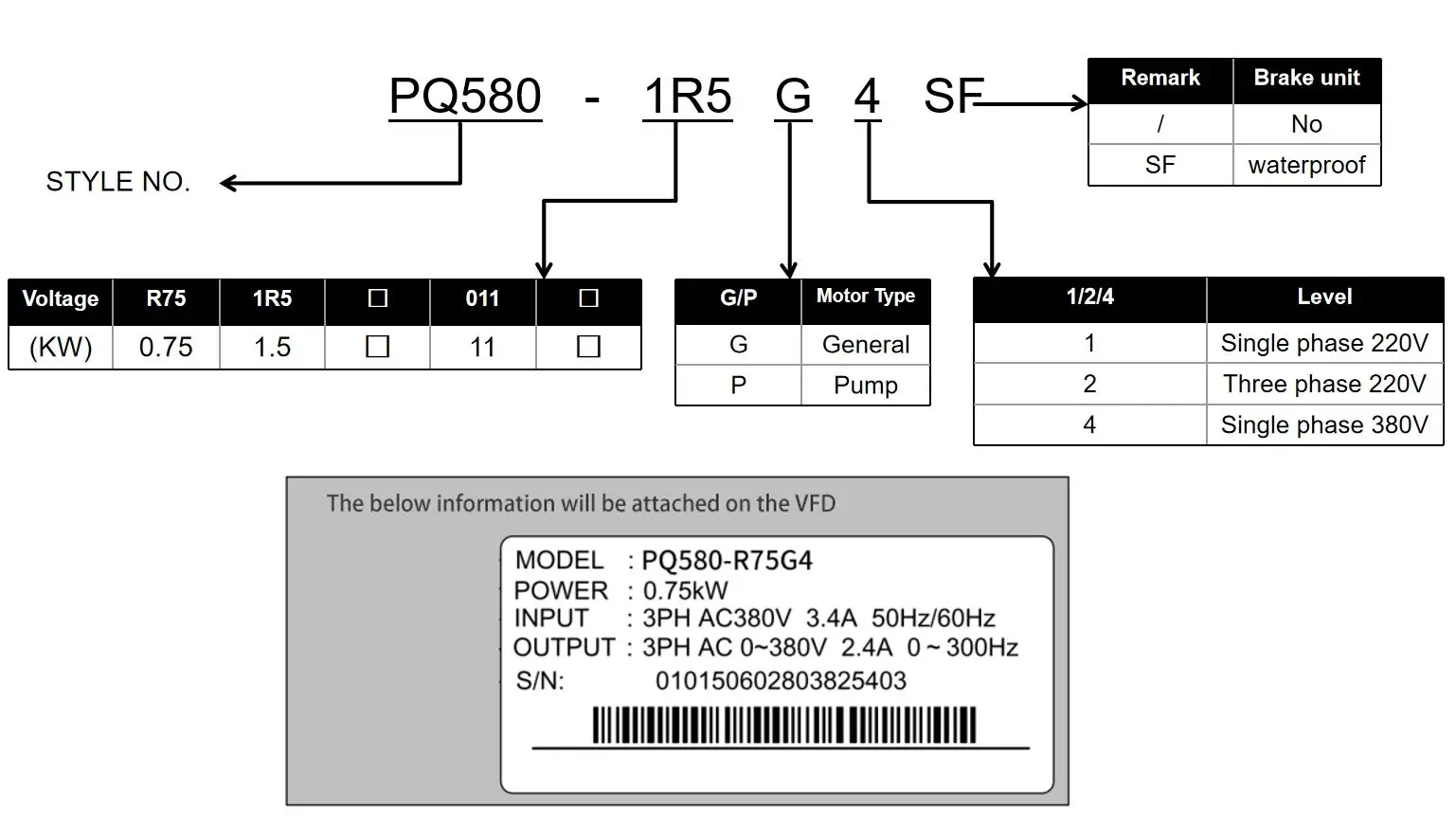

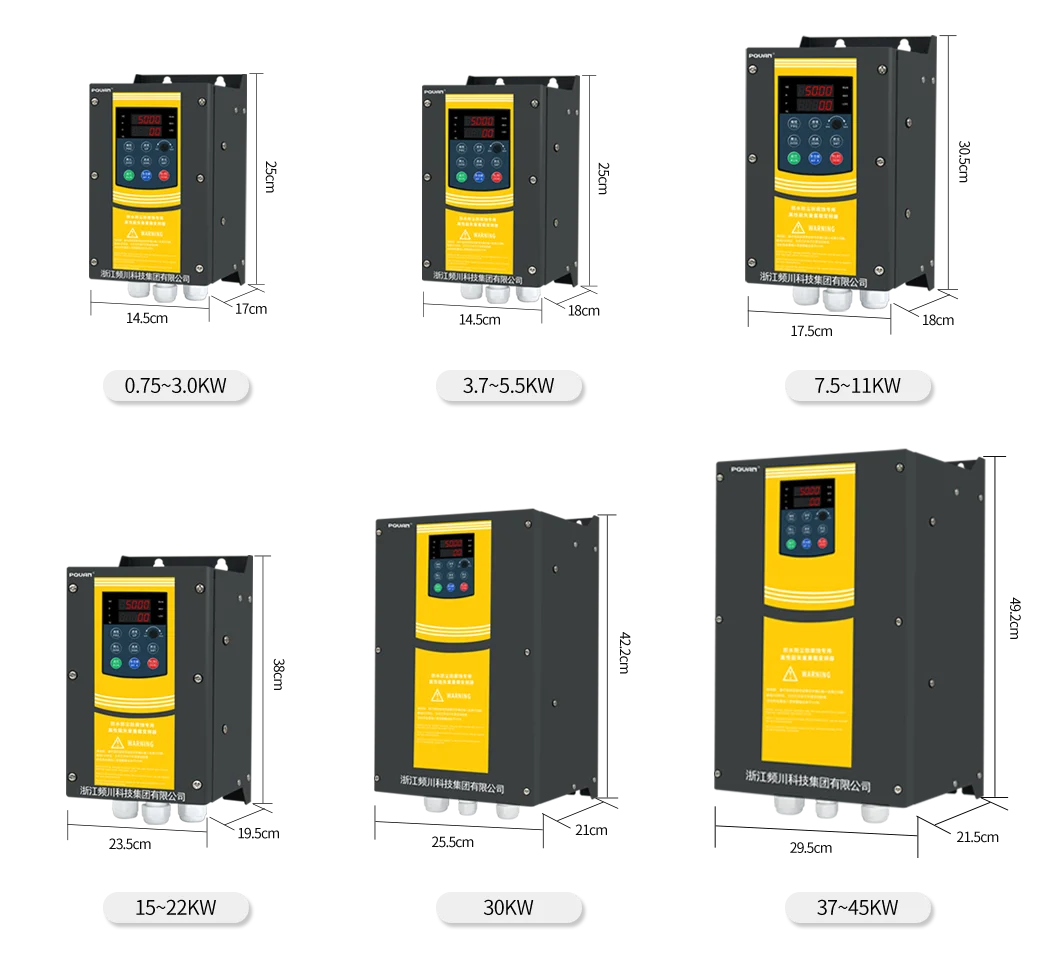

Specifications and Model

Product Name:	PQ580-SF-FIG.1	PQ580-SF-FIG.2	PQ580-SF-FIG.3
Porduct Volotage:	0.75/1.5/2.2/3.0KW	3.7/5.5 KW	7.5/11 KW

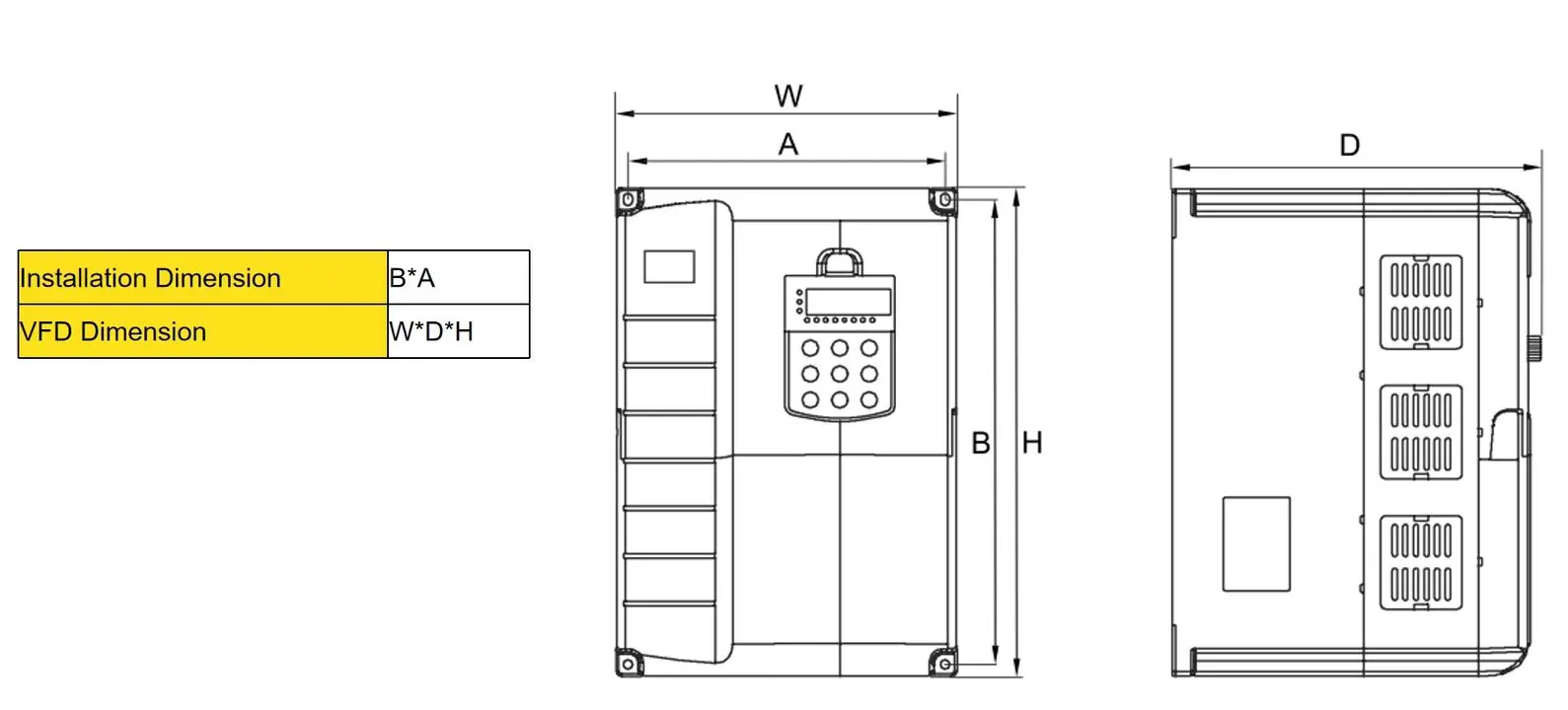

Installation Dimension:	235*70mm	235*70mm	290*100mm
Mounting hole diameter:	Φ6	Φ6	Φ6

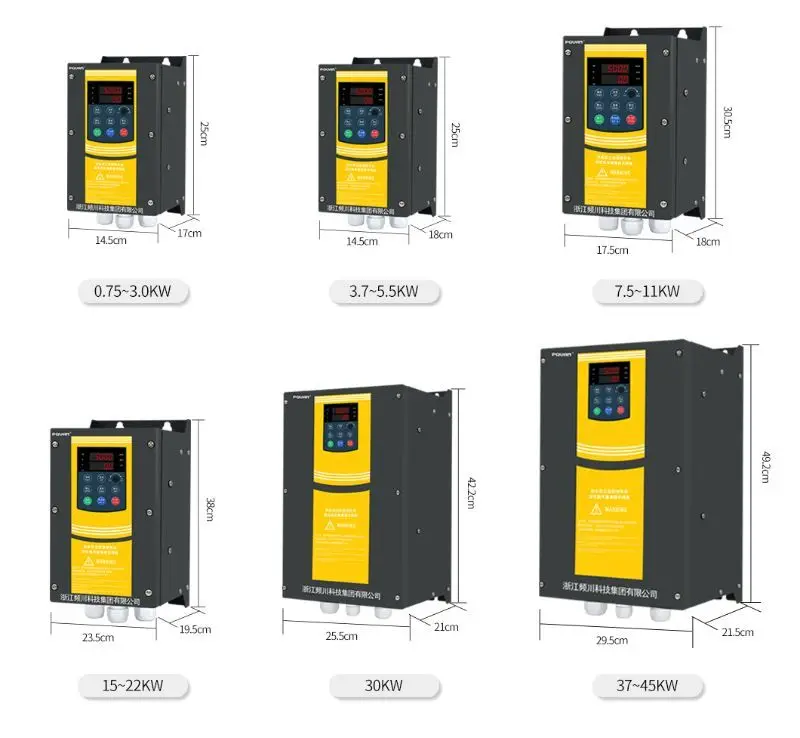

VFD Size:	145170250mm	145180250mm	175180305mm

Product Name:	PQ580-SF-FIG.4	PQ580-SF-FIG.5	PQ580-SF-FIG.6
Porduct Volotage:	15/18.5/22 KW	30 KW	45 KW
Installation Dimension:	365*160mm	407*180mm	477*220mm
Mounting hole diameter:	Φ6	Φ6	Φ6
VFD Size:	235195380mm	255210422mm	295215492mm

item		Specifications
Basic Functions	Motor Control Mode	V/F control
				Vector speed control (IMSVC) of asynchronous motor
				Vector speed control (FMSVC) of synchronous motor
		Maximum Frequency	Vector Control:0~300Hz V/F Control:0~3000Hz
		Carrier Frequency	0.5kHz~15kHz; the carrier frequency will be automatically adjusted according to the load characteristics.
		Input Frequency Resolution	Digital Setting: 0.1Hz
		Input Frequency Resolution		Analog Setting: 0.01V corresponding maximum frequency ×0.025%
		Control Mode	V/F, SVC1, SVC2
		Startup Torque	0.5Hz/180%(SVC)
		Speed Range	1:100(SVC);
		Steady-state Speed Accuracy	±0.5%(SVC)
		Torque Control Accuracy	±5%(SVC)
		Overload Capability	G type: 150% rated current 60s,180% rated current 3s
		Overload Capability		P type: 120% rated current 60s,150% rated current 3s
		Torque Boost	Automatic Torque Boost, Manual Torque Boost 0.1%~30.0%
		V/F Curve	Line Type,Multi-point Type, N-power V/F curve
		Ramp mode	Straight-line ramp; S-curve ramp;
		Ramp mode		Four groups of acceleration/deceleration time with the range of 0.0 to 3200.0s.
		DC Brake	DC Brake Frequency:0.00Hz to maximum frequency.
				Brake time: 0.0s to 36.0s
				Braking operation current value: 0.0%~100.0%
		Simple PLC multi-speed operation	Realize up to 16-speed operation through built-in PLC or control terminal.
		Onboard PID	It realizes process-controlled closed loop control system easily.
		Automatic Voltage Regulator (AVR)	Automatically regulates the output voltage to maintain a constant level regardless of grid voltage fluctuations.
		Over-voltage/current Stall Control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current.
		Fault current limiter	Protect the inverter by minimizing overcurrent conditions.
		Torque limiting and control	It can limit the torque automatically and prevent frequent over current tripping during the running process.
Tailored options	Excellent performance	Implement motor control using advanced current vector control.
		Fault-tolerant:	Regenerative braking during a power sag enables the inverter to sustain operation.
		Timing Control	Timing control function:set time range 0.0~3200.0Min
		Bus Support	RS-485:Modbus
Running	Running Command Source	Operation panel/Control terminals/Serial communication port. You can perform switchover between these sources in various ways.
		Frequency Source	Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting.
		Auxiliary frequency source	10 kinds of auxiliary frequency sources. Flexible realization of auxiliary frequency fine-tuning and frequency synthesis.

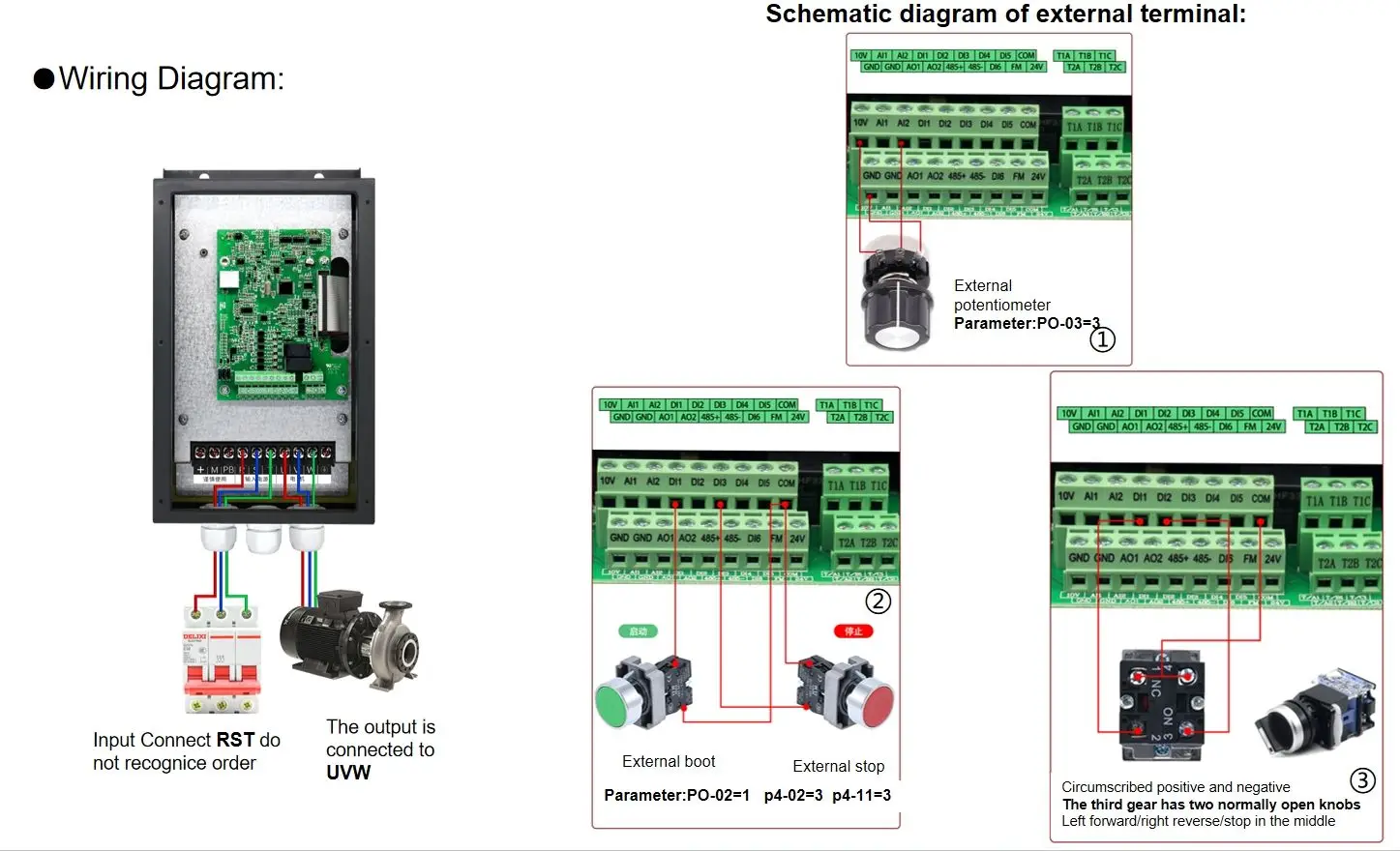

		Control Signal Input Terminal	6 digital input terminals, one of which supports up to 20 kHz high-speed pulse input.
		Control Signal Input Terminal		2 analog input terminals, one of which only supports 0-10 V voltage input and the other supports 0-10 V voltage input or 4-20 mA current input.
		Control Signal Output Terminal	1 digital output terminal; 1 relay output terminal;
		Control Signal Output Terminal		2 analog output terminal that supports 0-20 mA current output or 0-10 V voltage output.

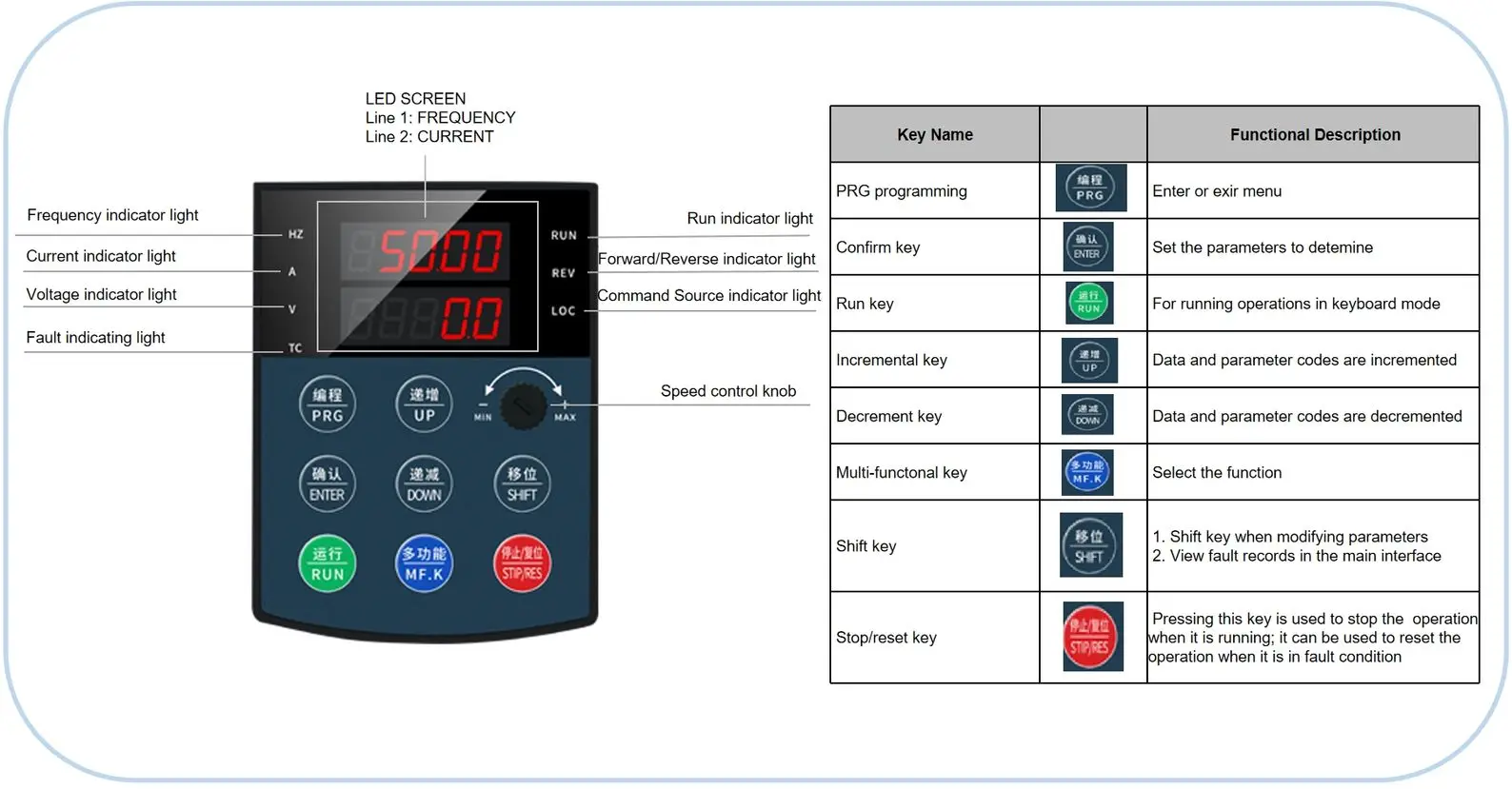

Control panel	LED DISPLAY	Five-digit numerical readout
		Key locking and function selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
		Protection Function	Motor short-circuit detection at power-on, input/output phase loss protection, over current protection, overvoltage protection, under voltage protection, overheat protection and overload protection.
Environment	Installation environment	Inside, avoid direct sunlight, salt, dust, corrosive or flammable gas, smoke, steam.
		Altitude	Below 1000 meters above sea level. (reduce the load level when used above 1000 meters above sea level)
		Ambient Temperature	-10 ºC to +40 ºC (Derating use when under ambient temperature of 40 ºC to 50 ºC)
		Humidity	Less than 95%RH, without condensing
		Vibration	Less than 5.9m/s (0.6g)
Structure	Protection level	IP65
		Cooling method	Forced air cooling
		Installation method	Wall-mounted, floor-standing electric control cabinet.

Application:

Metal processing ,digital machine tool, wire drawing bench and other mechanical equipment . paper making equipment ,chemistry industry ,medicine industry and textile industry ,all kinds of fans and pumping load .etc
