Products Description

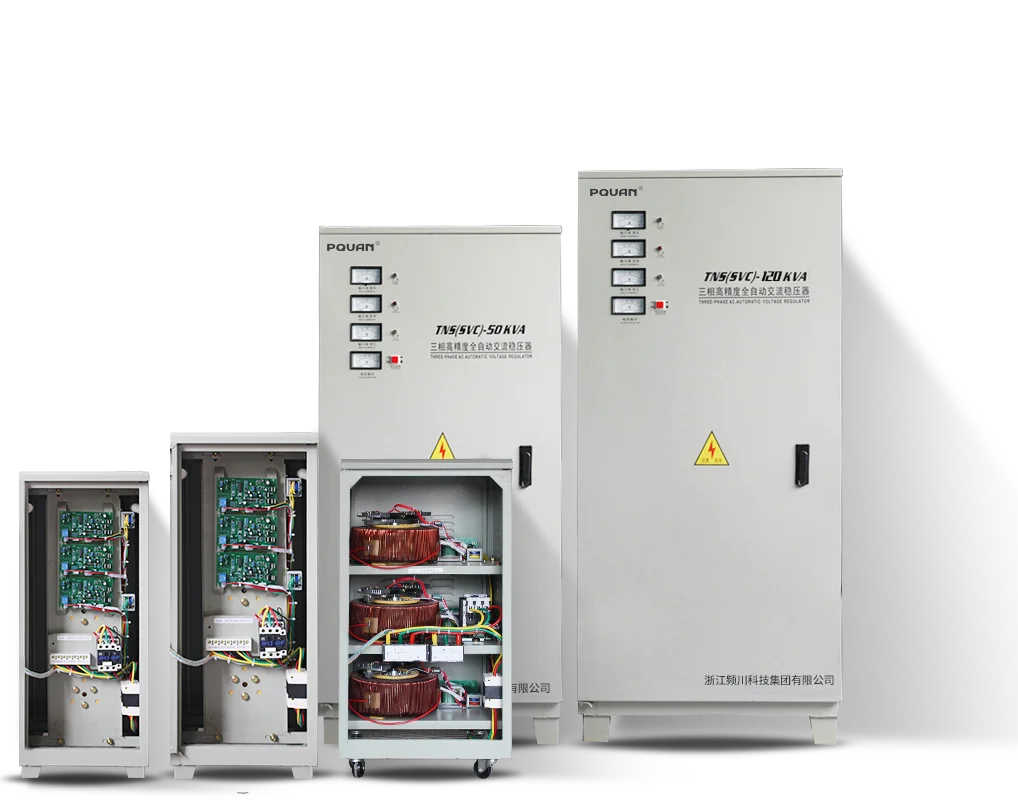

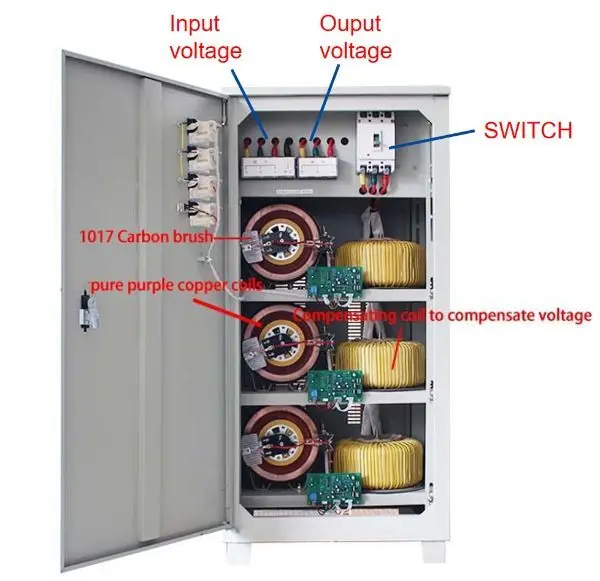

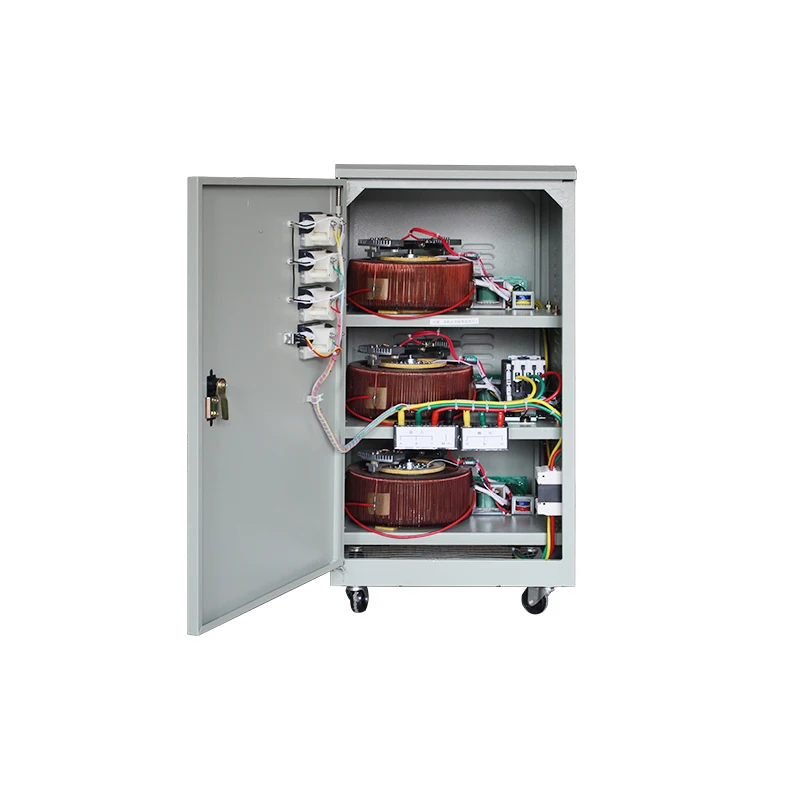

The TNS series high-precision fully automatic three-phase AC voltage stabilizer is composed of three sets of TND (SVC) series high-precision fully automatic single-phase AC voltage stabilizers. Each phase is regulated separately, ensuring stable and safe voltage for each phase. The grid input is a three-phase four-wire system with a star (Y) connection, and the output can be either a three-phase four-wire system or a three-phase three-wire system. This product features non-distorted waveforms, reliable performance, and can operate continuously for extended periods. It can be equipped with optional protection functions such as overvoltage, undervoltage, overcurrent, phase loss, short circuit, surge, and delay. It is widely applicable to any environment requiring stable voltage, making it an ideal voltage stabilization power supply to ensure the normal operation of your electrical equipment. Customizable input with a delta (△) connection is available.
The High Quality AC Automatic Voltage Regulators/Stabilizers Tns/SVC 20kVA 380V Servo AVR represents a sophisticated power conditioning solution engineered specifically for industrial and commercial applications requiring precise voltage stabilization across demanding operational environments. This advanced servo-controlled automatic voltage regulator combines cutting-edge electronic control systems with robust mechanical construction to deliver consistent voltage output regardless of input fluctuations, making it an essential component for facilities where sensitive equipment and critical processes depend on stable electrical supply. The servo AVR technology employed in this unit utilizes precision motor-driven variable transformers to maintain output voltage within extremely tight tolerances, ensuring that connected loads receive clean, stable power even when input voltage varies significantly due to grid instability or load changes.
Product Paramenters
Function &Parameter:
Input Voltage: |
280V-460V (Three-phase four-wire) or 320V-480V (Three-phase four-wire) |
Output Voltage: |
Line voltage 380V, Phase voltage 220V |
Voltage Accuracy: |
±4% |
Frequency: |
50Hz/60Hz |
Overvoltage Protection: |
246V ±4% |
Undervoltage Protection: |
184V ±4% |
Waveform Distortion: |
No additional waveform distortion |
Load Power Factor: |
0.8 |
Efficiency: |
≥90% |
Adjustment Time: |
<1 second (When input voltage changes by 10%) |
Dielectric Strength: |
1500V/1 min |
Insulation Resistance: |
>2MΩ |
Features:
1. Automatic Voltage Regulator keeps your output voltage stable. This ensures your sensitive devices work in the stable voltage range. It also helps extend your equipment's lifespan.
2. The AVR are designed to handle a wide input voltage range. They protect against both low and high-voltage fluctuations. This feature makes them suitable for areas with inconsistent power supply.

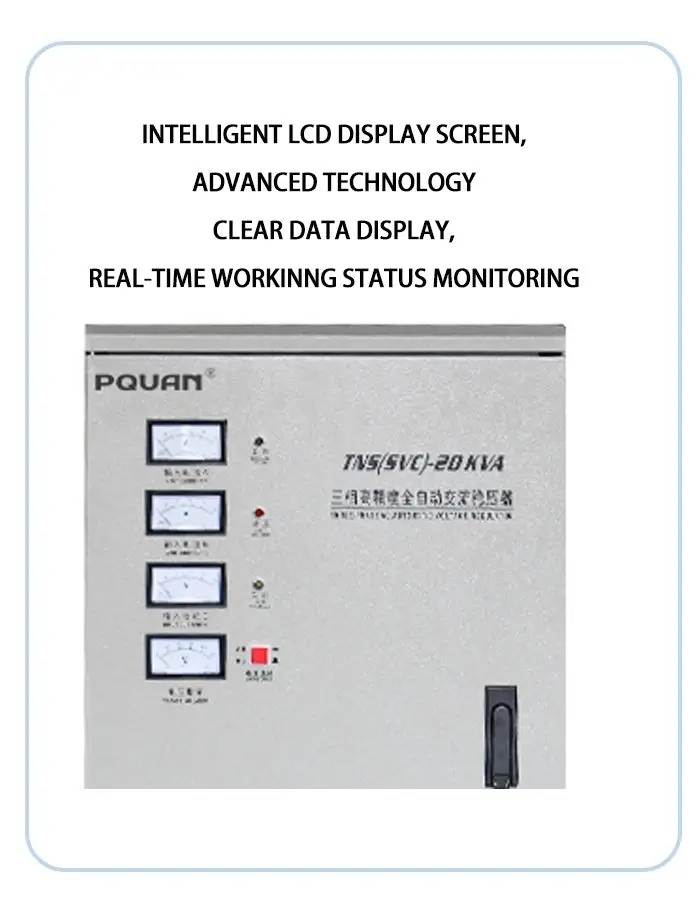

3. Usually comes with manual meters. But we can supply a built-in digital display that allows you to monitor the input and output voltage levels in real time, providing transparency and control over your power supply.
4. Achieving high output accuracy, minimizes voltage deviations, which can lead to equipment damage or malfunction. This feature is critical for industrial and commercial applications.
5. The AVR acts as a guard for your equipment against voltage spikes. It protects your valuable electrical loads from sudden voltage fluctuations or electrical storms.
6. Built-in overload protection safeguards the AVR and connected devices from excessive electrical loads, preventing overheating or equipment damage.
7. Equipped with advanced servo motors, these regulators respond rapidly to voltage fluctuations, ensuring seamless power transitions without interruptions.
8. Engineered for quiet operation, making them suitable for diverse settings, including office environments and industrial facilities.
2. The AVR are designed to handle a wide input voltage range. They protect against both low and high-voltage fluctuations. This feature makes them suitable for areas with inconsistent power supply.
3. Usually comes with manual meters. But we can supply a built-in digital display that allows you to monitor the input and output voltage levels in real time, providing transparency and control over your power supply.
4. Achieving high output accuracy, minimizes voltage deviations, which can lead to equipment damage or malfunction. This feature is critical for industrial and commercial applications.
5. The AVR acts as a guard for your equipment against voltage spikes. It protects your valuable electrical loads from sudden voltage fluctuations or electrical storms.
6. Built-in overload protection safeguards the AVR and connected devices from excessive electrical loads, preventing overheating or equipment damage.
7. Equipped with advanced servo motors, these regulators respond rapidly to voltage fluctuations, ensuring seamless power transitions without interruptions.
8. Engineered for quiet operation, making them suitable for diverse settings, including office environments and industrial facilities.

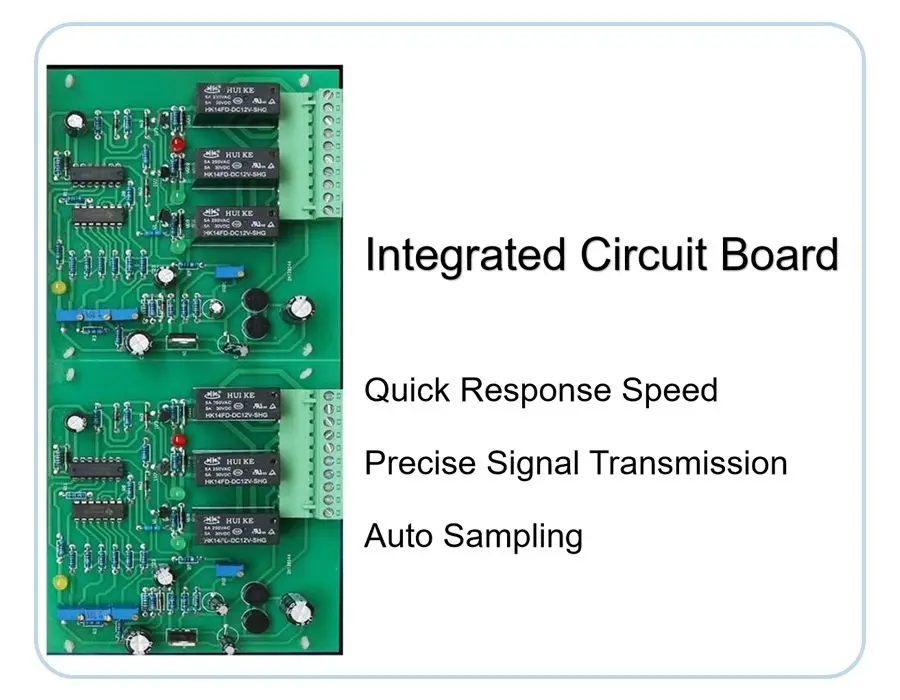

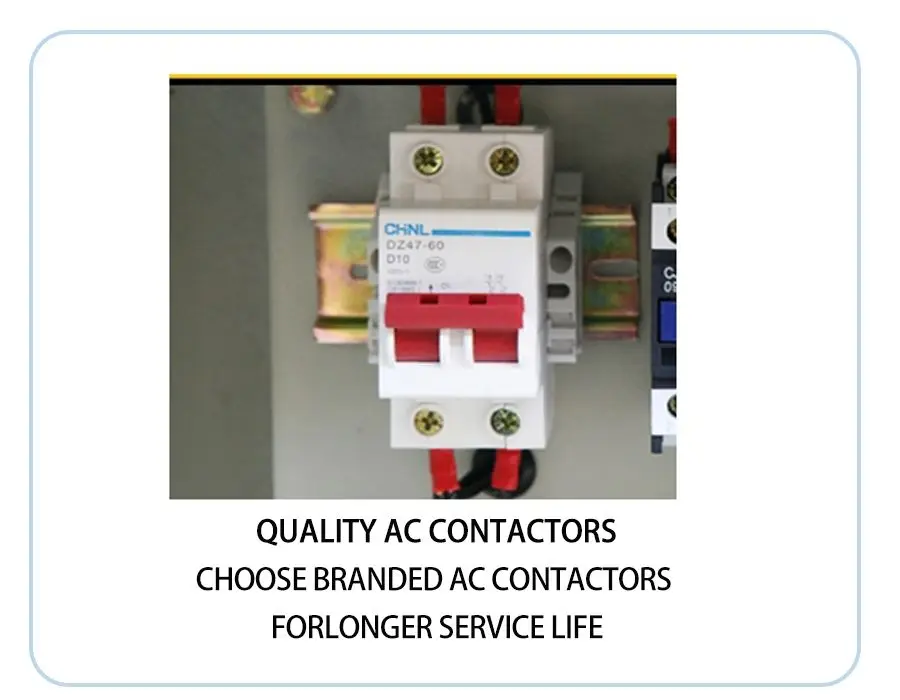

Details Images

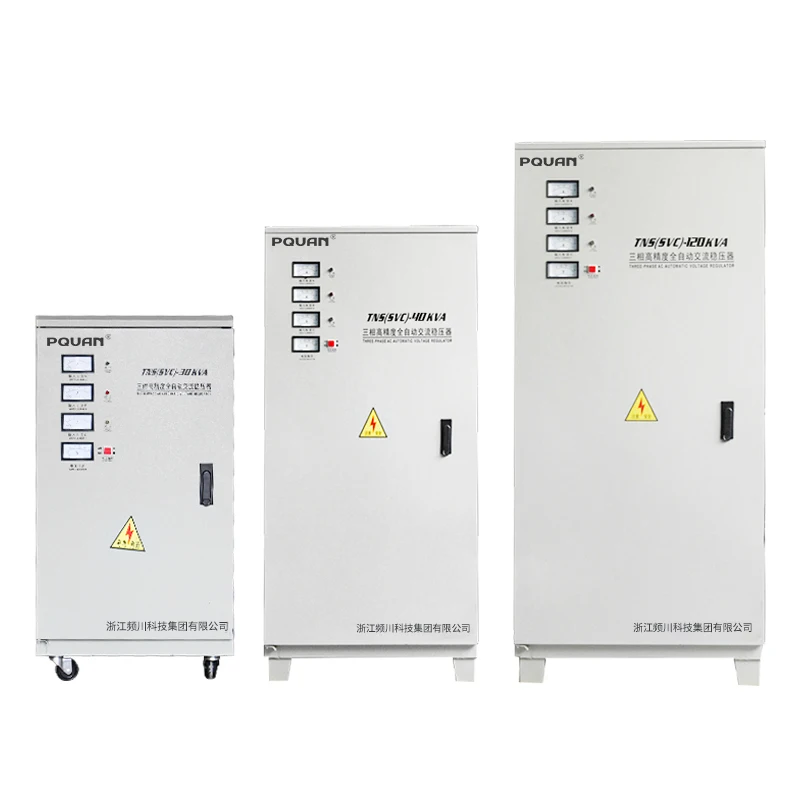

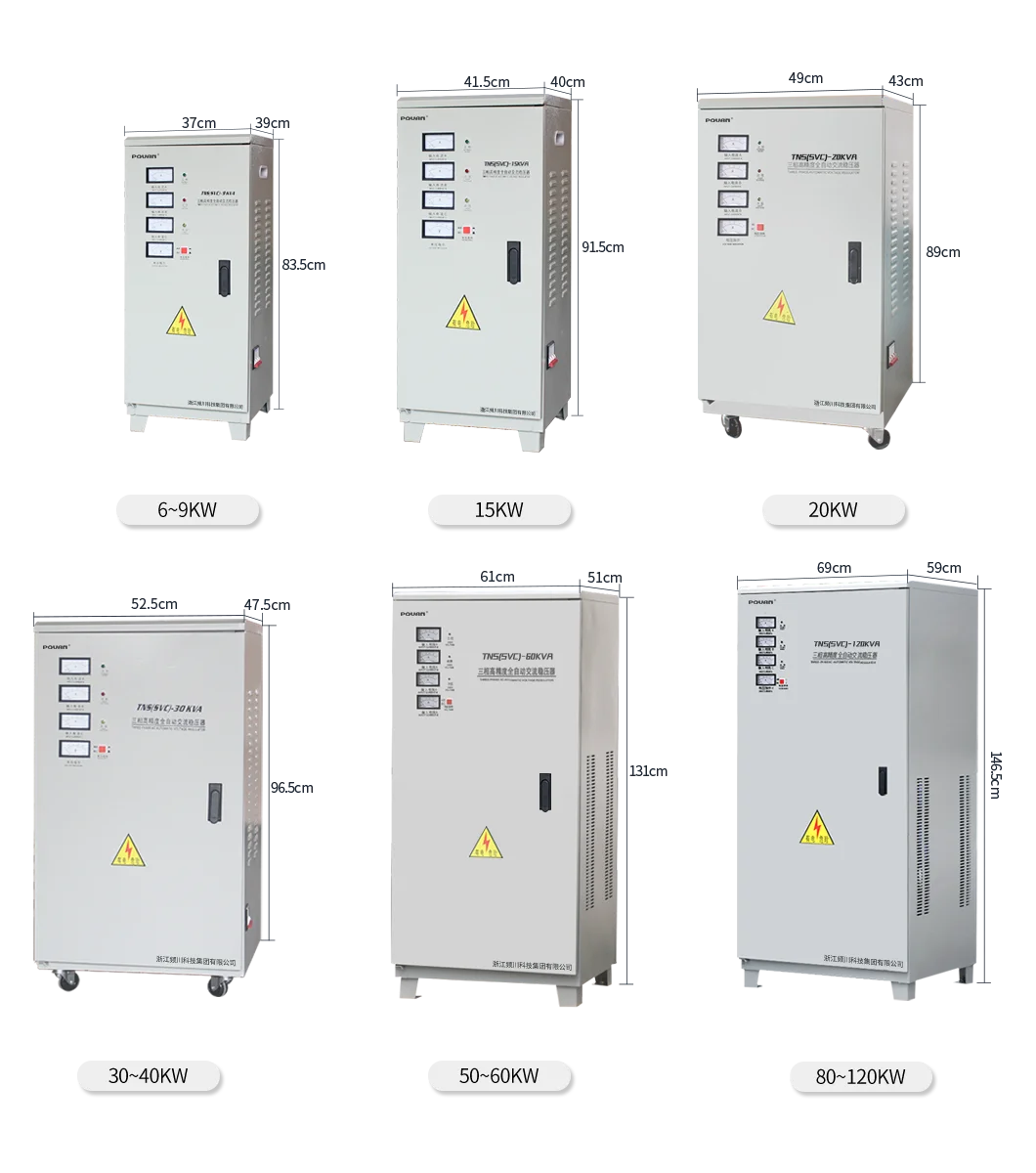

Specifications and Model
Model |
Output(KVA) |
Dimension (cm) |
N.W (kg) |
TNS/SVC-9K |
9 |
31.5 × 32.5 × 77 |
34.7 |
TNS/SVC-15K |
15 |
34 × 35.5 × 83 |
49 |
TNS/SVC-20K |
20 |
42.5 × 36.3 × 80 |
63.8 |
TNS/SVC-30K |
30 |
46 × 41 × 87 |
95 |
TNS/SVC-40K |
40 |
46 × 41 × 87 |
108.3 |
TNS/SVC-50K |
50 |
55 × 45 × 115 |
145.6 |
TNS/SVC-60K |
60 |
55 × 45 × 115 |
145.6 |
TNS/SVC-80K |
80 |
60.5 × 51.5 × 131 |
190.6 |
TNS/SVC-100K |
100 |
61 × 51.5 × 131 |
201.7 |
TNS/SVC-120K |
120 |
61 x 51.5 x 131 |
208.5 |
This series of voltage stabilizers is widely used in industrial, agricultural, medical, broadcasting, telecommunications,scientific research, cultural fields, and other areas where small and medium-sized electromechanical equipment, production lines, construction machinery, microcomputers, embroidery machines, air conditioners, refrigerators, audio equipment, televisions, and other household appliances, lighting, and other equipment requiring voltage stabilization are used.
