High Quality SBW Series Voltage Regulator 380V 1200KVA 800KVA 500KVA 200Kva 150Kva 50Kva 3 Phase Automatic Ac Voltage Stabilizer

High Quality SBW Series Voltage Regulator 380V 1200KVA 800KVA 500KVA 200Kva 150Kva 50Kva 3 Phase Automatic Ac Voltage Stabilizer

Spu:

1601486651822

Overview
Recommended Products

Products Description

High Quality SBW Series Voltage Regulator 380V 1200KVA 800KVA 500KVA 200Kva 150Kva 50Kva 3 Phase Automatic Ac Voltage Stabilizer details

The SBW series three-phase fully automatic compensated power voltage regulator is suitable for applications where voltage
fluctuations are caused by variations in the external power grid voltage or load changes. It automatically maintains a stable output voltage. Compared with other types of voltage regulators, this series offers advantages such as large capacity, high efficiency, no waveform distortion, and smooth voltage regulation. It is suitable for a wide range of loads, can with stand instantaneous overload, and can operate continuously for long periods. It supports manual/automatic switching and is equipped with overvoltage protection, phase loss protection, phase sequence protection, and automatic protection against mechanical failures. In addition, the unit features a compact size, light weight, easy installation, and reliable operation.

The High Quality SBW Series Voltage Regulator 380V 1200KVA 800KVA 500KVA 200Kva 150Kva 50Kva 3 Phase Automatic Ac Voltage Stabilizer represents a comprehensive solution for industrial power management requirements, engineered to address the critical need for stable electrical supply across diverse commercial and manufacturing environments. This sophisticated three-phase automatic voltage regulation system incorporates advanced servo motor technology and precision control mechanisms to deliver consistent power output regardless of input voltage fluctuations, making it an essential component for facilities requiring uninterrupted operations and equipment protection.

Technical Specfication

Input Voltage Range:	3PH 304V-456V customizable
Output Voltage:	3PH 380V
Rated Power:	50 KVA -3000 KVA
Voltage Accuracy:	(2-5%) Adjustable
Frequency:	50-60Hz
Response Time:	≤1.5s (When external voltage changes by 10%)
Waveform Distortion:	No additional waveform distortion
Efficiency:	≥90% (Power rating above 50KVA)
Mains Bypass:	Convenient switching between mains supply and stabilized output for three-phase products
Starting Method:	Automatic startup on power-up or manual startup selectable
Operating Mode:	Can operate continuously unattended for long periods
Protection Features:	Overvoltage protection, overcurrent protection, phase loss and phase sequence protection for units above 150KVA

Details Images

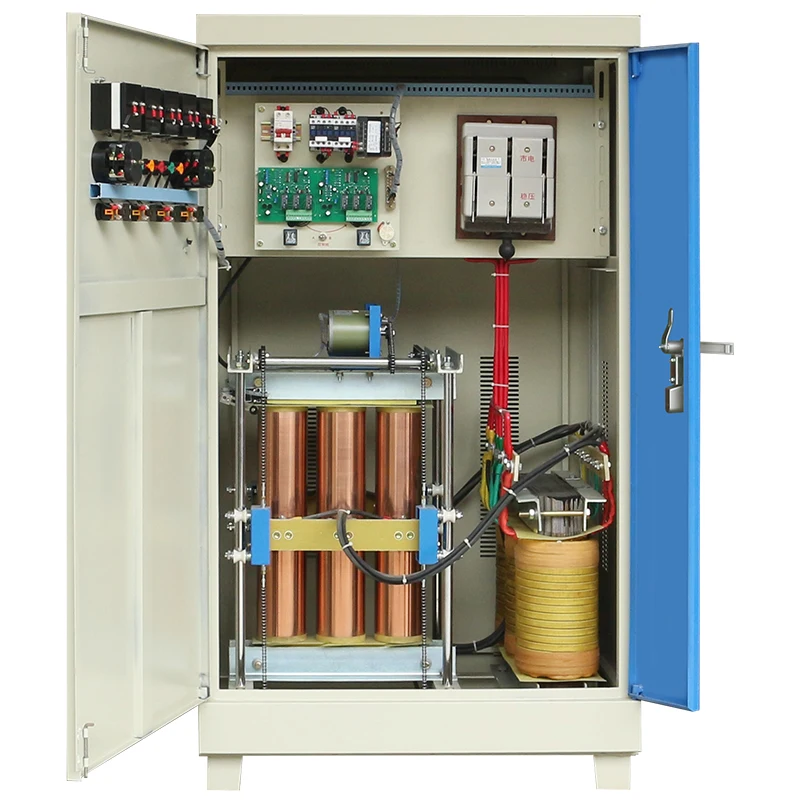

High Quality SBW Series Voltage Regulator 380V 1200KVA 800KVA 500KVA 200Kva 150Kva 50Kva 3 Phase Automatic Ac Voltage Stabilizer manufacture

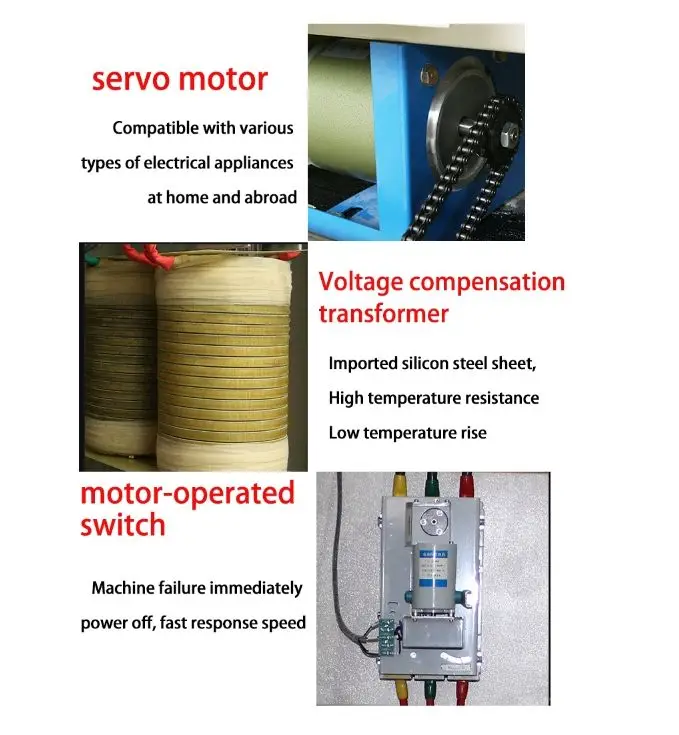

High Quality SBW Series Voltage Regulator 380V 1200KVA 800KVA 500KVA 200Kva 150Kva 50Kva 3 Phase Automatic Ac Voltage Stabilizer factory

High Quality SBW Series Voltage Regulator 380V 1200KVA 800KVA 500KVA 200Kva 150Kva 50Kva 3 Phase Automatic Ac Voltage Stabilizer supplier

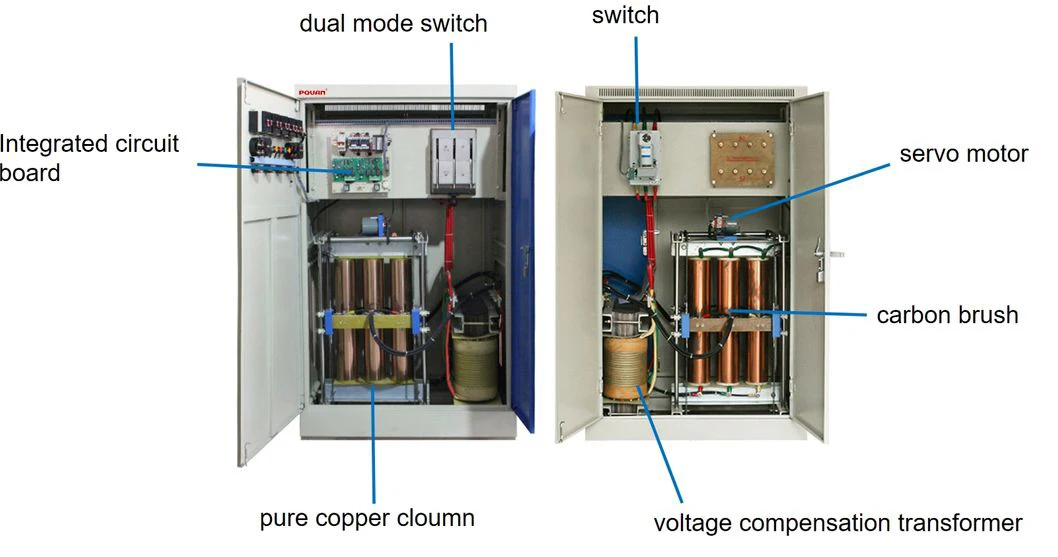

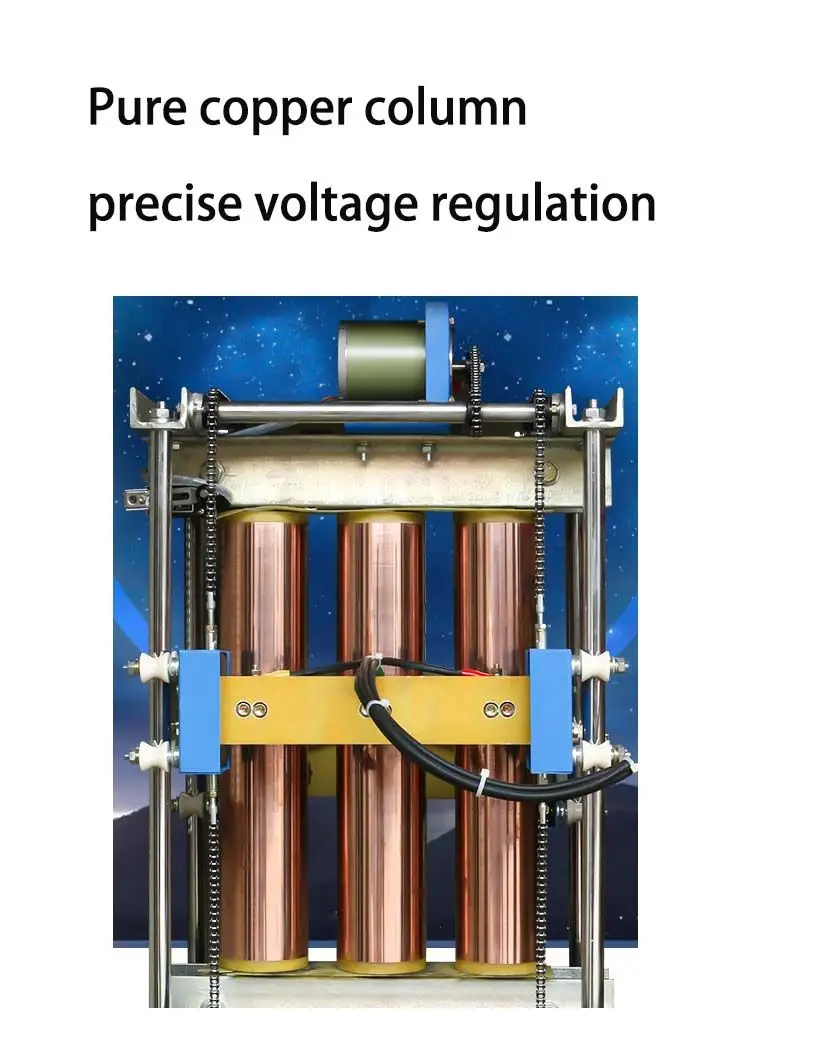

Pure copper column is the core component of the voltage regulator, and excellent copper column can maintain the long-term use of the voltage regulator

Lower resistivity
Strong electrical conductivity

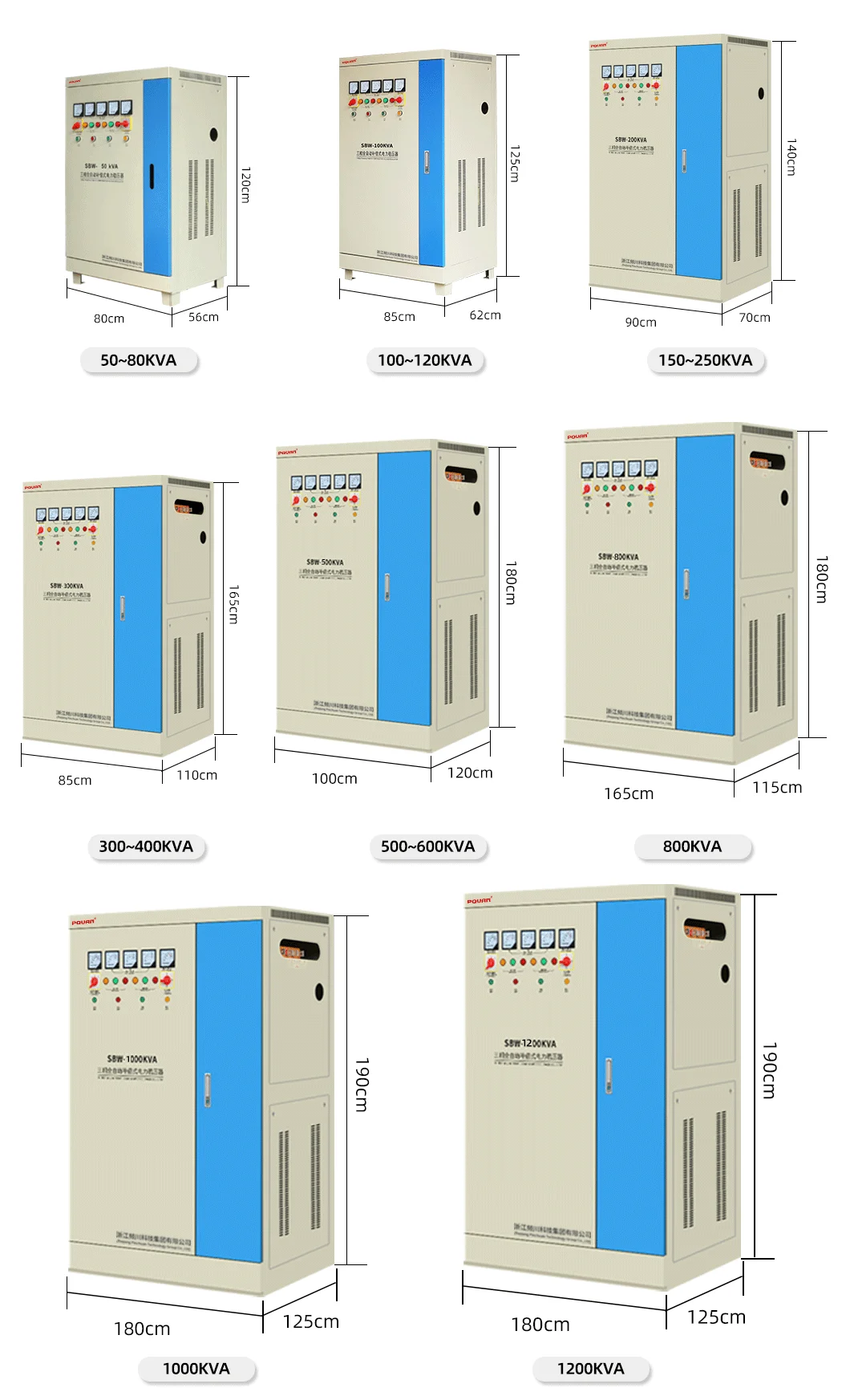

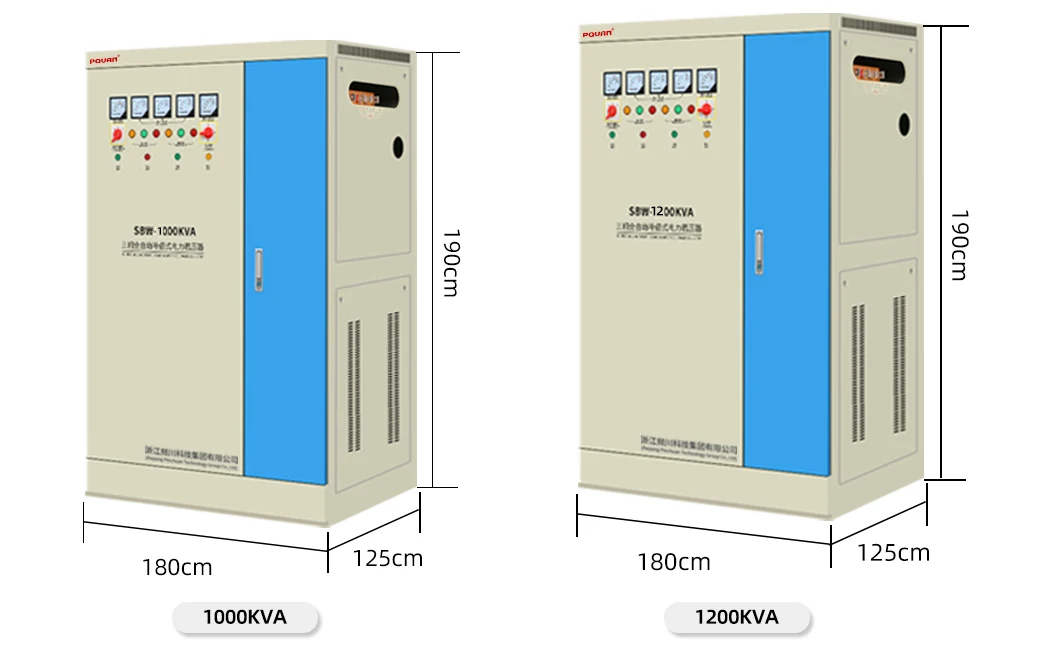

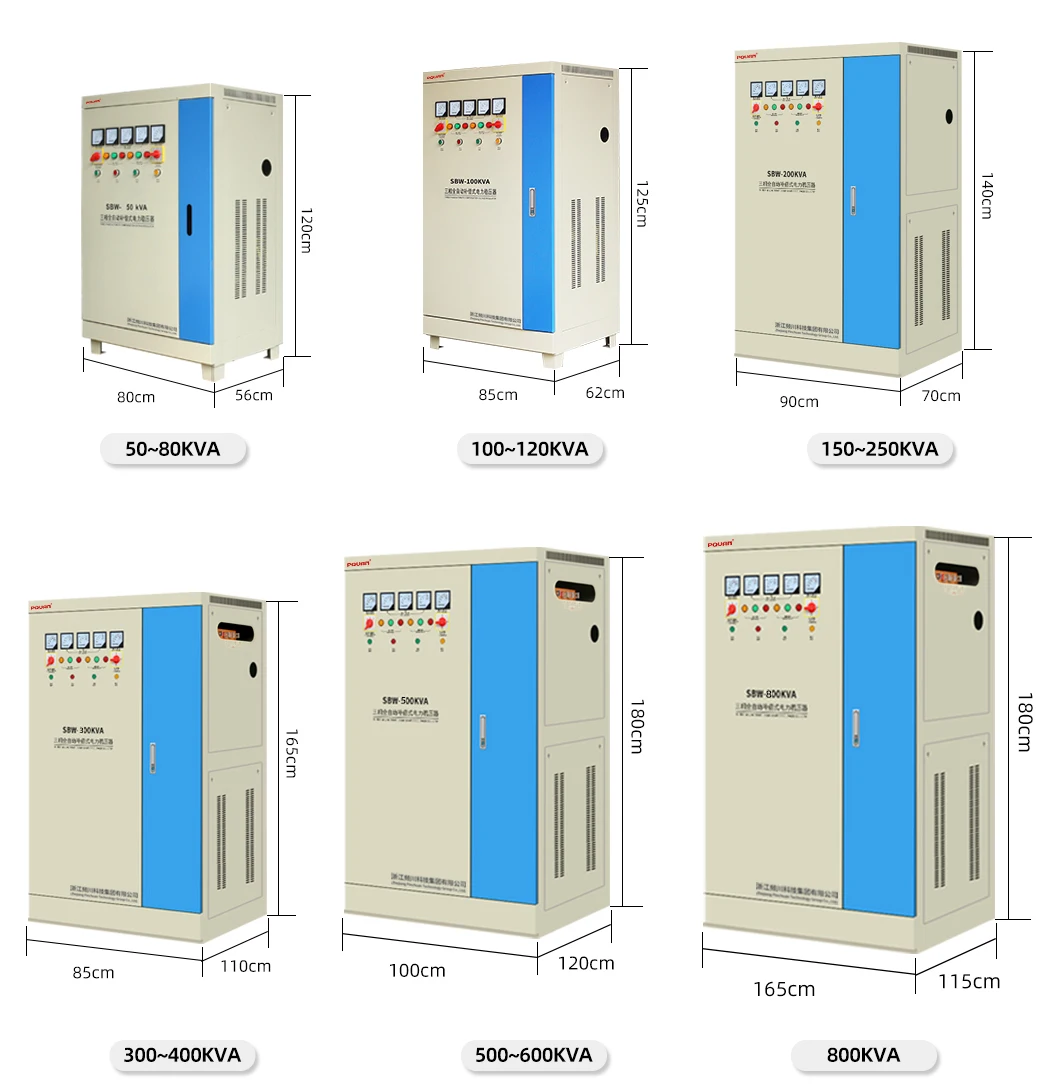

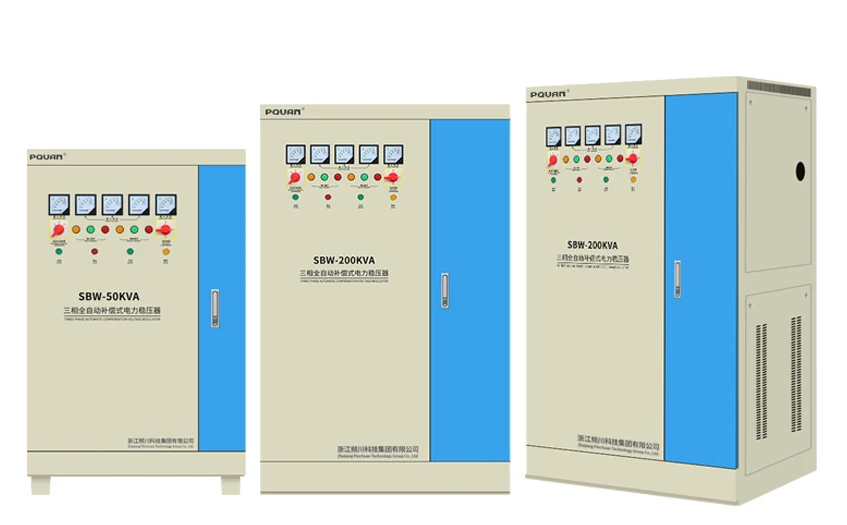

Specifications and Model

Item NO.	Output Voltage(KVA)	Size (cm)	G.W(kg)
SBW-50KVA	50	80 × 56 × 120	240
SBW-80KVA	80	85 × 56 × 120	280
SBW-100KVA	100	85 × 62 × 140	320
SBW-120KVA	120	85 × 62 × 140	330
SBW-150KVA	150	100 × 70 × 160	460
SBW-200KVA	200	100 × 70 × 160	480
SBW-250KVA	250	100 × 70× 160	580
SBW-300KVA	300	85 × 110 × 180	660
SBW-350KVA	350	85 × 110 × 180	850
SBW-400KVA	400	85 × 110 × 180	780
SBW-500KVA	500	110 × 120 × 190	1050
SBW-600KVA	600	110 × 120 × 190	1100
SBW-800KVA	800	165 × 110 × 180	1950
SBW-1000KVA	1000	175 × 120 × 190	2300
SBW-1200KVA	1200	185 × 125 × 200	2600

Application:

This series of voltage stabilizers is widely used in industrial, agricultural, medical, broadcasting, telecommunications,
scientific research, cultural fields, and other areas where small and medium-sized electromechanical equipment, production lines, construction machinery, microcomputers, embroidery machines, air conditioners, refrigerators, audio equipment, televisions, and other household appliances, lighting, and other equipment requiring voltage stabilization are used.

Packing & Payment & Shipping

PACKING

Professional packing with multi-protection
Different good will have different packing guarantee the transportaion safety of products

PAYMENT
1. Standard payment terms: T/T 30% deposit, 70%balance against B/L copy or 100% irrevocable LC at sight.
2. Online trade assurance order all is up to you.
3. More payment terms could be provided. (Alibaba Pay, We Chat Pay, Western Union...)

SHIPPING
1. Delivery time: Generally it is 5-10 days if the goods are in the stock, or it is 15-20 days if the goods are not in the stock, it is according to the quantity.
2. General export packing or customized packing as your request.
3. Professional goods shipping forwarder.

Company Profile

ZHEJIANG PQUAN Technology Co.Ltd. Is a company engaged in the reseach and development ( R&D), manufacture, sale, distribution, and service of electric drive and control products.

We are a professional and experienced supplier of automation solution for various field.The main products includes general-purpose inverters, soft starters, and voltage regulators. These products are known for their advanced technology, comprehensive functions, stable operation, simple operation, excellent energy saving capabilities, and outstanding performance.
