Factory Selling Tnd/SVC-15kVA Low Voltage Stabilizer Automatic Regulator AC 220V High-Power SVC
Spu:
1601482123732
- Overview
- Recommended Products
Products Description
TND (SVC) Series

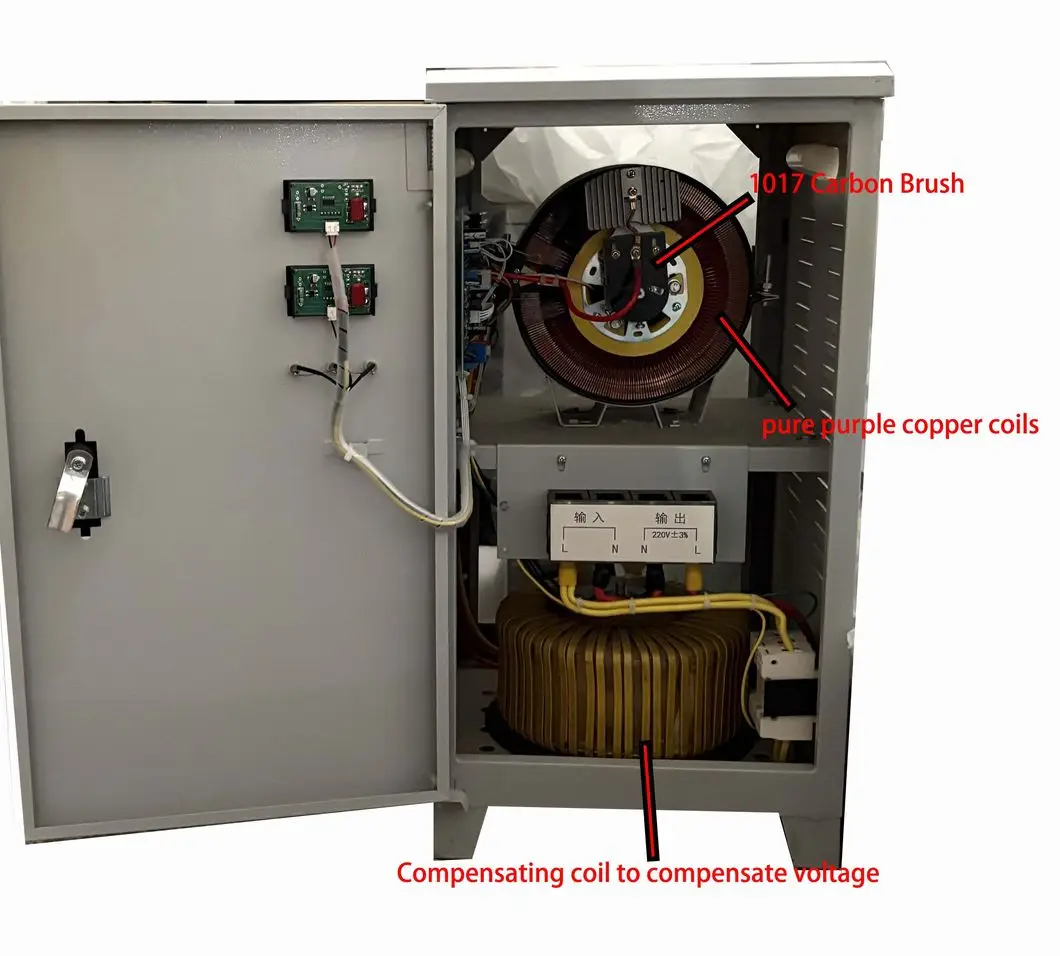

Single-phase high-precision automatic AC voltage stabilizers consist of a contact-type auto-transformer, a servo motor, and an automatic control circuit. When the grid voltage is unstable or the load changes, the 1 automatic sampling control circuit sends a signal to drive 2 the servo motor, adjusting the position of the carbon brush on the auto-transformer, there by regulating the output voltage to the rated value and achieving a stable state. This product is characterized by no waveform distortion, reliable performance, and continuous long-term operation. It can be equipped with protection functions such as overvoltage, undervoltage, overcurrent, short circuit, surge, and delay as needed. It is widely suitable for various power supply environments requiring stable voltage and is an ideal voltage stabilizing power supply to ensure the normal operation of electrical equipment.
The Factory Selling Tnd/SVC-15kVA Low Voltage Stabilizer Automatic Regulator AC 220V High-Power SVC represents a sophisticated electrical voltage regulation solution specifically engineered for demanding industrial and commercial applications where consistent power quality is paramount to operational efficiency and equipment protection. This high-power automatic voltage stabilizer integrates advanced servo motor technology with precision voltage sensing capabilities to deliver reliable voltage regulation within tight tolerance bands, ensuring that sensitive electronic equipment, manufacturing machinery, and critical infrastructure systems receive stable power supply regardless of input voltage fluctuations.
Product Paramenters
Function &Parameter:
Output Voltage: |
220V and 110V |
Voltage accuracy: |
Phase voltage 220V ±3%, 110V ±6% |
Frequency: |
50HZ/60HZ |
Overvoltage Protection: |
246V ±4% |
Undervoltage Protection: |
184V ±4% |
Load Power Factor: |
0.8 |
Efficiency: |
≥90% |
Adjustment Time: |
≤1s (When the input voltage changes by 10%). |
Insulation Resistance: |
>2MΩ |
Waveform Distortion: |
No additional waveform distortion |
Dielectric Strength: |
1500V/min |
1. Automatic Voltage Regulator keeps your output voltage stable. This ensures your sensitive devices work in the stable voltage range. It also helps extend your equipment's lifespan.
2. The AVR are designed to handle a wide input voltage range. They protect against both low and high-voltage fluctuations. This feature makes them suitable for areas with inconsistent power supply.

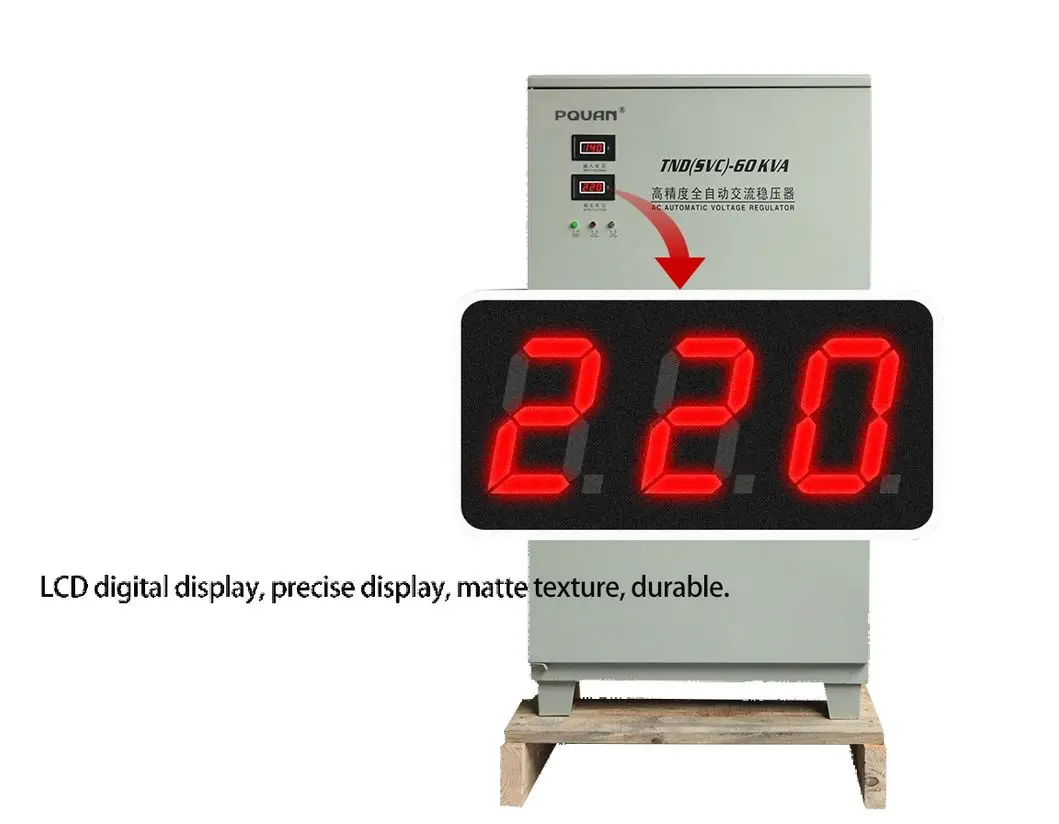

3. Usually comes with manual meters. But we can supply a built-in digital display that allows you to monitor the input and output voltage levels in real time, providing transparency and control over your power supply.
4. Achieving high output accuracy, minimizes voltage deviations, which can lead to equipment damage or malfunction. This feature is critical for industrial and commercial applications.
5. The AVR acts as a guard for your equipment against voltage spikes. It protects your valuable electrical loads from sudden voltage fluctuations or electrical storms.
6. Built-in overload protection safeguards the AVR and connected devices from excessive electrical loads, preventing overheating or equipment damage.
7. Equipped with advanced servo motors, these regulators respond rapidly to voltage fluctuations, ensuring seamless power transitions without interruptions.
8. Engineered for quiet operation, making them suitable for diverse settings, including office environments and industrial facilities.
2. The AVR are designed to handle a wide input voltage range. They protect against both low and high-voltage fluctuations. This feature makes them suitable for areas with inconsistent power supply.
3. Usually comes with manual meters. But we can supply a built-in digital display that allows you to monitor the input and output voltage levels in real time, providing transparency and control over your power supply.
4. Achieving high output accuracy, minimizes voltage deviations, which can lead to equipment damage or malfunction. This feature is critical for industrial and commercial applications.
5. The AVR acts as a guard for your equipment against voltage spikes. It protects your valuable electrical loads from sudden voltage fluctuations or electrical storms.
6. Built-in overload protection safeguards the AVR and connected devices from excessive electrical loads, preventing overheating or equipment damage.
7. Equipped with advanced servo motors, these regulators respond rapidly to voltage fluctuations, ensuring seamless power transitions without interruptions.
8. Engineered for quiet operation, making them suitable for diverse settings, including office environments and industrial facilities.
Details Images
Protection Function:
1. Overload Protection: When the load power reaches 120%, the voltage stabilizer automatically activates protection, cutting off the output.
2. Overvoltage Protection: When the output voltage exceeds 450V, the overvoltage indicator lights up, and the output is automatically cut off.
3. Delay Protection: Upon power-up, a delay of several seconds is automatically initiated before voltage stabilization begins.
4. Short Circuit Protection: When a short circuit occurs, the voltage stabilizer automatically stops output and requires manual reset to restore output.
2. Overvoltage Protection: When the output voltage exceeds 450V, the overvoltage indicator lights up, and the output is automatically cut off.
3. Delay Protection: Upon power-up, a delay of several seconds is automatically initiated before voltage stabilization begins.
4. Short Circuit Protection: When a short circuit occurs, the voltage stabilizer automatically stops output and requires manual reset to restore output.

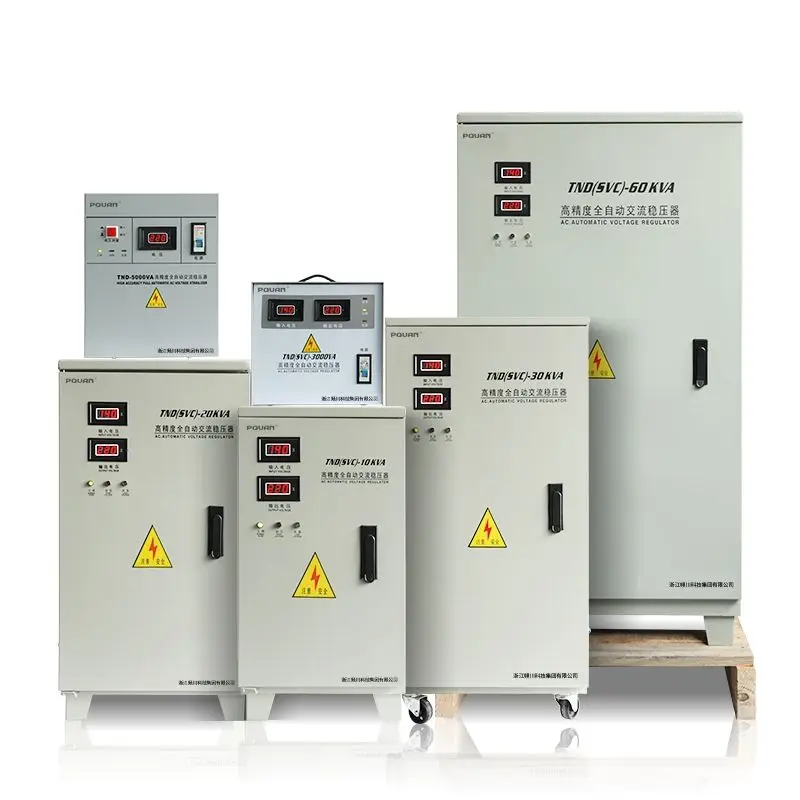

Specifications and Model
Input Voltage |
Model (kVA) |
Rated Capacity |
Net Weight |
Dimensions |
KVA |
KG |
CM |
||
140v-260v |
TND-3KVA |
12 |
10.5 |
31x38x30 |
TND-5KVA |
15 |
13.8 |
30x39x36 |
|
TND-10KVA |
27 |
31.5 |
42x36x61 |
|
TND-15KVA |
64 |
45.3 |
43x48x72 |
|
TND-20KVA |
70 |
48.7 |
43x48x72 |
|
TND-30KVA |
95 |
63.5 |
48x44x88 |
|
TND-40KVA |
107 |
120 |
65x55x116 |
|
TND-50KVA |
135 |
128 |
65x55x116 |
|
TND-60KVA |
150 |
128 |
65x55x116 |
|
90v-260v |
TND-3KVA |
12 |
11.7 |
31x38x30 |
TND-5KVA |
15 |
16.1 |
31x44x35 |
|
TND-10KVA |
27 |
35.8 |
42x36x61 |
|
TND-15KVA |
64 |
49.2 |
43x48x72 |
|
TND-20KVA |
70 |
55.8 |
43x48x72 |
|
TND-30KVA |
95 |
72.2 |
48x44x88 |
|
TND-40KVA |
107 |
130 |
65x55x116 |
|
TND-50KVA |
135 |
140 |
65x55x116 |
|
TND-60KVA |
150 |
140 |
65x55x116 |
|
90v-260v
(Triple coil)
|
TND-15KVA |
64 |
61.6 |
43x40x85 |
TND-20KVA |
70 |
67.6 |
43x40x85 |
|
TND-30KVA |
95 |
83.5 |
48x44x88 |
Application
This series of voltage stabilizers is widely used in industrial, agricultural, medical, broadcasting, telecommunications,scientific research, cultural fields, and other areas where small and medium-sized electromechanical equipment, production lines, construction machinery, microcomputers, embroidery machines, air conditioners, refrigerators, audio equipment, televisions, and other household appliances, lighting, and other equipment requiring voltage stabilization are used.
