Advanced Motor Protection:
Eliminates the need for thermal relays by providing comprehensive motor protection during startup and operation.
Simple circuit convenient installation and maintenanceThree in---Three out: R/S/T---INPUT U/V/W---OUTPUT
350KW Three-phase Bypass Soft Starter for Motor Intelligent Control IP65 RS485 Communication Forced Air Cooling 50/60Hz
Spu:
1601606361054
- Overview
- Recommended Products

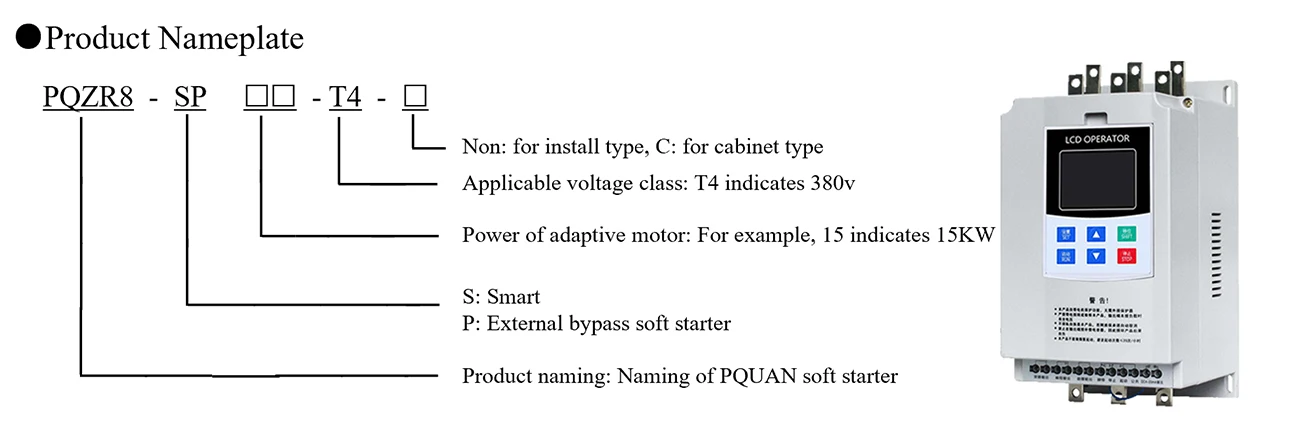

Products Description
The PQZR8-P intelligent External bypass soft starter is a new intelligent starting device with international advanced level, which is based on microprocessing as the core, combined with technologies such as controllable silicon power drive, software and hardware protection, menu LED display, keyboard operation, torque control, and fuzzy PID closed-loop algorithm. It integrates motor soft start, soft stop, light load energy-saving, and multiple functions. This device has complete functions, stable performance, and is widely used in the start-up process of transmission equipment, fans, slurry machines, compressors, and other loads. Designed for three-phase AC squirrel-cage induction motors operating at 320V to 460V, 50/60Hz, with a rated current of 1200A or less.
The 350KW Three-phase Bypass Soft Starter for Motor Intelligent Control IP65 RS485 Communication Forced Air Cooling 50/60Hz represents a sophisticated industrial motor control solution engineered to meet the demanding requirements of high-power electrical applications across diverse manufacturing and processing environments. This advanced soft starter system incorporates intelligent bypass technology that optimizes motor starting performance while minimizing electrical stress on connected equipment, making it an essential component for facilities requiring reliable, energy-efficient motor control in applications ranging from large-scale pumping systems and industrial compressors to heavy-duty conveyor networks and manufacturing production lines.
Technical Specfication
Item |
Item Description |
Input Voltage |
Three Phase 380V-15% ~ 415+10% 50/60Hz |
Adaptive Motor |
Squirrel-cage three-phase asynchronous motor |
Starting Times |
It is recommended not to exceed 20 times per hour. |
Control Mode |
1) Operation panel control; |
2) Operation panel + external control; |
|
3) External control; |
|
4) External control + COM control; |
|
5) Operation panel + external + COM control; |
|
6) Operation panel + COM control; |
|
7) COM control; |
|
8) No start or stop operation. |
|
Start Mode |
1) Current-limiting start; |
2) Voltage ramp start; |
|
3) Kick start + current-limiting start; |
|
4) Kick start + voltage ramp start; |
|
5) Current ramp start; |
|
6) Voltage current-limiting double closed-loop start. |
|
Stop Mode |
1) Soft stop; |
2) Free stop. |
|

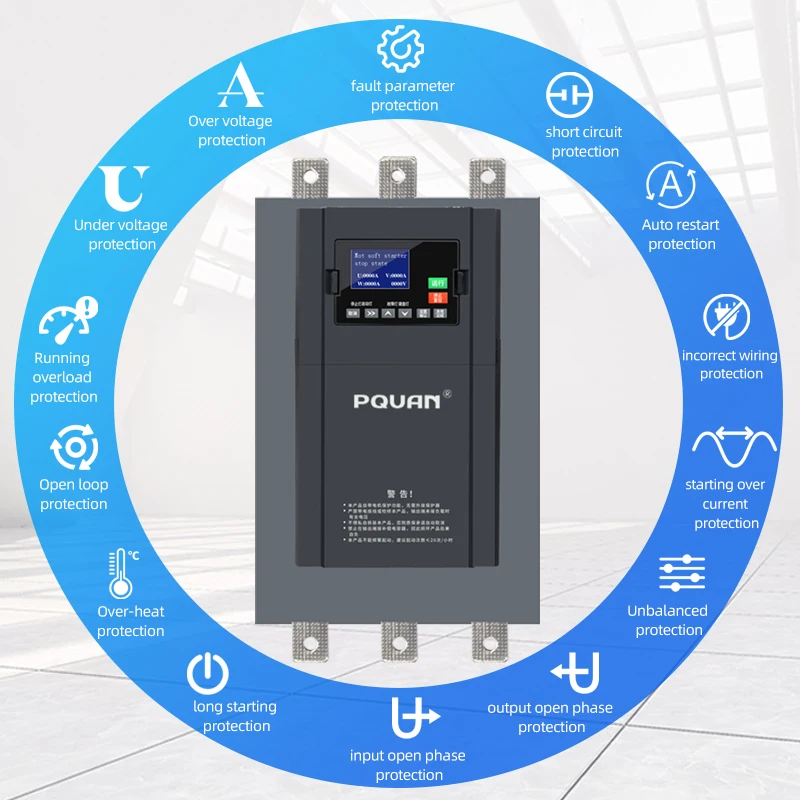

Protective Function |
1)Open loop protection for external instantaneous stop terminals; |
2) Over-heat protection for soft starter; |
|
3) Protection for too long starting time; |
|
4) Input open phase protection; |
|
5) Output open phase protection; |
|
6) Unbalanced three-phase protection; |
|
7) starting over current protection; |
|
8) Running overload protection; |
|
9) Under voltage protection for power voltage; |
|
10) Over voltage protection for power voltage; |
|
11) Protection for fault parameter setting; |
|
12) Load short circuit protection; |
|
13) Auto restart or incorrect wiring protection; |
|
14) Incorrect wiring protection of external control stop terminals. |
|
Place to be used |
Indoor location with good ventilation free from corrosive gas and conductive dust. |
Altitude |
Below 3000M. It have to rise the rate power when the altitude is more than 3000M. |
Ambient Temperature |
-30~+55ºC |
Ambient Humidity |
≤90%RH without dew condensation. |
Vibration |
<0.5G |
Protection Class |
IP20 |
Cooling Pattern |
Natural wind cooling. |
Main Circuit Operating Voltage: |
AC380V(±15%) |
Main Circuit Operating Current: |
22A~1200A |
Main Circuit Frequency: |
50~60Hz (±2%) |
Soft Starting Rise Time: |
2~60s |
Soft Stop Time: |
2~60s |
Current Limiting Multiple: |
1.5~5.0 Ie (where Ie refers to rated current) |
Initial Voltage: |
30%~70% Ue (where Ue refers to rated voltage) |
Cooling Method: |
Natural Cooling / Convection Cooling |
Communication Method: |
RS485 Serial Communication |
Starts per hour: |
≤10 times/hour |
* Minimizes mechanical stress on the motor during startup and stopping.
* Protects the motor from damage caused by inrush currents and voltage spikes.
* Optimizes motor operation for energy savings.
* Ensures consistent and reliable performance. Simple to install and maintain.
* Protects the motor from damage caused by inrush currents and voltage spikes.
* Optimizes motor operation for energy savings.
* Ensures consistent and reliable performance. Simple to install and maintain.
Features:
• Intuitive Display:
• Intuitive Display:

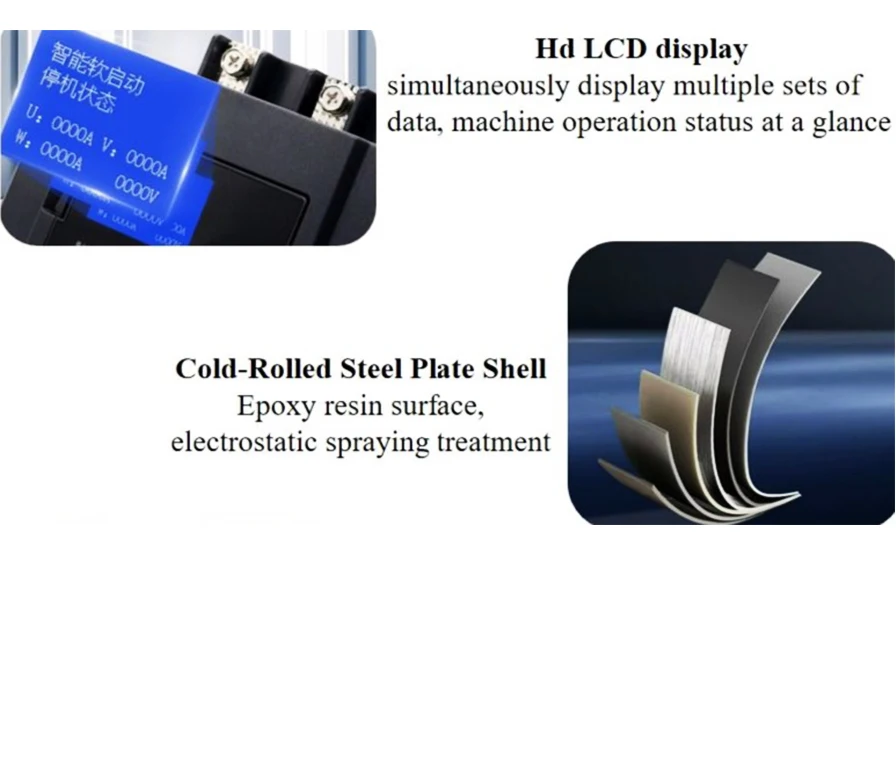

Features a large LCD screen that displays feedback in multiple languages and tracks motor condition.
• Advanced Control:
• Advanced Control:

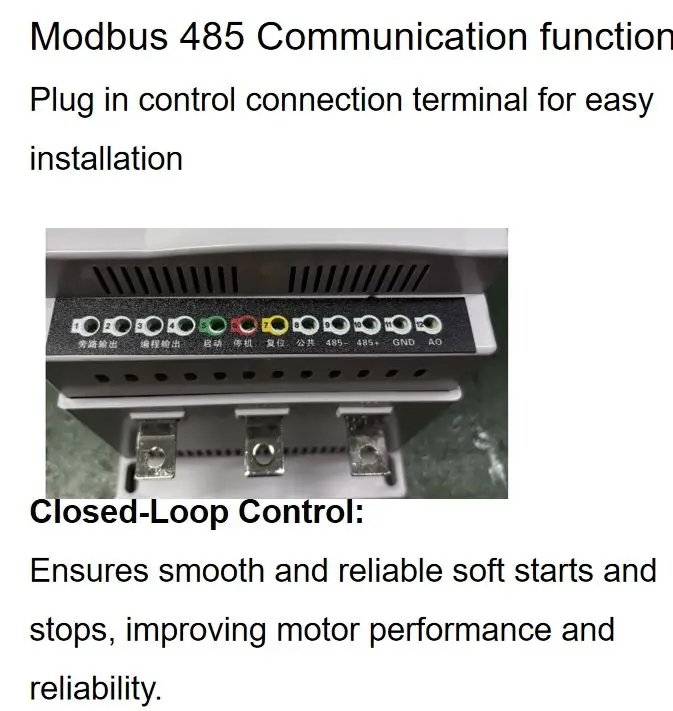

Offers advanced start and stop control functions with intuitive programming.
• Flexible Starting Parameters: Six selectable starting parameter sets allow a single soft starter to efficiently handle diverse motor load requirements.
• Dynamic Fault Memory:
• Flexible Starting Parameters: Six selectable starting parameter sets allow a single soft starter to efficiently handle diverse motor load requirements.
• Dynamic Fault Memory:
Facilitates rapid troubleshooting by providing detailed fault history and diagnostics.
• Comprehensive Motor Protection:
• Comprehensive Motor Protection:
Ensures reliable motor operation through a full suite of protective functions.
• Visual Display Options:
• Visual Display Options:
Offers clear operational feedback via LED indicators or a more detailed LED display.
• Communication Protocols: Provides seamless integration with industrial control systems through Modbus communication protocols.
• Compact and User-Friendly Design:
• Communication Protocols: Provides seamless integration with industrial control systems through Modbus communication protocols.
• Compact and User-Friendly Design:
Features a space-saving structure for easy installation and intuitive operation.
• Function-Grouped Menu:
• Function-Grouped Menu:
Simplifies configuration and operation with a logically organized menu structure.
• Remote Display and Diagnostics: Convenient external cabinet display installation via an optional panel mounting kit, with support for side-by-side multiple displays for rapid troubleshooting.
• Precise Soft Stop Control:
CPU-controlled soft stop functionality ensures smooth deceleration, ideal for applications sensitive to sudden stops or "hammer effect" impacts.
• Innovative Cooling System: 360-degree omnidirectional heat dissipation via a high-speed fan and optimized in/out ventilation grille
• Versatile Starting Modes: Current limiting start,Voltage ramp start,Kick start + current-limiting start, Kick start + voltage ramp start, Current ramp start, Voltage current-limiting double closed-loop start
• Remote Display and Diagnostics: Convenient external cabinet display installation via an optional panel mounting kit, with support for side-by-side multiple displays for rapid troubleshooting.
• Precise Soft Stop Control:
CPU-controlled soft stop functionality ensures smooth deceleration, ideal for applications sensitive to sudden stops or "hammer effect" impacts.
• Innovative Cooling System: 360-degree omnidirectional heat dissipation via a high-speed fan and optimized in/out ventilation grille
• Versatile Starting Modes: Current limiting start,Voltage ramp start,Kick start + current-limiting start, Kick start + voltage ramp start, Current ramp start, Voltage current-limiting double closed-loop start

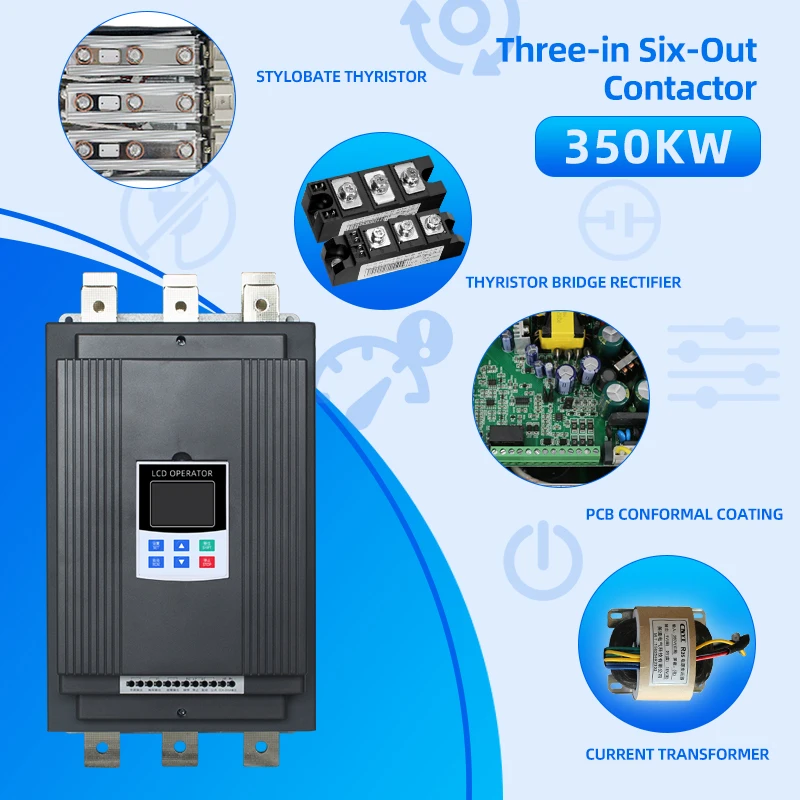

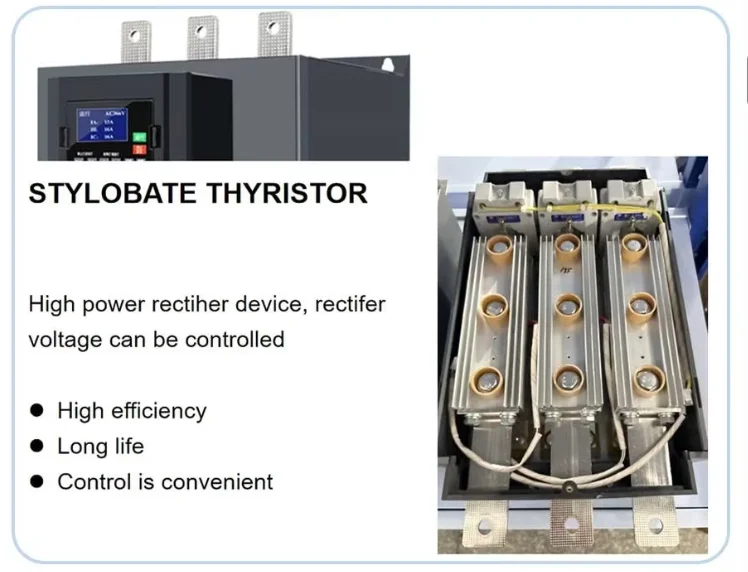

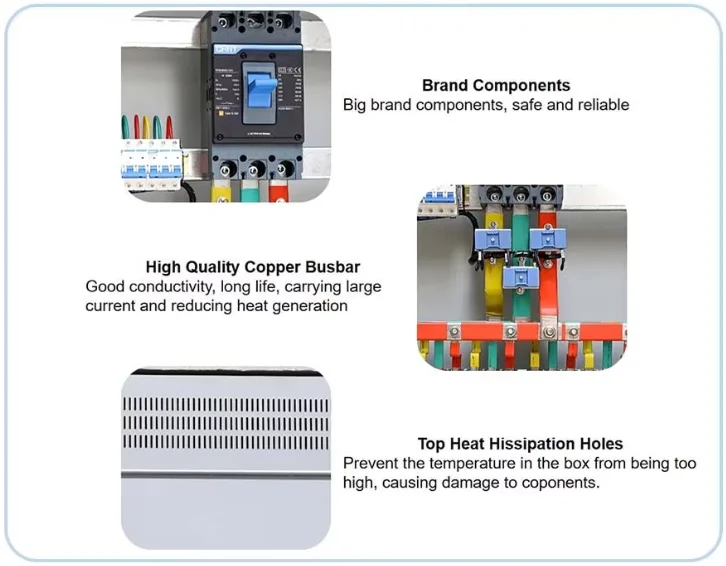

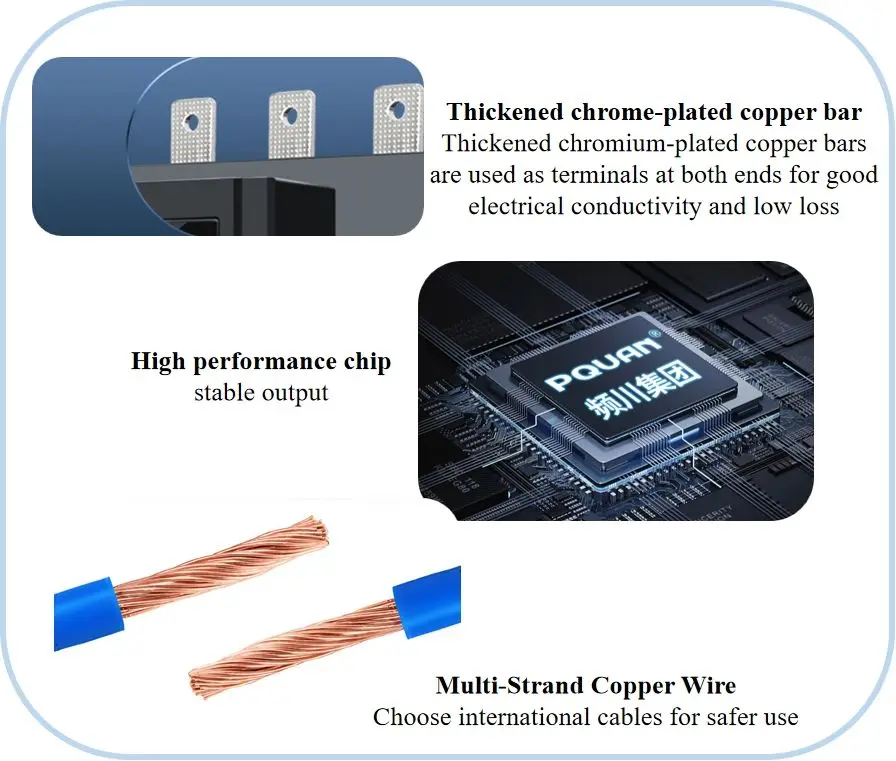

Details Images
Specifications and Model
Rated Power |
11/15/18.5/22/30/37KW |
45/55/75KW |
90/115/132/160KW |
Rated Current |
22/30/37/44/60/75A |
90/110/150A |
180/230/264/320A |

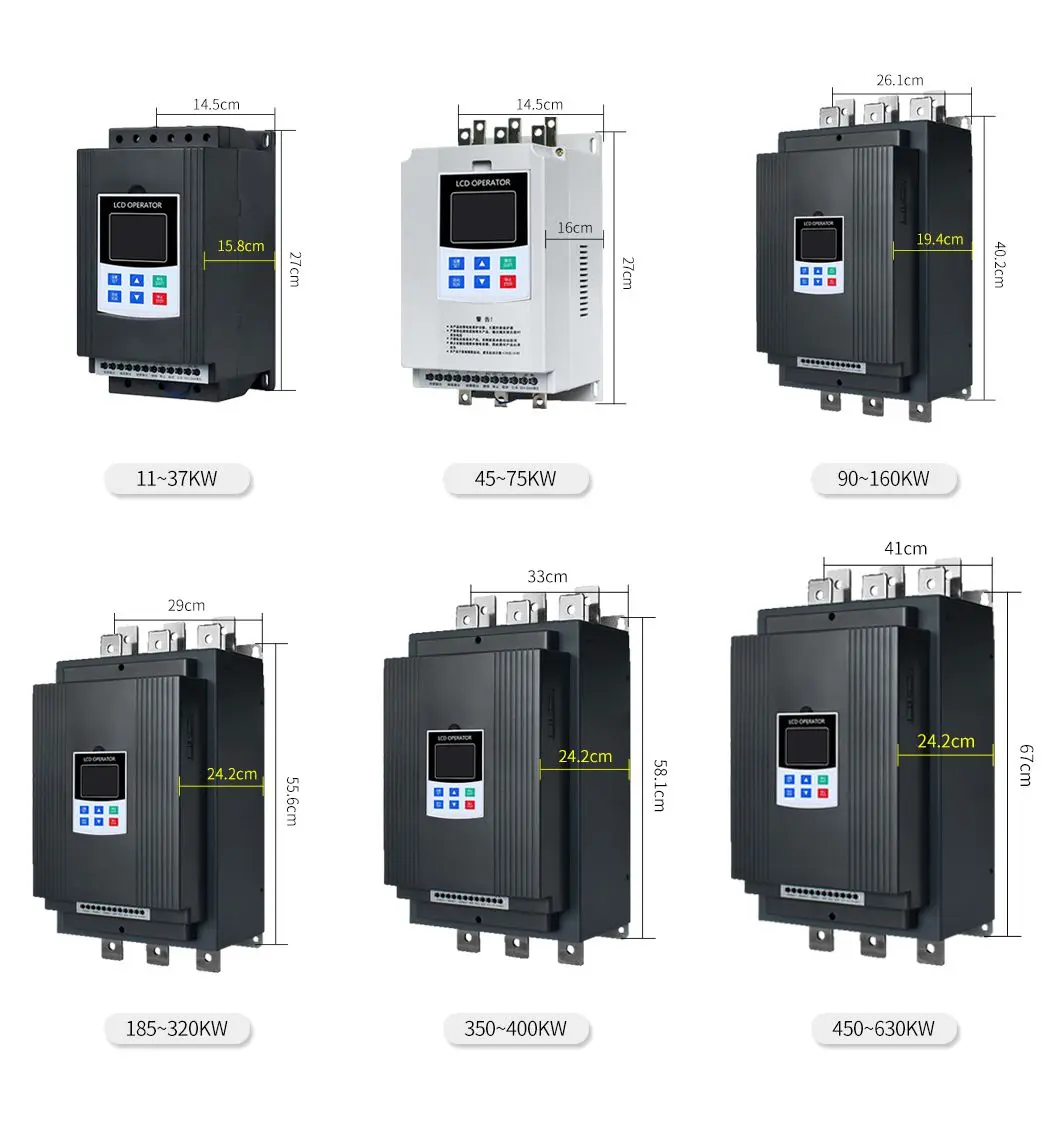

Installation Dimension |
13.3*24.9CM |
13.4*24.6CM |
19.7*37.9CM |
Hole intermediate distance |
9*11CM |
9*11CM |
9*11CM |
Mounting hole diameter |
M8 |
M8 |
M8 |
Soft Starter Size |
14.5*15.7*27CM |
14.8*16*27.5CM |
26.1*19.4*40.2CM |
Rated Power |
185/200/220/250/280/320KW |
350/400KW |
450/500/630KW |
Rated Current |
370/400/440/500/560/640A |
700/800A |
900/1000/1200A |
Installation Dimension |
26.2*47.4CM |
26.5*51CM |
26.5*51CM |
Hole intermediate distance |
9*11CM |
9*11CM |
9*11CM |
Mounting hole diameter |
M8 |
M8 |
M8 |
Soft Starter Size |
29*24.2*55.6CM |
33*24.3*58.1CM |
41*24.2*67CM |
Application:
• Fluid Handling (Pumps & Fans): Used in water treatment, HVAC, and industrial ventilation to minimize mechanical stress and improve energy efficiency during startup.
• Material Transport (Conveyors & Belt Drives): Ensures gradual motor speed increase, reducing equipment wear and enhancing operational efficiency.
• Compression Systems (Compressors): Reduces inrush current and mechanical stress in air conditioning, refrigeration, and industrial compressor applications.
• Mixing & Agitation (Mixers & Agitators): Provides smooth, controlled startups in food processing, chemical facilities, and wastewater treatment, minimizing vibration and improving efficiency.
• Size Reduction (Crushers & Mills): Used in mining, cement, and aggregate processing to decrease mechanical stress and enhance energy efficiency.
• Material Transport (Conveyors & Belt Drives): Ensures gradual motor speed increase, reducing equipment wear and enhancing operational efficiency.
• Compression Systems (Compressors): Reduces inrush current and mechanical stress in air conditioning, refrigeration, and industrial compressor applications.
• Mixing & Agitation (Mixers & Agitators): Provides smooth, controlled startups in food processing, chemical facilities, and wastewater treatment, minimizing vibration and improving efficiency.
• Size Reduction (Crushers & Mills): Used in mining, cement, and aggregate processing to decrease mechanical stress and enhance energy efficiency.
