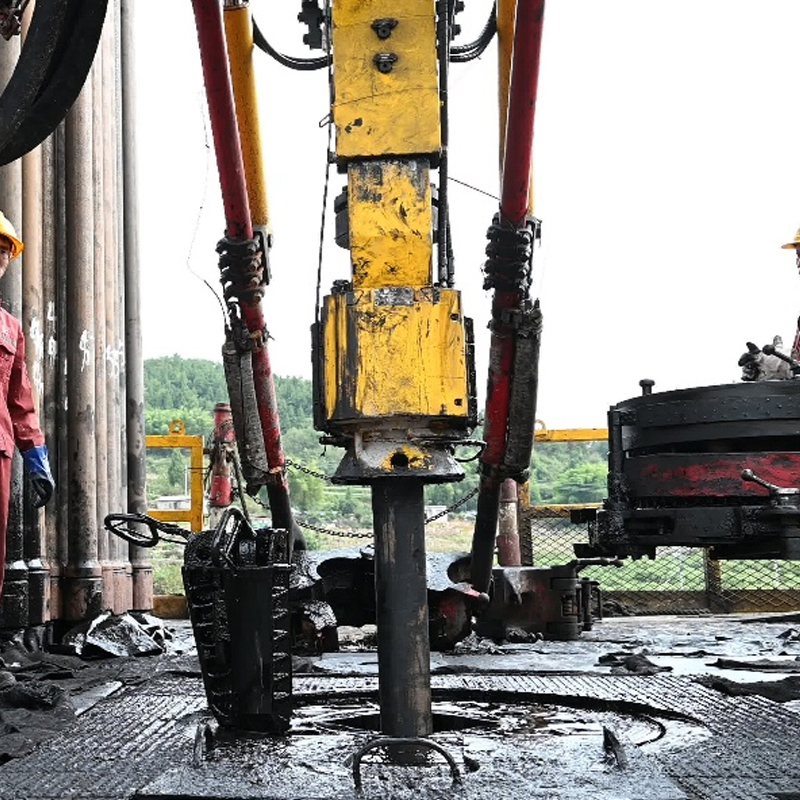

Maximize Drilling Efficiency with the PQ580SF Series Engineering Drive Frequency Converter Introduction

In the demanding world of oil and gas resource extraction, drilling operations are paramount. Equipment efficiency directly impacts costs and resource utilization.1 Traditional drilling systems, relying on mechanical speed regulation or DC motors, often suffer from high energy consumption, slow response times, and frequent maintenance. The groundbreaking PQ580SF Series Engineering Drive Frequency Converter is transforming the drilling industry, offering a highly efficient and intelligent drive control solution that significantly enhances drilling system performance and reliability.

Key Drive Requirements for Modern Drilling Equipment

To excel in diverse drilling environments, equipment must meet these critical requirements:

• Rapid Dynamic Response: Instantly adjust speed and torque to handle varying formations (soft soil, hard rock).
• Optimal Energy Efficiency: Reduce high-power consumption (hundreds to thousands of kilowatts), which accounts for over 30% of extraction costs.
• Robust Environmental Adaptability: Withstand harsh conditions (high temperatures, humidity, dust) with high protection ratings and interference resistance.
• Intelligent Control: Coordinate multiple parameters (drilling pressure, speed, mud flow) to minimize human error.

PQ580SF Series Core Application Scenarios in Drilling Operations

• Drilling Rig Main Drive System:

• • Control drill pipe rotation speed for optimal adaptation to various formations.
  • Vector control technology delivers low-frequency, high-torque output at 0.5Hz for stable hard rock drilling.
  • Load prediction algorithms enable real-time speed adjustments, preventing drill bit jamming.
  • Case Study: Drilling platform using the PQ580SF Series saw a 25% increase in drilling efficiency and an 80% reduction in jamming.

• Mud Pump Drive System:

• • Precisely control mud flow and pressure for stable drilling fluid circulation.
  • PID closed-loop control minimizes flow fluctuations from ±15% to ±3%.
  • Multi-pump parallel control balances equipment wear and extends service life.
  • Case Study: Deep-well project reduced energy consumption by 30% and extended maintenance intervals by 50%.

• Hoisting System Drive:

• • Enable smooth drill pipe lifting and lowering for safe, efficient operations.
  • Minimize mechanical shocks with smooth start-stop functionality, extending wire rope and gearbox lifespan.
  • Position closed-loop control improves drill pipe positioning accuracy.
  • Case Study: Offshore platform experienced a 20% increase in hoisting efficiency and a 60% reduction in equipment failures.

PQ580SF Series Technical Advantages

• Superior Energy Efficiency: V/F and vector control dynamically adjust power, achieving 20-40% energy savings. Sleep-wake functionality minimizes idle power consumption.
• Unwavering Reliability: Industrial-grade components, robust protection (overcurrent, overvoltage, overheating), and IP54/IP55 ratings for harsh environments.
• Intelligent Control: Integrated PLC functionality, Modbus/Profibus communication, remote monitoring, and fault diagnosis. IoT technology for real-time data analysis.

Real-World Impact: Deep-Well Oilfield Upgrade

• Challenge: High energy costs, frequent failures, low drilling efficiency in a harsh desert environment.
• Solution: Implemented PQ580SF Series Drives for drilling rig, mud pump, and hoisting systems. Multi-machine coordinated control for optimized drilling.
• Results: 23.7% shorter drilling cycle, 36.6% reduced electricity costs, 81.3% less downtime, and 40% lower maintenance costs.

The Future of Drilling Technology

• Higher Power Density: High-power drives for ultra-deep wells (>8,000 meters).
• AI-Driven Optimization: Adaptive control and predictive maintenance via artificial intelligence.
• Sustainable Energy: Energy feedback technology for regenerative braking.

Conclusion

The PQ580SF Series Engineering Drive Frequency Converter is revolutionizing drilling operations, addressing traditional system limitations with intelligent, efficient control. Enhance your drilling efficiency, reliability, and cost-effectiveness. Contact our technical support team today for details on technical specifications and customized solutions.
