Wholesale Three Phase SBW-150kVA AC Copper Automatic SVC Compensating AVR 380V Voltage Stabilizer/Regulator
Spu:
1601484741021
- Overview
- Recommended Products
Products Description
The SBW series three-phase fully automatic compensated power voltage regulator is suitable for applications where voltage fluctuations are caused by variations in the external power grid voltage or load changes. It automatically maintains a stable output voltage. Compared with other types of voltage regulators, this series offers advantages such as large capacity, high efficiency, no waveform distortion, and smooth voltage regulation. It is suitable for a wide range of loads, can with stand instantaneous overload, and can operate continuously for long periods. It supports manual/automatic switching and is equipped with overvoltage protection, phase loss protection, phase sequence protection, and automatic protection against mechanical failures. In addition, the unit features a compact size, light weight, easy installation, and reliable operation.
The Wholesale Three Phase SBW-150kVA AC Copper Automatic SVC Compensating AVR 380V Voltage Stabilizer/Regulator represents a sophisticated electrical infrastructure solution designed specifically for international B2B sourcing scenarios where reliable power conditioning equipment is essential for industrial operations. This advanced voltage stabilization system incorporates high-grade copper conductors and automatic static var compensation technology to deliver consistent power quality management across diverse commercial and industrial environments.
Technical Specfication
Input Voltage Range: |
3PH 304V-456V customizable |
Output Voltage: |
3PH 380V |
Rated Power: |
50 KVA -3000 KVA |
Voltage Accuracy: |
(2-5%) Adjustable |
Frequency: |
50-60Hz |
Response Time: |
≤1.5s (When external voltage changes by 10%) |
Waveform Distortion: |
No additional waveform distortion |
Efficiency: |
≥90% (Power rating above 50KVA) |
Mains Bypass: |
Convenient switching between mains supply and stabilized output for three-phase products |
Starting Method: |
Automatic startup on power-up or manual startup selectable |
Operating Mode: |
Can operate continuously unattended for long periods |
Protection Features: |
Overvoltage protection, overcurrent protection, phase loss and phase sequence protection for units above 150KVA |
Details Images

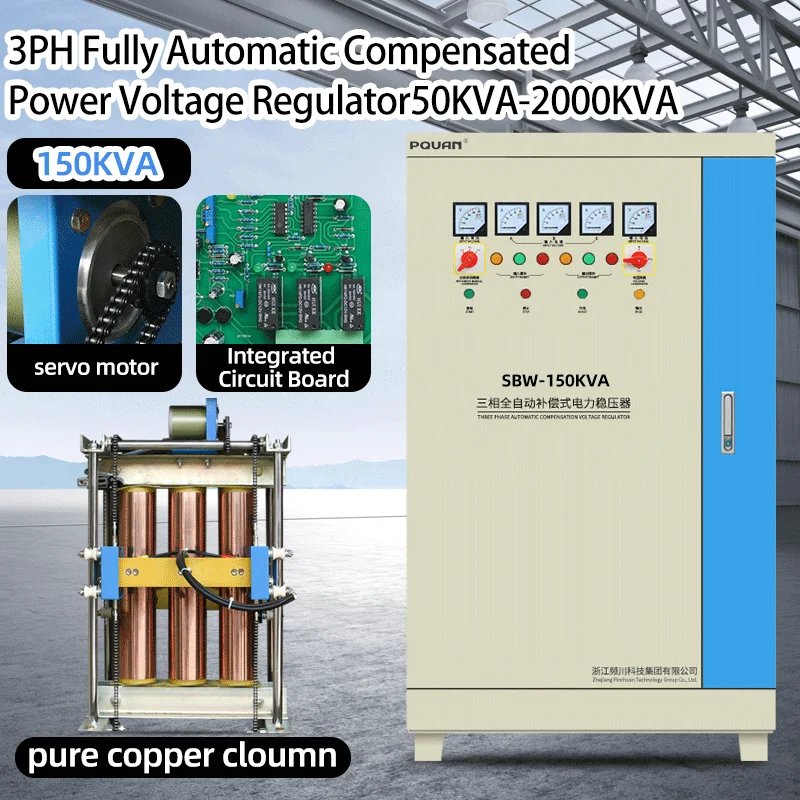

Pure copper column is the core component of the voltage regulator, and excellent copper column can maintain the long-term use of the voltage regulator
Lower resistivity
Strong electrical conductivity
Strong electrical conductivity

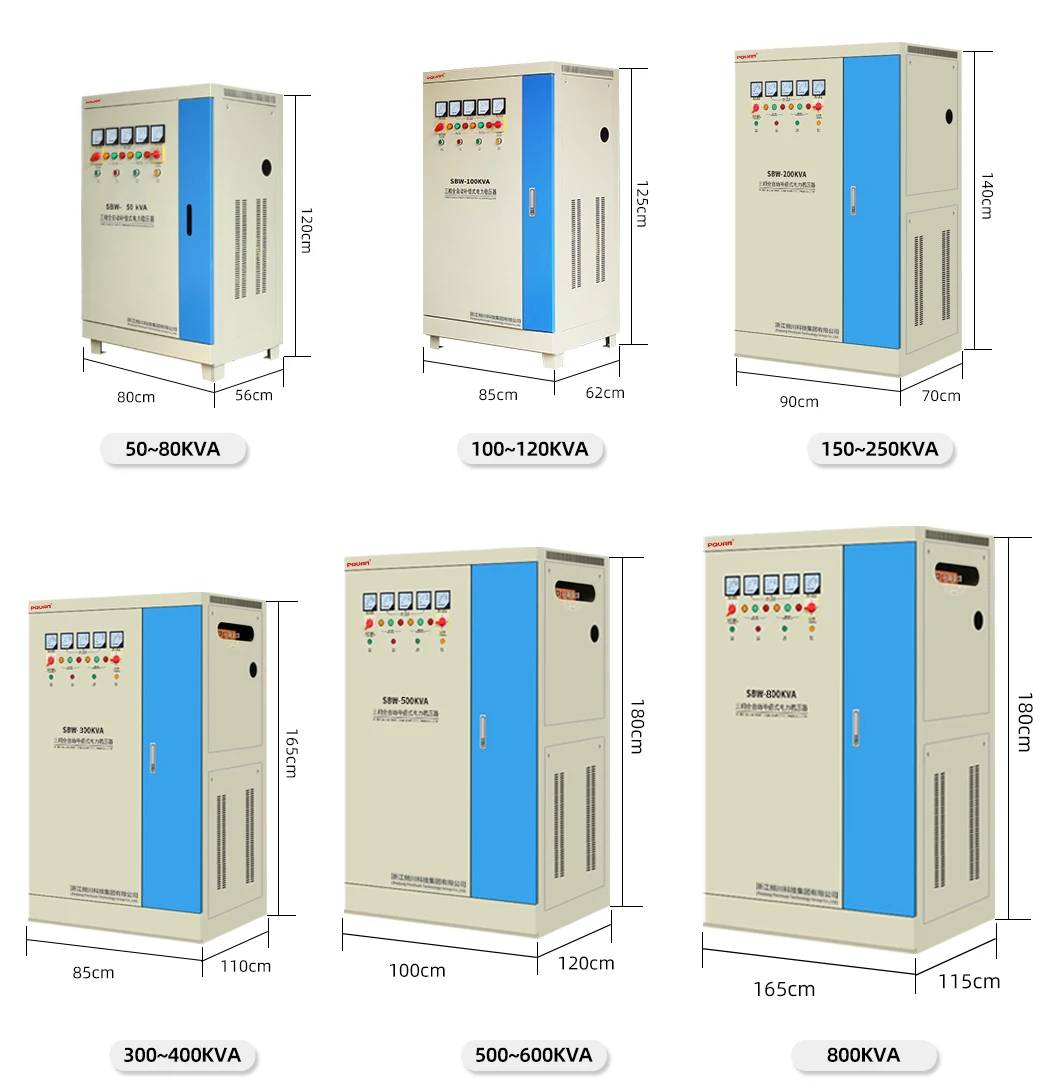

Specifications and Model
Item NO. |
Output Voltage(KVA) |
Size (cm) |
G.W(kg) |
SBW-50KVA |
50 |
80 × 56 × 120 |
240 |
SBW-80KVA |
80 |
85 × 56 × 120 |
280 |
SBW-100KVA |
100 |
85 × 62 × 140 |
320 |
SBW-120KVA |
120 |
85 × 62 × 140 |
330 |
SBW-150KVA |
150 |
100 × 70 × 160 |
460 |
SBW-200KVA |
200 |
100 × 70 × 160 |
480 |
SBW-250KVA |
250 |
100 × 70× 160 |
580 |
SBW-300KVA |
300 |
85 × 110 × 180 |
660 |
SBW-350KVA |
350 |
85 × 110 × 180 |
850 |
SBW-400KVA |
400 |
85 × 110 × 180 |
780 |
SBW-500KVA |
500 |
110 × 120 × 190 |
1050 |
SBW-600KVA |
600 |
110 × 120 × 190 |
1100 |
SBW-800KVA |
800 |
165 × 110 × 180 |
1950 |
SBW-1000KVA |
1000 |
175 × 120 × 190 |
2300 |
SBW-1200KVA |
1200 |
185 × 125 × 200 |
2600 |
Application:
This series of voltage stabilizers is widely used in industrial, agricultural, medical, broadcasting, telecommunications, scientific research, cultural fields, and other areas where small and medium-sized electromechanical equipment, production lines, construction machinery, microcomputers, embroidery machines, air conditioners, refrigerators, audio equipment, televisions, and other household appliances, lighting, and other equipment requiring voltage stabilization are used.
