PQUAN High-Efficiency 0.75KW VFD with Vector Control for Industrial Pumps & Fans CE Certified

PQUAN High-Efficiency 0.75KW VFD with Vector Control for Industrial Pumps & Fans CE Certified

Spu:

1601481815712

Overview
Recommended Products

Products Description

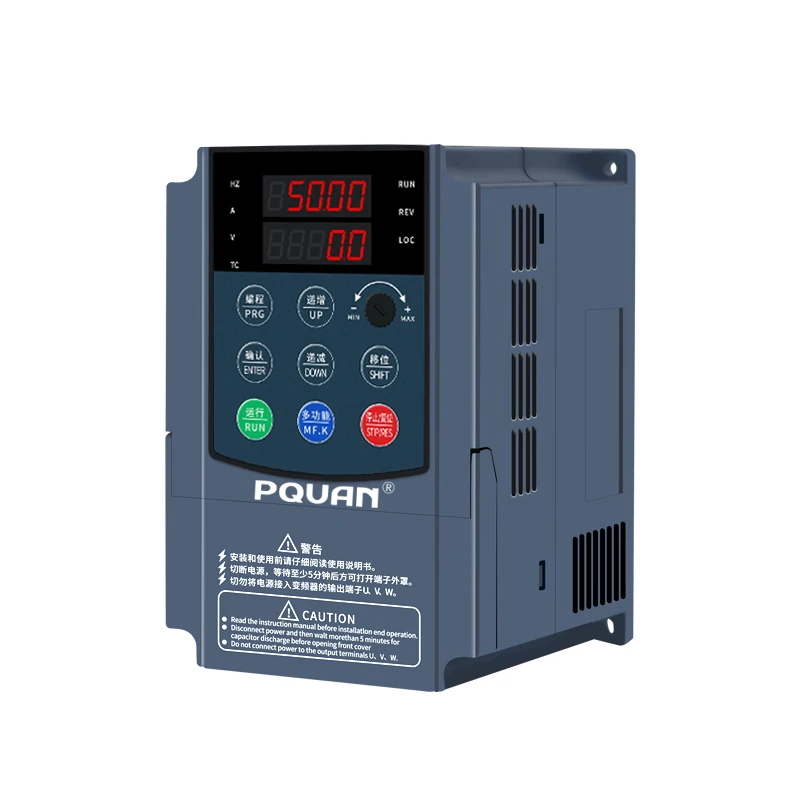

PQ580 Variable Frequency Drive

The PQ580 series from Frequenctech is a high-performance, multi-functional, integrated general-purpose (GP) variable frequency drive (VFD) that incorporates features such as high efficiency, intelligence, ease of use, cost-effectiveness, high quality, and excellent service. The integrated GP design philosophy provides broader applicability and a more convenient user experience. This series supports the Modbus communication protocol, enables integrated driving of synchronous and asynchronous motors, and incorporates various control, communication, making it widely applicable in various scenarios requiring asynchronous motor speed control, such as wind power, water pumps, and industrial automation. Leveraging advanced vector control technology and powerful communication capabilities, the PQ580 series provides outstanding reliability and efficiency for motor drives.

The PQUAN High-Efficiency 0.75KW VFD with Vector Control for Industrial Pumps & Fans CE Certified represents a sophisticated variable frequency drive solution engineered to meet the demanding requirements of international industrial automation markets, where precise motor control and energy optimization have become fundamental considerations for manufacturing facilities, processing plants, and commercial building systems worldwide. This advanced frequency converter incorporates vector control technology that enables superior torque characteristics and speed regulation across diverse operating conditions, making it particularly suitable for applications involving centrifugal pumps, cooling fans, ventilation systems, and various rotational equipment commonly found in water treatment facilities, HVAC installations, and industrial processing environments.

PQUAN High-Efficiency 0.75KW VFD with Vector Control for Industrial Pumps & Fans CE Certified details

Sales Highlight Point

Function &Parameter:
• VFD drives inbuilt vector control for ACIM and PMSM motor
• VFD control mode is V/F control or SVC open circuit vector
• Employs the latest generation IGBT power modules for quiet operation.
• The inverter features an integrated G/P design for easy customer applicability
• VFD output frequency Max 3000Hz.
• VFD Torque boost function of the electric motor by up to 30%
• VFD has a Standard built-in brake unit for 0.4KW- 30KW
• VFD MODBUS support standard RS-485 physical communication interface
• VFD removable panel with external installation up to 50m
• VFD Built-in PID, PLC, AVR, JOG, Timers, protections, EMC filter
• VFD has safety function EMS emergency machine stop
• VFD has 6 digital inputs, including 1 high-speed 20KHz pulse; 2 analog inputs are integrated input 0-10V and 4-20 mA input terminal
• VFD has 1 digital , 2 analog output support 0~20mA or 0~10V and 2 relay output terminal

Main Features:
• Two control modes: Vector Control (SVC), V/F control
• Multi-segment V/F curve setting function
• Starting torque: 150% at 0.5Hz with sensorless vector control (SVC)
• Built-in PID control function, which can realize closed-loop constant temperature and constant pressure control
• Supports multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting
• Supports multi-speed and swing frequency operation, and 16-speed control can be realized through external terminals.
• I/O terminals can be freely programmed to combine various working modes according to user needs.
• Has skip frequency control function, which can effectively suppress mechanical resonance and make the system more stable and reliable.
• Has instantaneous power loss ride-through function, which can avoid production interruption due to instantaneous power failure.
• Main/auxiliary frequency switching function, run command switching function, local/remote switching function
• Automatic voltage regulation function, effectively solving the problem of low-frequency oscillation of high-power motors
• Provides multiple fault protection functions: comprehensive real-time monitoring and protection against overcurrent, overvoltage, undervoltage, overheat, overload, phase loss, etc.

Technical Specfication

_{Input Voltage (V)}	1PH AC220V ±10% 50~60Hz; 3PH AC220V ±10% 50~60Hz; 3PH AC380V ±15% 50~60Hz
_{Output Voltage(V)}	3PH AC 0~input voltage; 3PH AC 0~input voltage; 3PH AC 0~input voltage
Power Range (KVA)	0.4KW~2.2KW; 0.4KW~75KW; 0.75KW~700KW
_{Output Frequency Range}	0~500Hz
Control Mode	V/F, SVC0, SVC2
_{Starting Torque}	0.5Hz/180%(SVC)
_{Overload Capability}	G type: 150% rated current 60s,180% rated current 3s P type: 120% rated current 60s,150% rated current 3s
_{Communication Port}	RS-485:Modbus
_{Protection Level}	IP20
_{Cooling Method}	Forced air cooling
_{Fault Protection}	Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.

Details Images

PQUAN High-Efficiency 0.75KW VFD with Vector Control for Industrial Pumps & Fans CE Certified supplier

Multi-mode adjustment

0-500Hz, Adjustable

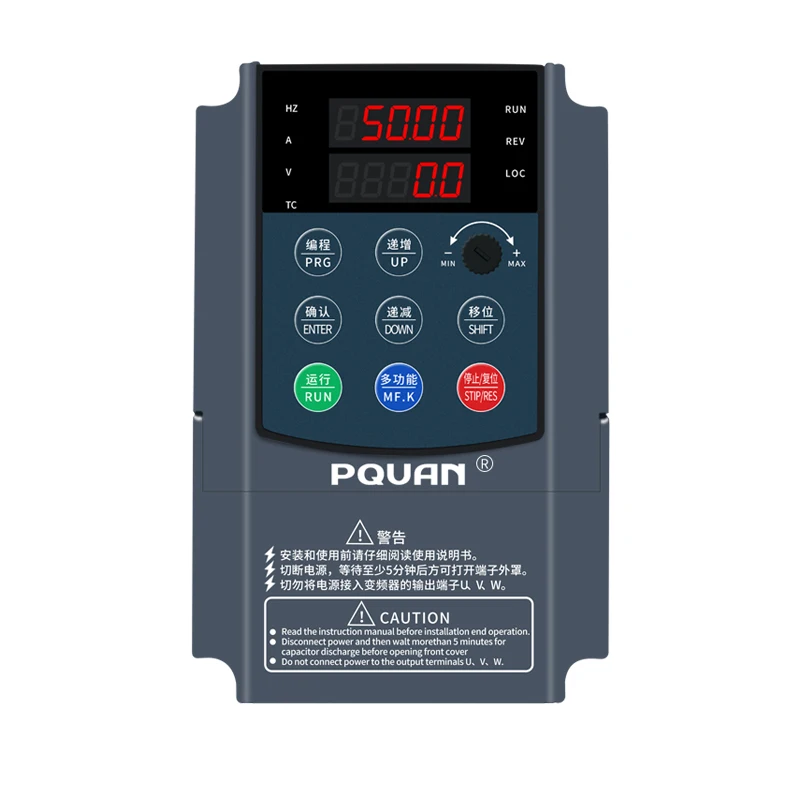

Double-line display
Multi-function, double line display

Free speed regulation
Easy adjustment, flexible control

Protective Motor
Smooth start, motor stable operation

Save Energy and electricity
Low frequency torque, save unnecessary energy consumption

Multiple Protection
The safety guarantee, protects the escort for the equipment

PQUAN High-Efficiency 0.75KW VFD with Vector Control for Industrial Pumps & Fans CE Certified factory

PQUAN High-Efficiency 0.75KW VFD with Vector Control for Industrial Pumps & Fans CE Certified manufacture

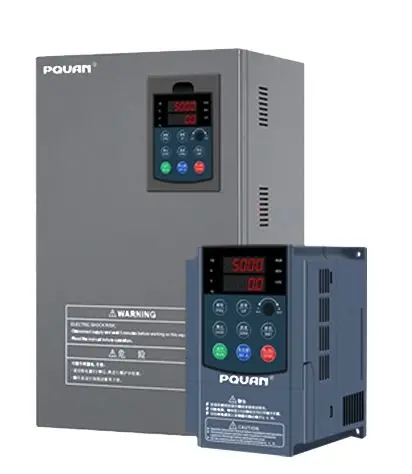

Specifications and Model

Style number	PQ580-FI-FIG.1	PQ580-FIG.2	PQ580-FIG.3	PQ580-FIG.4
Porduct Volotage	0.75/1.5/2.2/3.0KW	4/5.5KW	7.5/11KW	15/18.5/22KW

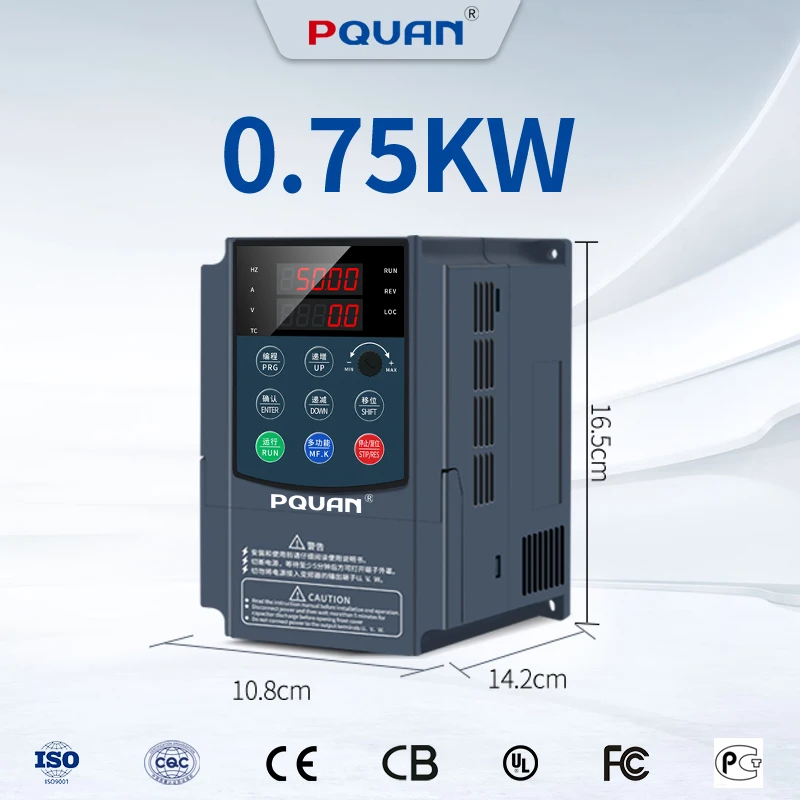

Installation Dimension	15.3CM*9.6CM	10.8CM*17.6CM	14.8CM/23.7CM	20.5CM*30.5CM
VFD Dimension	10.814.216.5CM	1215.618.6CM	16.217.725	21.819.631.9
Mounting hole diameter	Φ5.0	Φ5.0	Φ5	Φ6
G.W	1.65KG	2KG	4KG	7KG

Style number	PQ580-FIG.5	PQ580-FIG.6	PQ580-FIG.7
Porduct Volotage	30KW	37/45KW	55/75KW
Installation Dimension	16CM*34.5CM	18CM*41.2CM	20CM*57CM
VFD Dimension	222136CM	2622.543CM	26.22859CM
Mounting hole diameter	Φ6.5	Φ6.5	Φ6.5
G.W	11KG	16KG	28KG

Style number	PQ580-FIG.8	PQ580-FIG.9	PQ580-FIG.10
Porduct Volotage	90/110/132KW	160/185KW	200/220/250/285KW
Installation Dimension	26CM*60CM	26CM*78CM	36CM*87.6CM
VFD Dimension	323062CM	3831.580CM	483590CM
Mounting hole diameter	Φ10	Φ10	Φ12
G.W	41KG	60KG	90KG

Style number	PQ580-FIG.11	PQ580-FIG.12	PQ580-FIG.13
Porduct Volotage	315/355KW	400/450/500KW	550/630KW
Installation Dimension	50CM*103.6CM	64CM*117.3CM	80CM*131.5CM
VFD Dimension	6535106CM	8635120CM	10039135CM
Mounting hole diameter	Φ12	Φ14	Φ14
G.W	150/153KG	180KG	294KG

Application:

Metal processing ,digital machine tool, wire drawing bench and other mechanical equipment . paper making equipment, chemistry industry ,medicine industry and textile industry ,all kinds of fans and pumping load .etc
