High Performance AC Soft Starter 3 Phase 11kw 50/60Hz Online Soft Starter
Spu:
1601481926347
- Overview
- Recommended Products

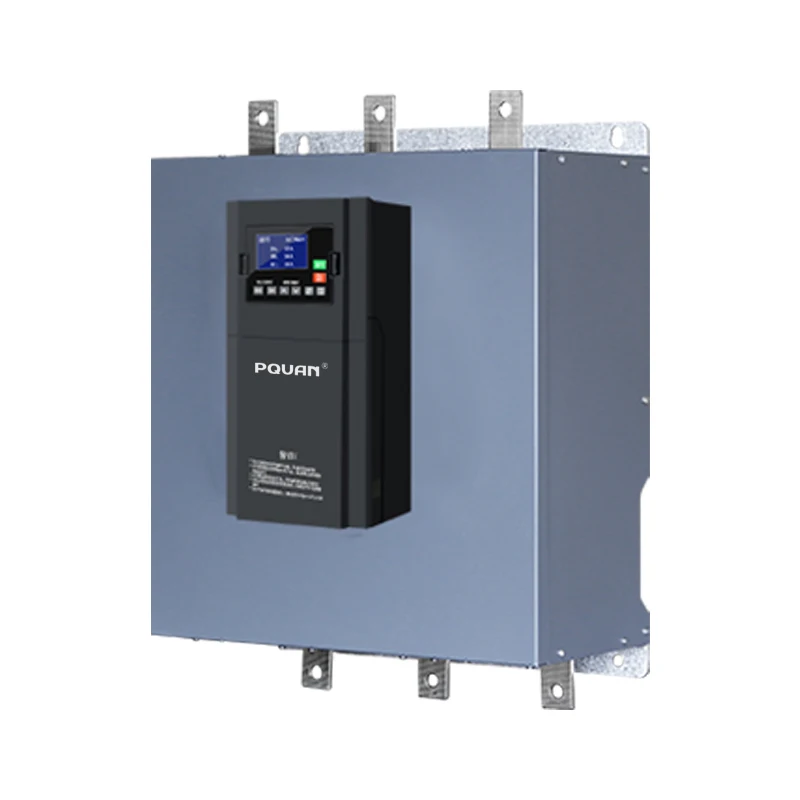

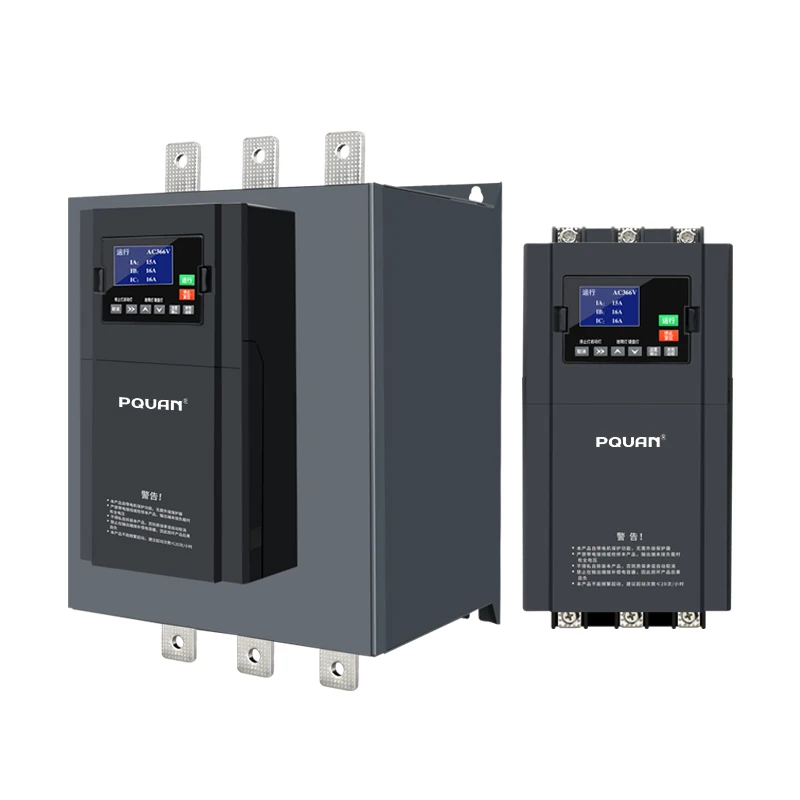

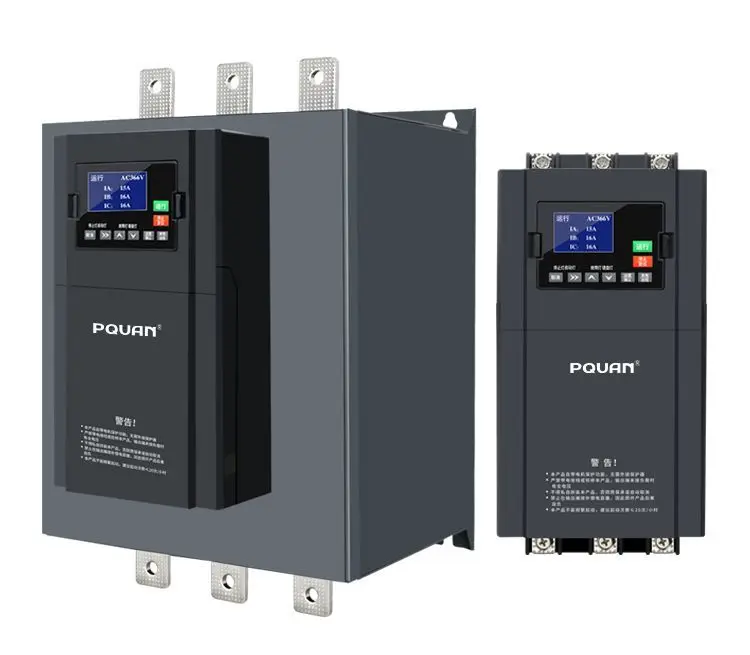

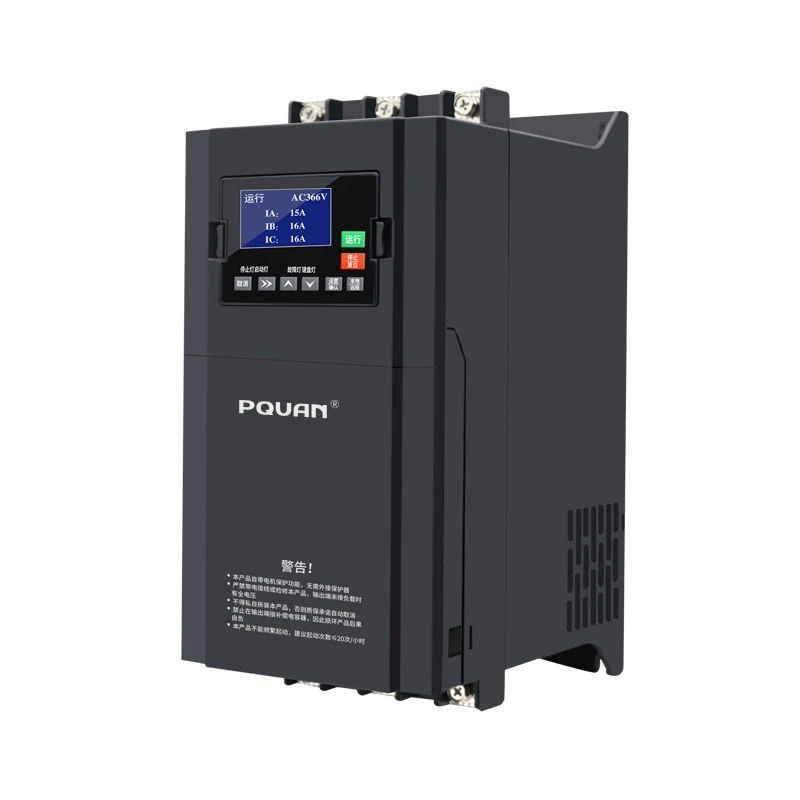

Products Description
The PQZR8-Z series online soft starter is a highly intelligent, reliable, and user-friendly solution designed to simplify setup and offer personalized control. Can be used for frequent start and stop occasion. This design adopts a three-in, three-out silicon-controlled full-time online structure, equipped with a high-power air-cooled radiator and a high-speed axial fan internally to ensure stable and reliable operation for extended periods. It does not require an external AC contactor but can only be used with a single motor.
The High Performance AC Soft Starter 3 Phase 11kw 50/60Hz Online Soft Starter represents a sophisticated motor control solution engineered to address the demanding requirements of industrial automation and power management systems across diverse manufacturing environments. This advanced electrical control device functions as a critical interface between power supply networks and three-phase motor applications, delivering precise voltage regulation and current limiting capabilities that protect valuable motor assets while optimizing operational efficiency. Industrial procurement teams and electrical contractors recognize soft starters as essential components for applications where traditional direct-on-line starting methods prove inadequate due to mechanical stress, power grid disturbances, or process control requirements. The dual frequency compatibility ensures seamless integration into both domestic and international power systems, making this solution particularly valuable for multinational manufacturing operations and export-oriented facilities that require consistent performance across varying electrical infrastructure standards.
Product Paramenters
Main Loop Operating Voltage: |
AC380V (±15%) |
Main Loop Operating Current: |
22A~560A |
Main Loop Frequency: |
50~60Hz (±2%) |
Soft Starting Rise Time: |
2~60s |
Soft Stop Time: |
0~60s |
Current Limiting Multiple: |
1.0~5.0 Ie (where Ie refers to rated current) |
Initial Voltage: |
30%~70% Ue (where Ue refers to rated voltage) |
Cooling Method: |
Forced Air Cooling / Fan Cooling |
Communication Method: |
RS485 Serial Communication |
Starts Per Hour: |
≤20 times/hour |
Input Power Supply: |
Three Phase 380V-15% ~ 415+10% 50/60Hz |
Adaptive Motor: |
Squirrel-cage three-phase asynchronous motor |
Starting Times: |
It is recommended not to exceed 20 times per hour. |
Control Mode: |
1) Operation panel control; |
2) Operation panel + external control; |
|
3) External control; |
|
4) External control + COM control; |
|
5) Operation panel + external + COM control; |
|
6) Operation panel + COM control; |
|
7) COM control; |
|
8) No start or stop operation. |
|
Start Mode: |
1) Current-limiting start; |
2) Voltage ramp start; |
|
3) Kick start + current-limiting start; |
|
4) Kick start + voltage ramp start; |
|
5) Current ramp start; |
|
6) Voltage current-limiting double closed-loop start. |
|
Stop Mode: |
1) Soft stop; |
2) Free stop. |
|
Place to be used: |
Indoor location with good ventilation free from corrosive gas and conductive dust. |
Altitude: |
Below 3000M. It have to rise the rate power when the altitude is more than 3000M. |
Ambient Temperature: |
-30~+55ºC |
Ambient Humidity: |
≤90%RH without dew condensation. |
Vibration: |
<0.5G |
Protection Class: |
IP20 |
Cooling Pattern: |
Natural wind cooling. |
Transport Package: |
Carton |
Trademark: |
PQUAN |
HS Code: |
85114010 |
Humidity: |
≤90% (20ºC±5ºC) |
Switch Mode: |
PWM Control |
Notice:
1. Protective grade: IP20.
2. Environmental conditions: The environment temperature is -10ºC~40ºC, and the humidity is ≤90% (20ºC±5ºC). There are indoor installation and good ventilation instead of condensation, flammable, explosive and corrosive gases and conductive dust.
3. The vibration is less than 0.6G and the capacity should be lowered accordingly for use when the elevation exceeds 1,000 m. Pursuant to actual rate current of the motor, rated output of soft starter should be reset at the time of use with reduced capacity to ensure accuracy of various control parameters and fault protection.
2. Environmental conditions: The environment temperature is -10ºC~40ºC, and the humidity is ≤90% (20ºC±5ºC). There are indoor installation and good ventilation instead of condensation, flammable, explosive and corrosive gases and conductive dust.
3. The vibration is less than 0.6G and the capacity should be lowered accordingly for use when the elevation exceeds 1,000 m. Pursuant to actual rate current of the motor, rated output of soft starter should be reset at the time of use with reduced capacity to ensure accuracy of various control parameters and fault protection.
Features:
• Intuitive Display:
Features a large LCD screen that displays feedback in multiple languages and tracks motor condition.
• Advanced Control: Offers advanced start and stop control functions with intuitive programming.
• Flexible Starting Parameters: Six selectable starting parameter sets allow a single soft starter to efficiently handle diverse motor load requirements.
• Dynamic Fault Memory: Facilitates rapid troubleshooting by providing detailed fault history and diagnostics.
• Comprehensive Motor Protection: Ensures reliable motor operation through a full suite of protective functions.
• Visual Display Options: Offers clear operational feedback via LED indicators or a more detailed LED display.
• Communication Protocols:
• Advanced Control: Offers advanced start and stop control functions with intuitive programming.
• Flexible Starting Parameters: Six selectable starting parameter sets allow a single soft starter to efficiently handle diverse motor load requirements.
• Dynamic Fault Memory: Facilitates rapid troubleshooting by providing detailed fault history and diagnostics.
• Comprehensive Motor Protection: Ensures reliable motor operation through a full suite of protective functions.
• Visual Display Options: Offers clear operational feedback via LED indicators or a more detailed LED display.
• Communication Protocols:
Provides seamless integration with industrial control systems through Modbus communication protocols.
• Compact and User-Friendly Design: Features a space-saving structure for easy installation and intuitive operation.
• Function-Grouped Menu: Simplifies configuration and operation with a logically organized menu structure.
• Remote Display and Diagnostics: Convenient external cabinet display installation via an optional panel mounting kit, with support for side-by-side multiple displays for rapid troubleshooting.
• Precise Soft Stop Control: CPU-controlled soft stop functionality ensures smooth deceleration, ideal for applications sensitive to sudden stops or "hammer effect" impacts.
• Innovative Cooling System: 360-degree omnidirectional heat dissipation via a high-speed fan and optimized in/out ventilation grille
• Versatile Starting Modes:Current limiting start,Voltage ramp start,Kick start + current-limiting start, Kick start + voltage ramp start, Current ramp start, Voltage current-limiting double closed-loop start
• Compact and User-Friendly Design: Features a space-saving structure for easy installation and intuitive operation.
• Function-Grouped Menu: Simplifies configuration and operation with a logically organized menu structure.
• Remote Display and Diagnostics: Convenient external cabinet display installation via an optional panel mounting kit, with support for side-by-side multiple displays for rapid troubleshooting.
• Precise Soft Stop Control: CPU-controlled soft stop functionality ensures smooth deceleration, ideal for applications sensitive to sudden stops or "hammer effect" impacts.
• Innovative Cooling System: 360-degree omnidirectional heat dissipation via a high-speed fan and optimized in/out ventilation grille
• Versatile Starting Modes:Current limiting start,Voltage ramp start,Kick start + current-limiting start, Kick start + voltage ramp start, Current ramp start, Voltage current-limiting double closed-loop start

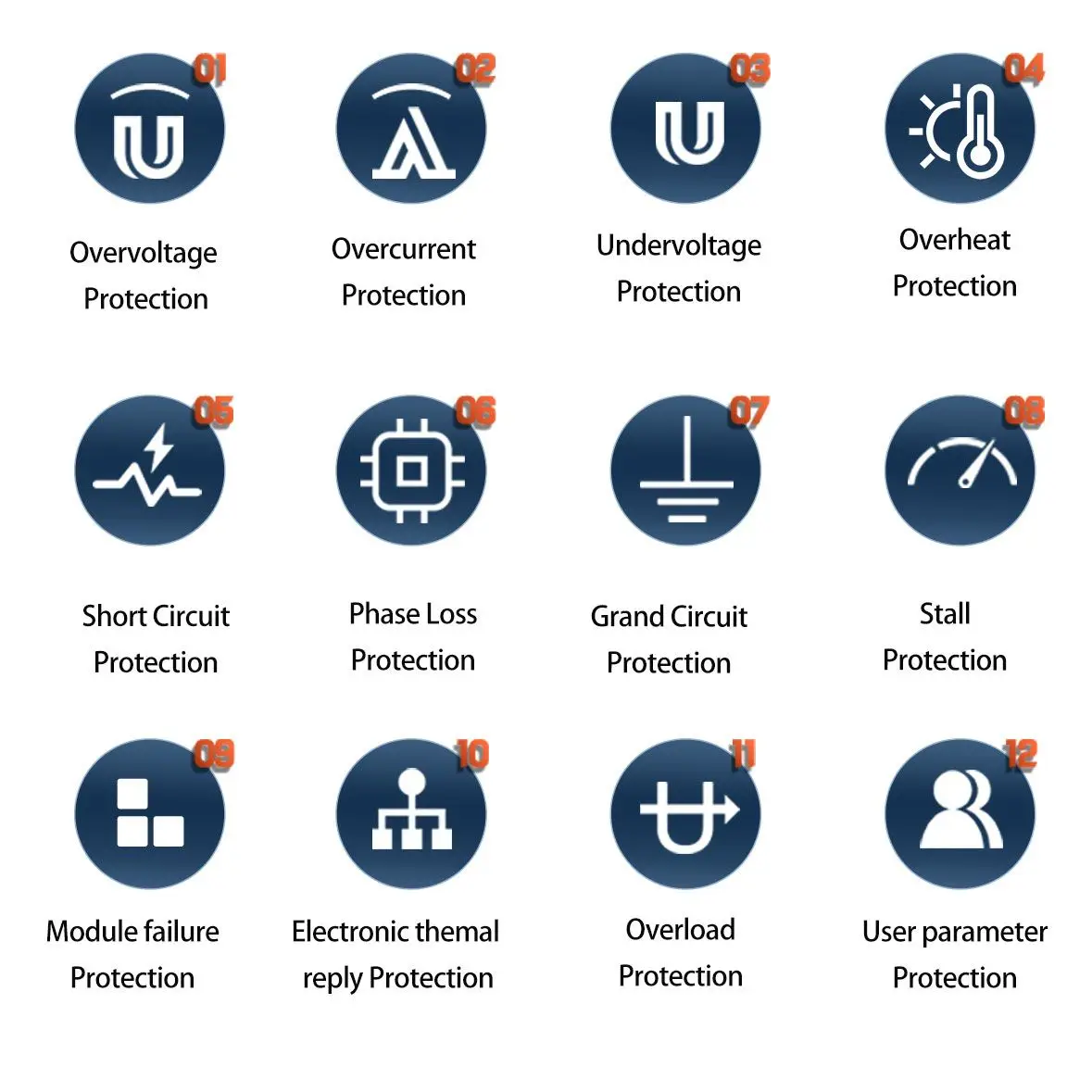

Product Protection:
• Soft Start / Soft Stop
• Overload Protection
• Overheat Protection
• Overvoltage Protection
• Load Loss Protection
• Undervoltage Protection
• Overcurrent Protection
• Phase Loss Protection
• Constant Torque Load

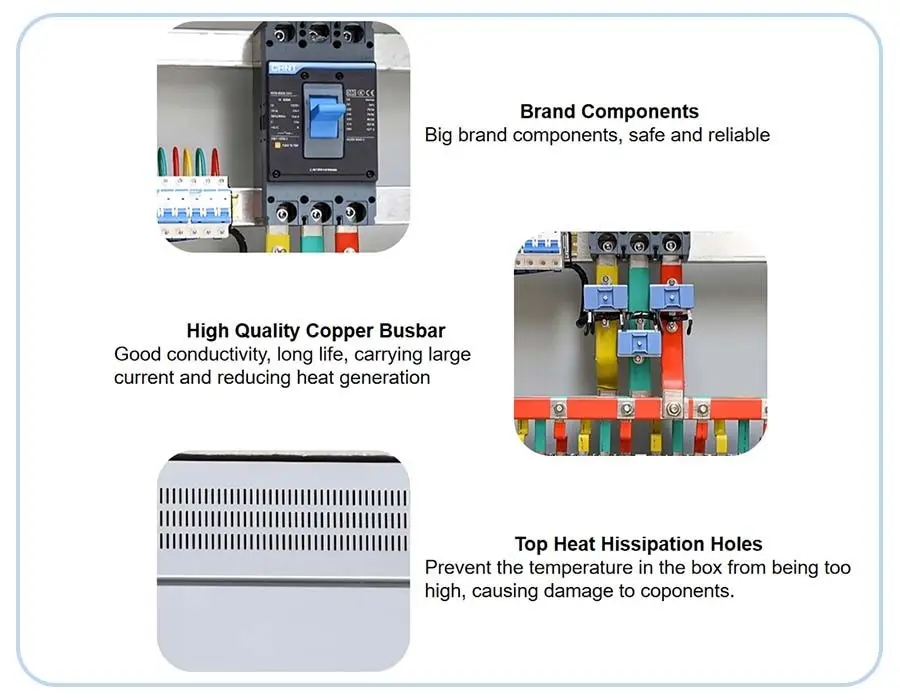

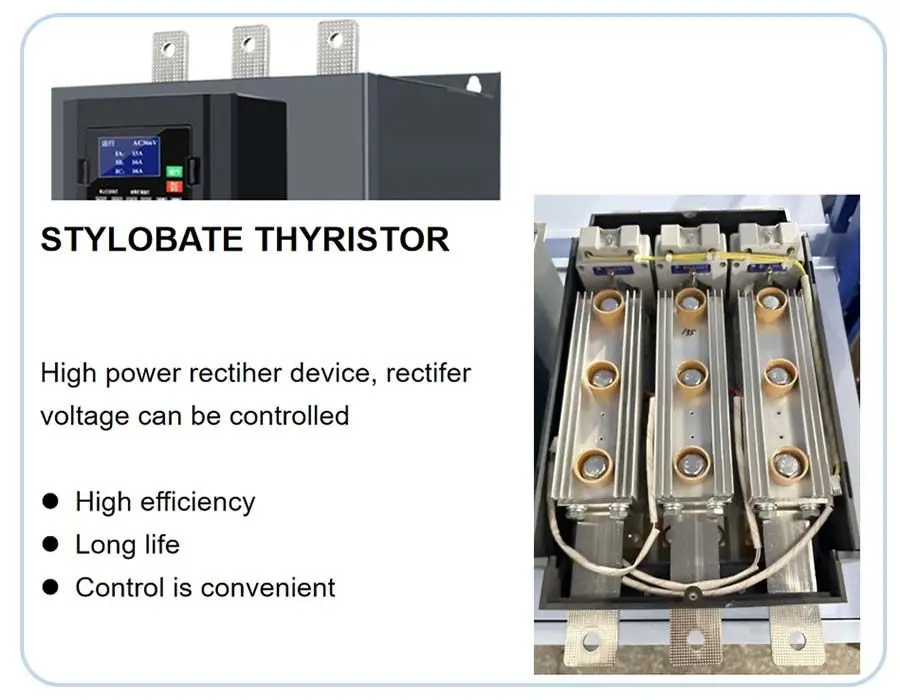

Details Images

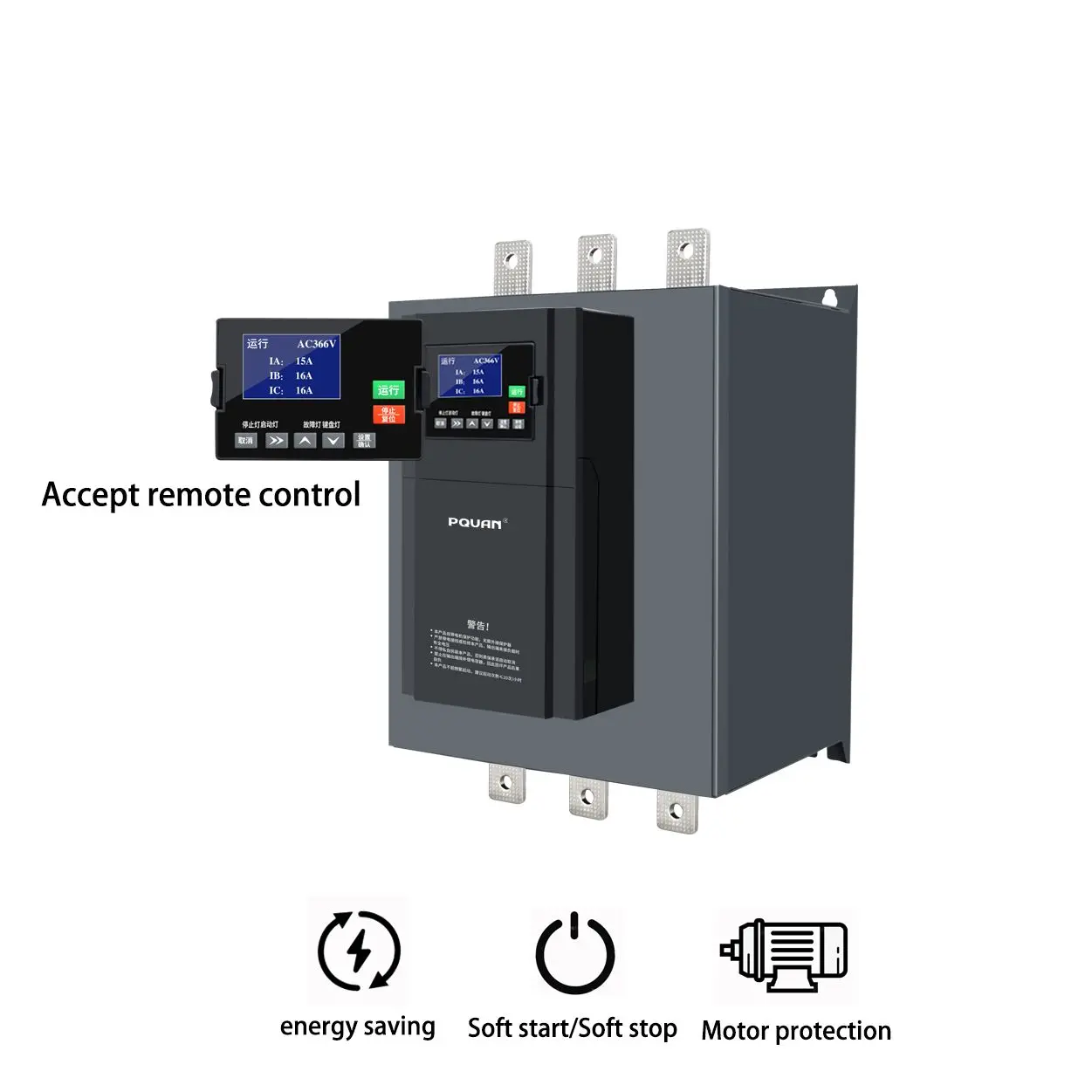

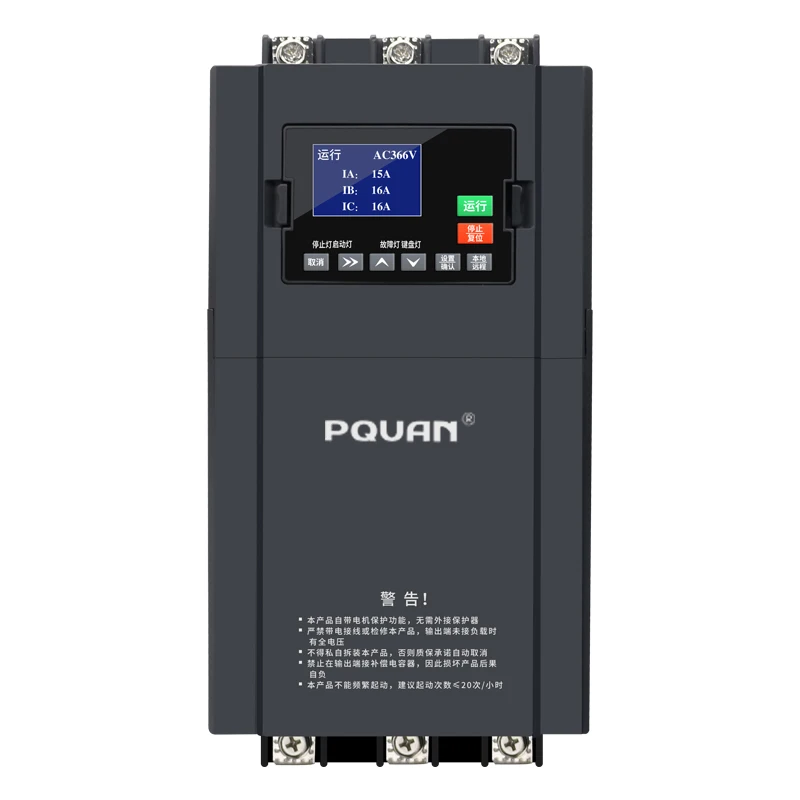

Remotely installable operation panel

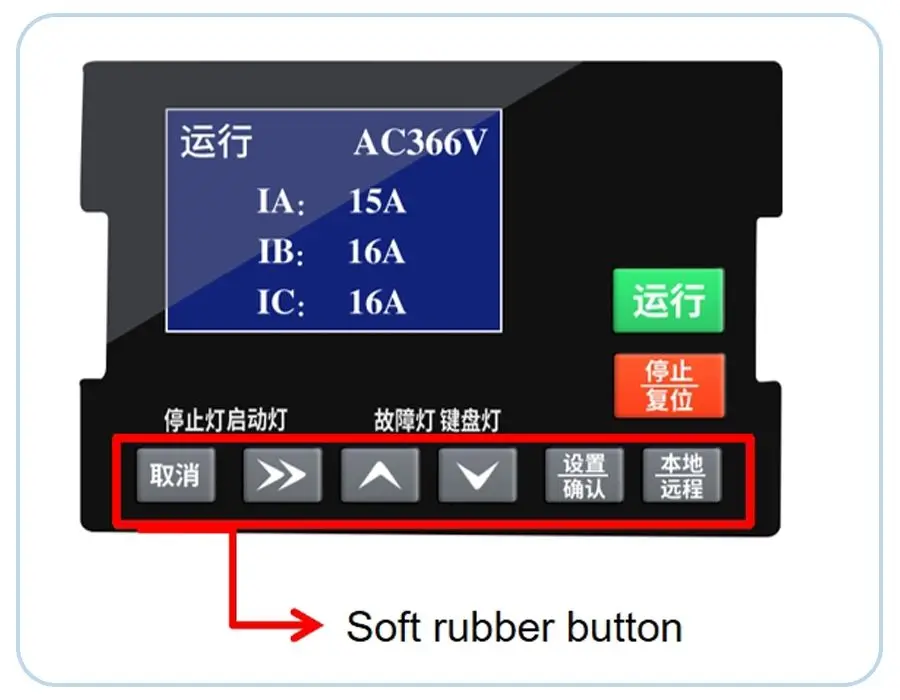

Simultaneously display multiple sets of data, machine operation status at a glance

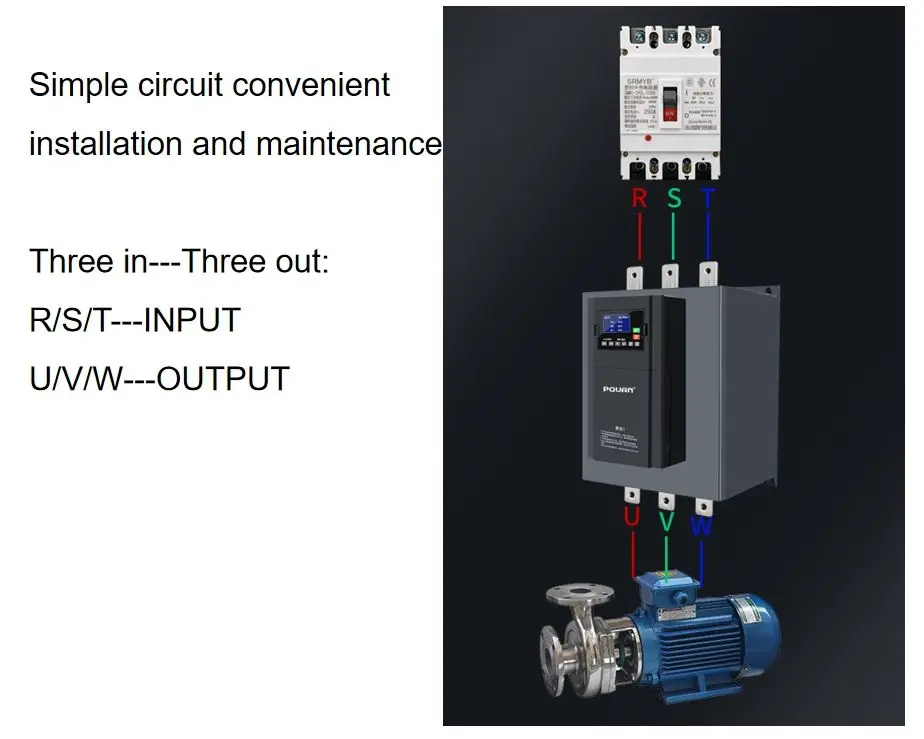

Wiring diagram: Operation mode:
Control Mode |
1) Operation panel control |
2) Operation panel + external control |
|
3) External control |
|
4) External control + COM control |
|
5) Operation panel + external + COM control |
|
6) Operation panel + COM control |
|
7) COM control |
|
8) No start or stop operation |
|
Start Mode |
1) Current-limiting start |
2) Voltage ramp start |
|
3) Kick start + current-limiting start |
|
4) Kick start + voltage ramp start |
|
5) Current ramp start |
|
6) Voltage current-limiting double closed-loop start |
|
Stop Mode |
1) Soft stop |
2) Free stop |
Specifications and Model
Rated Power |
15/22/30/37/45/55/75KW |
90/115KW |
132/160/185/200KW |
Rated Current |
30/44/60/75/90/110/150A |
180/230A |
264/320/370/400A |
Installation Dimension |
12.2*27.5CM |
17.2*33CM |
22.3*35CM |
Hole intermediate distance |
9.8*6.8CM |
9.8*6.8CM |
9.8*6.8CM |
Mounting hole diameter |
M6 |
M8 |
M10 |
Soft Starter Size |
14.4*19.5*29.4CM |
21*25.6*34.5CM |
27*21.7*36.5CM |
Rated Power |
220/250/280/320/350/400KW |
450/500/630KW |
Rated Current |
440/500/560/640/700/800A |
900/1000/1260A |
Installation Dimension |
37.1*51.6CM |
54.9*66.9CM |
Hole intermediate distance |
9.8*6.8CM |
9.8*6.8CM |
Mounting hole diameter |
M10 |
M10 |
Soft Starter Size |
46*26.3*54.2CM |
61.6*33.2*69.2CM |
Application:
• Fluid Handling (Pumps & Fans): Used in water treatment, HVAC, and industrial ventilation to minimize mechanical stress and improve energy efficiency during startup.
• Material Transport (Conveyors & Belt Drives): Ensures gradual motor speed increase, reducing equipment wear and enhancing operational efficiency.
• Compression Systems (Compressors): Reduces inrush current and mechanical stress in air conditioning, refrigeration, and industrial compressor applications.
• Mixing & Agitation (Mixers & Agitators): Provides smooth, controlled startups in food processing, chemical facilities, and wastewater treatment, minimizing vibration and improving efficiency.
• Size Reduction (Crushers & Mills): Used in mining, cement, and aggregate processing to decrease mechanical stress and enhance energy efficiency.
• Material Transport (Conveyors & Belt Drives): Ensures gradual motor speed increase, reducing equipment wear and enhancing operational efficiency.
• Compression Systems (Compressors): Reduces inrush current and mechanical stress in air conditioning, refrigeration, and industrial compressor applications.
• Mixing & Agitation (Mixers & Agitators): Provides smooth, controlled startups in food processing, chemical facilities, and wastewater treatment, minimizing vibration and improving efficiency.
• Size Reduction (Crushers & Mills): Used in mining, cement, and aggregate processing to decrease mechanical stress and enhance energy efficiency.
