3 Phase Solar Pump VFD 380V 0.75-4kW Vector Control for Submersible Pump

3 Phase Solar Pump VFD 380V 0.75-4kW Vector Control for Submersible Pump

Spu:

1601516326161

Overview
Recommended Products

Products Description

3 Phase Solar Pump VFD 380V 0.75-4kW Vector Control for Submersible Pump factory

SAVE THE ENERGY SAFE THE WORLD

The 3 Phase Solar Pump VFD 380V 0.75-4kW Vector Control for Submersible Pump represents a sophisticated solution engineered specifically for renewable energy-driven water management applications across diverse industrial, agricultural, and commercial sectors worldwide. This advanced variable frequency drive system harnesses solar photovoltaic energy to deliver precise motor control for submersible pumping operations, combining intelligent vector control algorithms with robust three-phase power management capabilities that optimize energy efficiency while maintaining consistent hydraulic performance throughout varying environmental conditions.

1. Support synchronous pump and induction pumps,AC and DC power input;
2. Fast response speed and stable operation;
3. MPPT Conversion efficiency is more than 99%, along with high reliability;
4. Digital control with full automatic running, data storage and water level monitoring;
5. Complete protective function, dry run protection, overflow protection;
6. Intelligent power module (IPM) for the main circuit with high reliability;
7. The whole water pumping systems running not relay on grid power or battery;
8. Auto dormancy/wake-up, Under-voltage restart;
9. Standard RS-485 communication interface;
10. Perfect cooling and shielding;

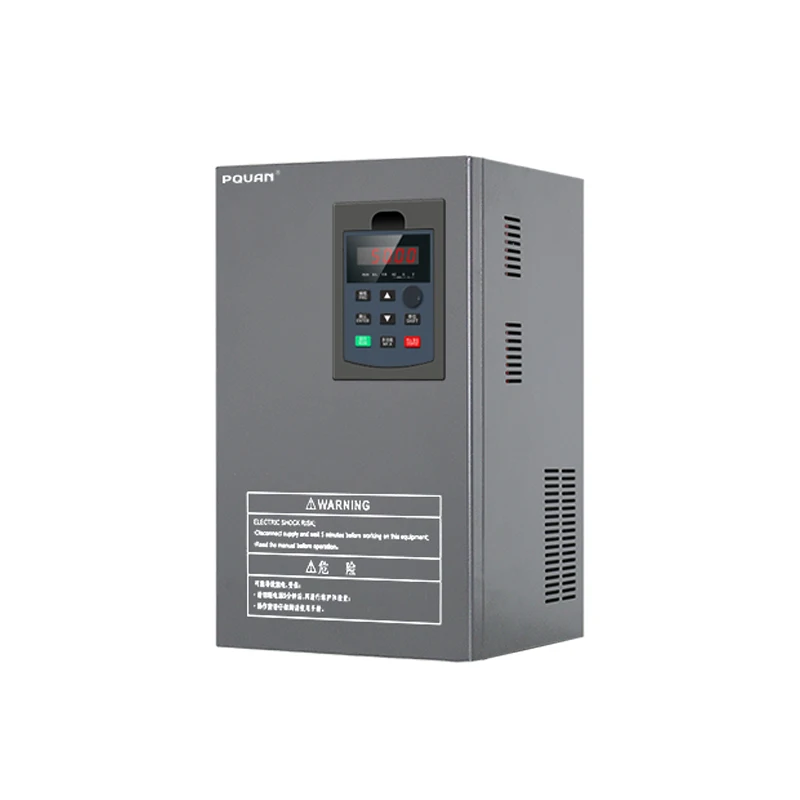

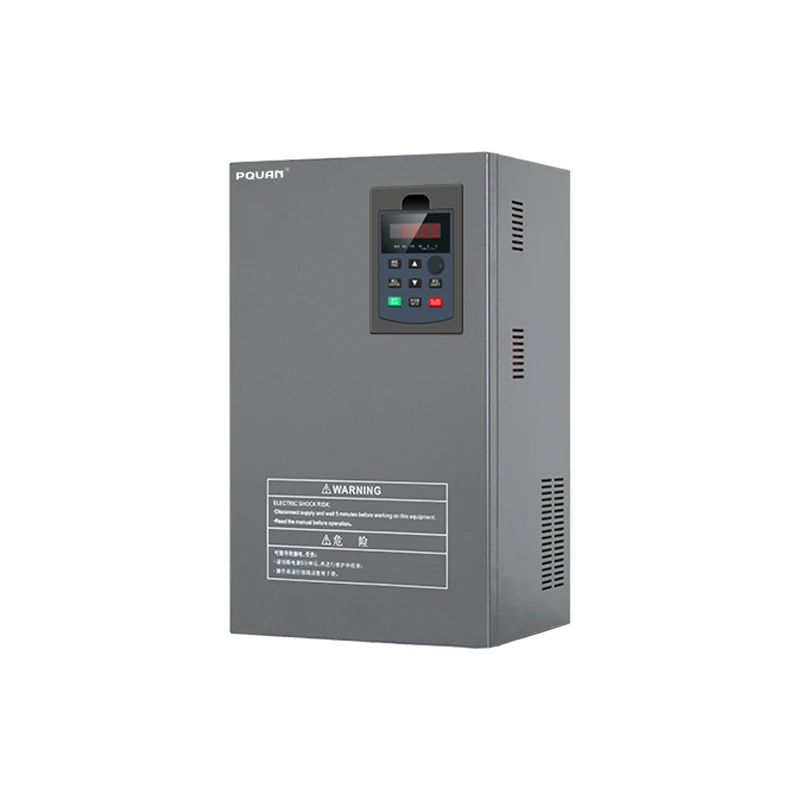

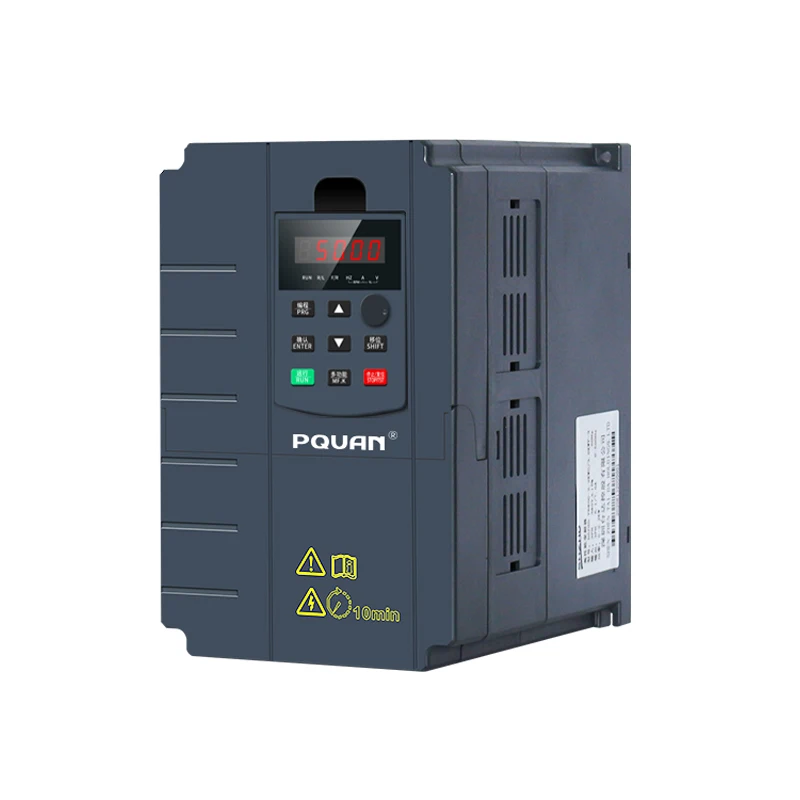

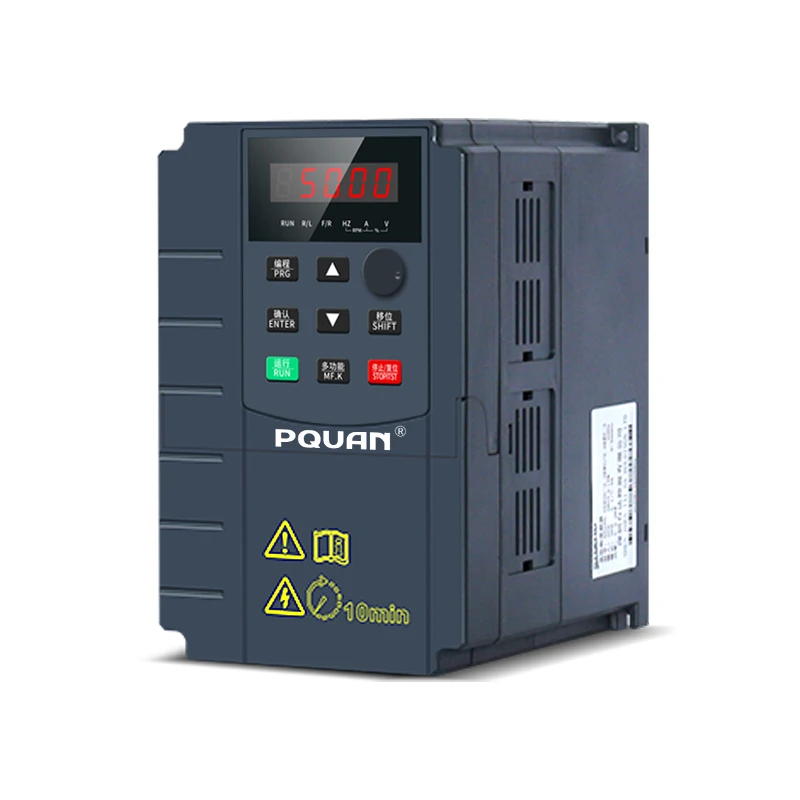

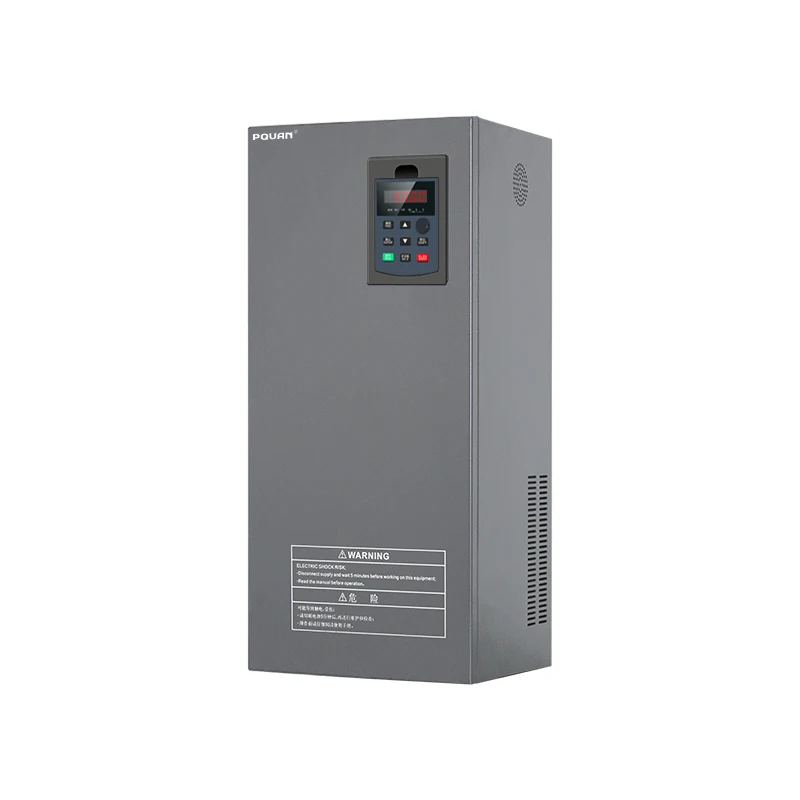

PQ580PV Solar Pump Inverter

The PQ580PV solar pump controller adopts Max Power Point Tracking and proven motor drive technology to maximize output from solar modules.

It supports both DC and AC power inputs:
1. When solar power is not available, the controller can be switched to an alternate single-phase or three-phase AC input such as
generator or inverter from battery.
2. If available, the controller provides fault detection, motor soft start and speed control.

The PQ580PV inverter is designed to proceed these features with the plug and play ease of installation.

3 Phase Solar Pump VFD 380V 0.75-4kW Vector Control for Submersible Pump manufacture

3 Phase Solar Pump VFD 380V 0.75-4kW Vector Control for Submersible Pump supplier

Water Storeage

Water storage with your solar pump system is a game-changer. It helps you manage varying water needs, particularly during seasonal shifts. And the best part? You'll have water at your fingertips even after the sun goes down, without relying on a generator or grid power.

Submersible and Surface Pumps

extensive pump selection includes both submersible pumps and surface pumps, allowing us to meet a broad spectrum of water needs.Our submersible options can lift water from depths of up to 450 meters, while our surface pumps excel at high-volume delivery, reaching flows of 60 cubic meters per hour.

3 Phase Solar Pump VFD 380V 0.75-4kW Vector Control for Submersible Pump details

Power Source

While solar power is the main energy source for PQ580PV inverter, providing ample water with a good solar installation and storage, they offer versatile power options. If needed, you can seamlessly switch to grid electricity or a generator to keep your system running.

Pump Inverter (Controller)

Acting as the system's brain, the controller oversees all operations. It processes different inputs and intelligently fine-tunes the system to deliver the highest possible water yield.

Technical Specfication

Power Range:	0.75~110kW
Output Frequency:	1~300Hz
Input Voltage Range:	DC 180~450V, AC1 OR 3-Phase 220V±15% DC 350~900V, AC 3-Phase 380V±15%
Rated Output Voltage:	3 phase 220V/380V/440V/460V
Recommended MPPT Voltage Range:	280~360VDC for 220VAC /240VAC pump with 0.75kW to 3kW; 500~600VDC for 380VAC pumps with 1.5 to 110kW
Recommended input Voltage	370Vmp DC for 220V AC 3-Phase pumps 650Vmp DC for 380V AC 3-Phase pumps
Maximum DC Power Input:	450VDC for 220VAC output; 900VDC for 380VAC output;
Motor Type:	Permanent magnet synchronous motor asynchronous motor pumps
MPPT Efficiency:	99%
Ambient Temperature Range:	-10°C~50°C> 45°C Derating as required
Solar Pump Control Special Performance:	MPPT(maximum power point tracking), CVT(constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected, etc.
25 Protection Function:	Stall protection, phase loss protection, phase short circuit protection, ground to phase short circuit protection, input and output short circuit protection, over-temperature protection, etc.
Cooling Method:	Fan Cooling
Ambient Humidity:	≤95%RH
Protection Degree:	IP20, Air force cooling
Running Mode:	MPPT or CVT
Altitude:	Below 1000m; above 1000meter, derated 10% for every additional 1000m.

Technique Features

1. Save in energy costs and maximize productivity
Solar pump inverters ensure reliable power supply throughout the day with on and off-grid compatibility

2. Save environment
Harnessing the power of sun provides an environmentally friendly pumping without producing any COS2 emissions.

3. Easy to use
Simply connect the photovoltaic panel to the VFD, no need to set any parameters, and the PV pump can be automatically started after power-on

4. Advanced MPPT algorithm
Adopts the MPPT control method, the pump's operation is automatically adjusted to achieve the maximum power generation of the system. Ensure solar power tracking efficiency can reach 99%

5. Reduce operational risk
Embedded pump-specific features such as dry run detection, minimum power input protection, maximum current protection, stop frequency running protection.

6. Flexibility
Compatible with IEC standard three-phase asynchronous induction motors
Compatible with popular PV arrays and Grid supply in option

7. Remote Monitoring
Standard RS485 interface equipped for each solar pump controller
Spots value of solar pump parameters monitoring available from anywhere
History of solar pump parameters and events lookup support.

8. Cost Effectiveness
Plug-and play system design
Embedded motor protection and pump functions.
Battery-free for most applications
Effortless maintenance

9. Reliability
10-years market proven experience of leading motor and pump drive technology
Soft start feature to prevent water hammer and increase system life
Built-in overvoltage, overload, overheat and dry-run protection.

10. Smartness
Self-adaptive maximum power point tracking technology up to 99% efficiency.
Automatic regulation of pump flow
Self-adaptation to the motor used in the installation.

Application Field:

photovoltaic frequency converter is used for water supply in remote applications where the power grid is unreliable or unavailable. The system uses a high-voltage DC power source (such as a photovoltaic array of solar panels) to pump water.

Specifications and Model

AC Input Single-Phase 200V~240; PV Input DC 180V-450V					AC OutPut 3-Phase 380±15%
Inverter Model	Power Capacity (kVA)	Input Current (A)	Output Current (A)	Adaptive Motor (kW)	Adaptive Motor (hp)
PQ580PV-R75S2	1.5	8.2	3.8	0.75	1
PQ580PV-1R5S2	3	14	7	1.5	2
PQ580PV-2R2S2	4	23	9	2.2	3

AC Input Three-Phase AC 340~440V; PV Input DC 350V-750V;					AC OutPut 3-Phase 380V±15%
Inverter Model	Power Capacity (kVA)	Input Current (A)	Output Current (A)	Adaptive Motor (kW)	Adaptive Motor (hp)
PQ580PV-R75-4	1.5	3.4	2.1	0.75	1
PQ580PV-1R5-4	3	5	3.8	1.5	2
PQ580PV-2R2-4	4	5.8	5.1	2.2	3
PQ580PV-3R0-4	4.5	9	7	3	4
PQ580PV-3R7-4	5.9	10.5	9	3.7	5
PQ580PV-5R5-4	8.9	14.6	13	5.5	7.5
PQ580PV-7R5-4	11	20.5	17	7.5	10
PQ580PV-011-4	17	26	25	11	15
PQ580PV-015-4	21	35	32	15	20
PQ580PV-018-4	24	38.5	37	18.5	25
PQ580PV-022-4	30	46.5	45	22	30
PQ580PV-030-4	40	62	60	30	40
PQ580PV-037-4	57	76	75	37	50
PQ580PV-045-4	69	92	91	45	60
PQ580PV-055-4	85	113	112	55	75
PQ580PV-075-4	114	157	150	75	100
PQ580PV-090-4	134	180	176	90	125
PQ580PV-110-4	160	214	210	110	150
